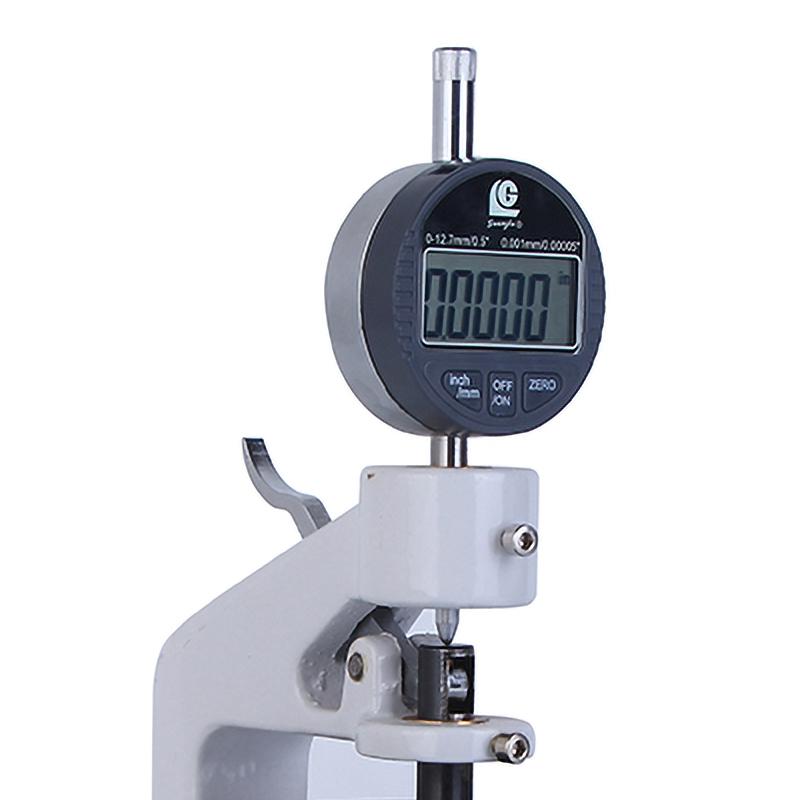

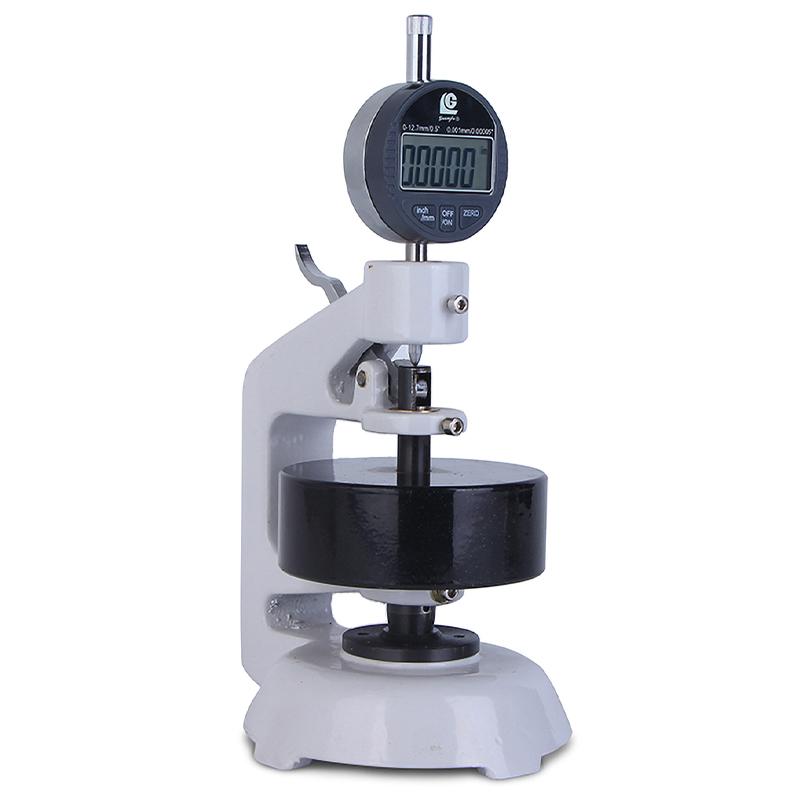

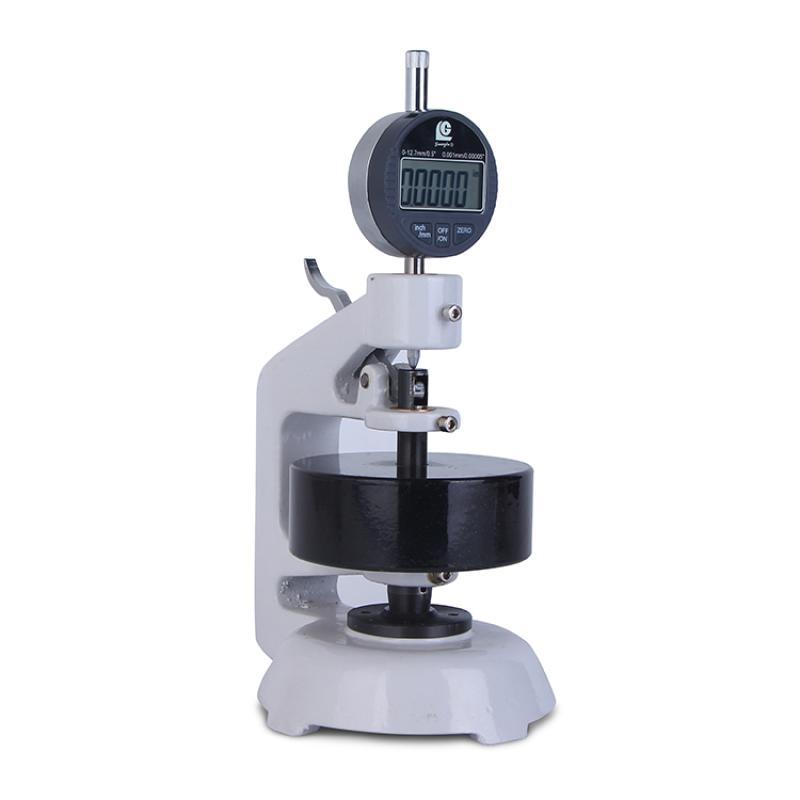

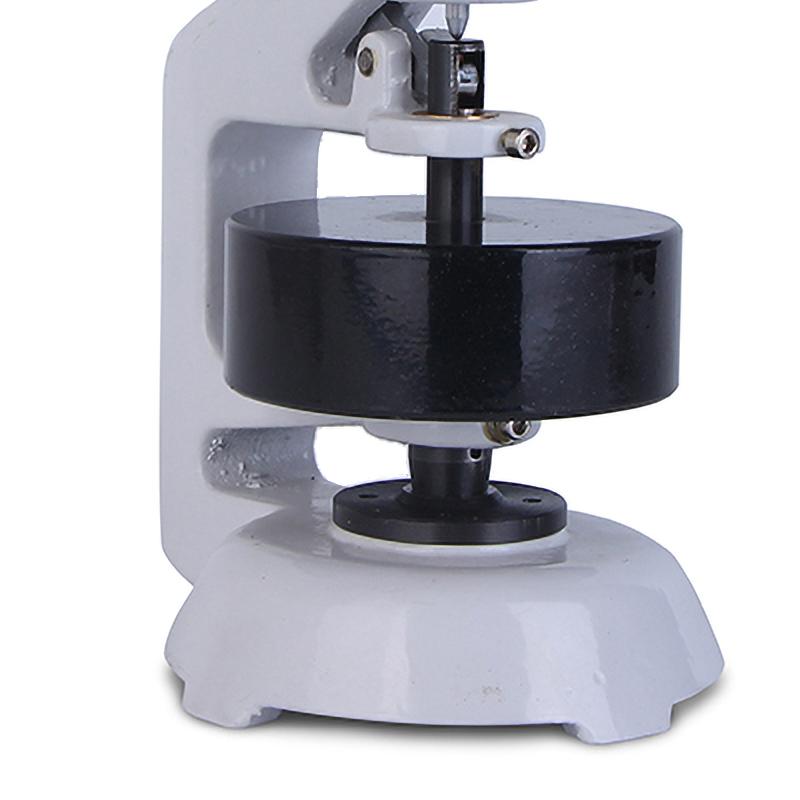

YANTE YT-H4B paper Thickness determination Gauge, contact pressure 100 +/- 10kPa

Name: YANTE YT-H4B paper Thickness determination Gauge, contact pressure 100 +/- 10kPa
Brand: YanTe
SKU: NB014934
Price: 417.0 USD
Availability: InStock

$ 417.00Ex works

Measurement range 0-4mm, contact pressure 100 +/- 10kPa, contact area 200 +/- 5mm ², with High Accuracy Indication Error +/- 0.0025mm and stable parallelism ≤ 0.002mm, suitable for a variety of material thickness detection.

Model

YT-H4B (pointer dial)

Get Quote

Category : Paperboard Thickness Gauge

Brand : YanTe

SKU : NB014934

Service :The delivery and service By NBCLab.Com

Overview

YANTE YT-H4B paper Thickness determination gauge is an instrument for measuring the thickness of paper, Cardboard and Miscellaneous sheet materials. High Accuracy measurement capability.

Features

1. Measurement range 0~ 4mm to meet various thickness requirements 2. Contact pressure 100 +/- 10kPa to ensure measurement Stability 3. Contact area of 200 +/- 5mm ², meeting standard requirements 4. Measurement surface parallelism ≤ 0.002mm to ensure Measurement accuracy 5. Indication Error +/- 0.0025mm/+/- 0.5%, reliable accuracy 6. Repeatability of indication ≤ 0.0025mm or ≤ 0.5% 7.Resolution 0.01mm, clear display

Principle

The instrument acts on the surface of the measured material through standard contact pressure, and uses the pointer dial meter to measure the distance between the upper and lower measurement surfaces, so as to accurately determine the thickness value of the material.

Applications

Paper, Cardboard, Sheet Material

Steps

1. Place the instrument on a stable bench 2. Place the measured material between the measurement surfaces 3. Apply standard contact pressure 4. Read the thickness value displayed by the pointer dial meter 5. Record measurement results

Notice

• Make sure the instrument is placed on a smooth surface before use • Maintain standard contact pressure during measurement • Avoid use in vibrating environments • Regularly check the parallelism of the measurement plane • Keep the measurement surface clean and pollution-free

Measurement Range
0-4Mm, Graduation 0.01mm
contact pressure
100±10kPa
contact area
200±5mm²
Measurement plane parallelism
≤0.002mm
Indication Error
+/- 0.0025mm or +/- 0.5%
Indication variability
≤ 0.0025Mm or ≤ 0.5%
Net Size
233*160*120mm
Net weight
5.5kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
