Overview

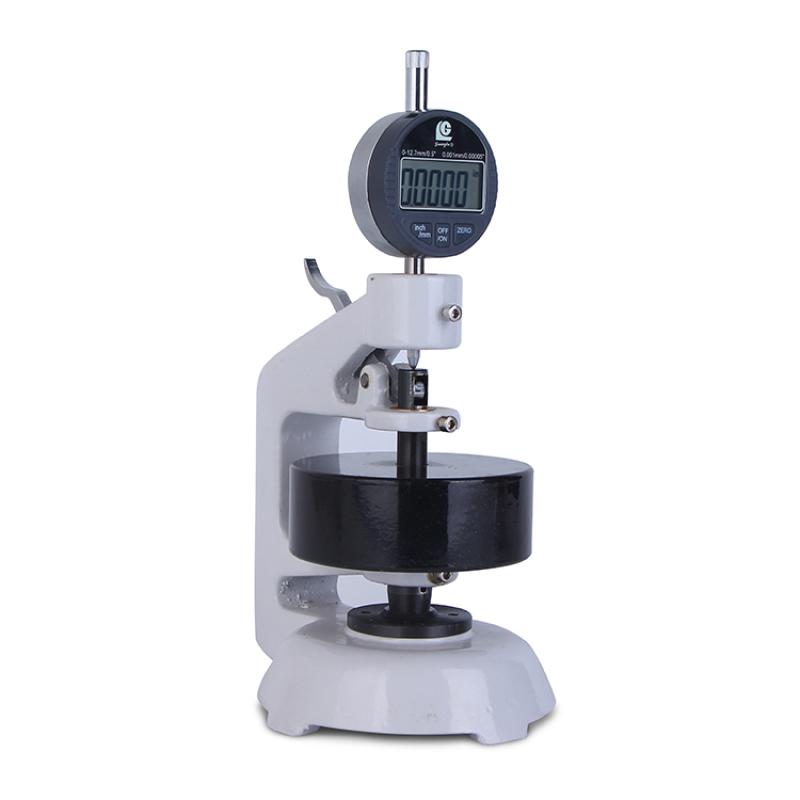

YANTE YT-H4C paper Thickness determination gauge is a special instrument for thickness measurement of paper, Cardboard and Miscellaneous sheet materials. It has High Accuracy digital display function and can be widely used in thickness measurement of various sheet materials.
Features
1. Measurement range 0~ 4mm, to meet a variety of thickness measurement needs
2. Contact pressure 100 +/- 10kPa to ensure measurement accuracy
3. Contact area of 200 +/- 5mm ², meeting standard requirements
4. Measurement surface parallelism ≤ 0.002mm to ensure Measurement accuracy
5. resolution 0.001mm, accurate display
6. Compact shape, light weight, easy to use and carry
Principle
The instrument contacts the measurement head with the surface of the measured material through standardized contact pressure and contact area, and uses a digital dial to accurately measure and display the thickness value of the material to ensure the accuracy and Reliability of the measurement results.
Applications
Paper, Cardboard, Sheet Material
Standards
Paper thickness determination standards
Steps
1. Place the instrument on a stable bench
2. Turn on the power switch and check whether the instrument display is normal.
3. Place the tested material on the measurement table
4. Adjust the measurement head to make contact with the material surface
5. Read and record the thickness values on the display
6. Power off after measurement
Notice
• Make sure the instrument is placed on a stable bench before use
• When measuring, keep the measurement surface in full contact with the surface of the measured material
• Avoid using the instrument in humid and dusty environments
• Regularly clean the measurement head to maintain Measurement accuracy
• Turn off the power supply in time after use and keep the instrument properly
