Overview

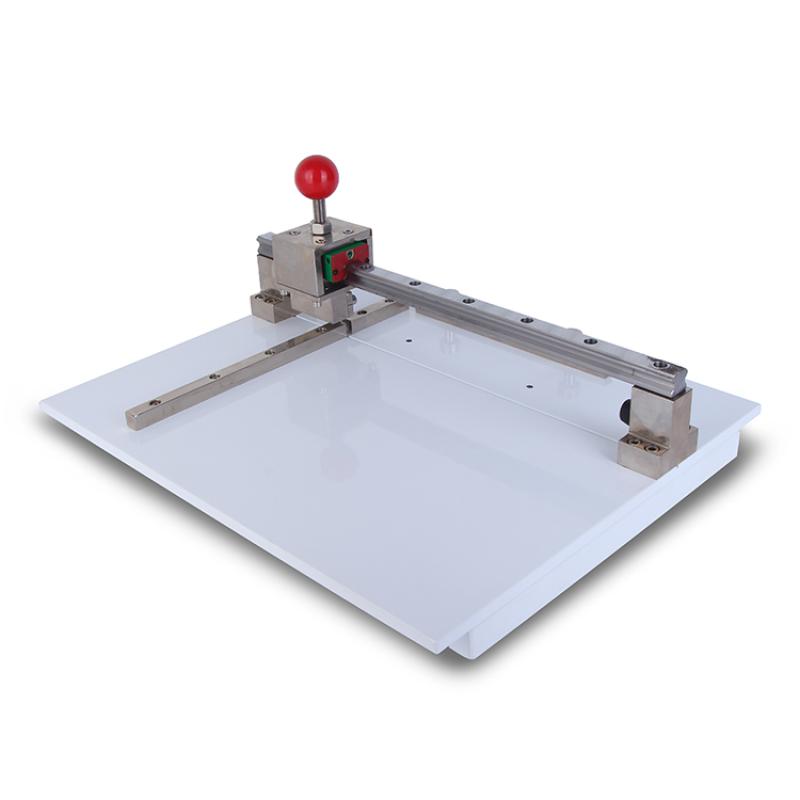

YANTE YT-BY25 Side Pressure Sampler is a special sampling instrument for Corrugated Board Edge Crush Test and adhesive strength test, which can quickly and accurately cut the specified size samples, and is suitable for Corrugated Board and carton production, scientific research and mass supervision and inspection departments.
Features
1. Accurate sampling size: 25 * 100mm, error +/- 0.5mm
2. Wide range of application: sampling thickness up to 18mm
3. Compact structure: Dimension 440 * 380 * 200mm, Net weight 20kg
4. Easy to operate: the sampling length is 280mm, which is convenient for fast sampling
Principle
Through mechanical structure design, fast cutting of Corrugated Board samples is realized to ensure that the sampling size meets the test requirements for Edge Crushing Test and adhesive strength test.
Applications
Corrugated Board production, carton production, scientific research institutions, mass supervision and inspection departments
Steps
1. Place the Corrugated Board on the Sampler Workbench
2. Adjust the sampling position
3. Start the equipment for cutting
4. Take out the 25 * 100mm sample
5. Clean the equipment for next use
Notice
• Check whether the equipment is in good condition before use
• Cardboard thickness does not exceed 18mm
• Pay attention to safety during operation and avoid hand contact with the cutting part
• Regular maintenance to maintain sampling accuracy
