JINGKELIAN QFH 6-tooth cross-cut adhesion Tester Cross Hatch Cutter meets ISO2409-1974 standard

Name: JINGKELIAN QFH 6-tooth cross-cut adhesion Tester Cross Hatch Cutter meets ISO2409-1974 standard
Brand: JingKeLian
SKU: NB001507
Price: 192.0 USD
Availability: InStock

$ 192.00Ex works

Provide 1mm, 2mm, 3mm three kinds of tooth spacing, suitable for different film thickness test, in line with ISO2409-1974 standard, 6 teeth design to ensure uniform cutting.

Model

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : JingKeLian

SKU : NB001507

Service :The delivery and service By NBCLab.Com

Overview

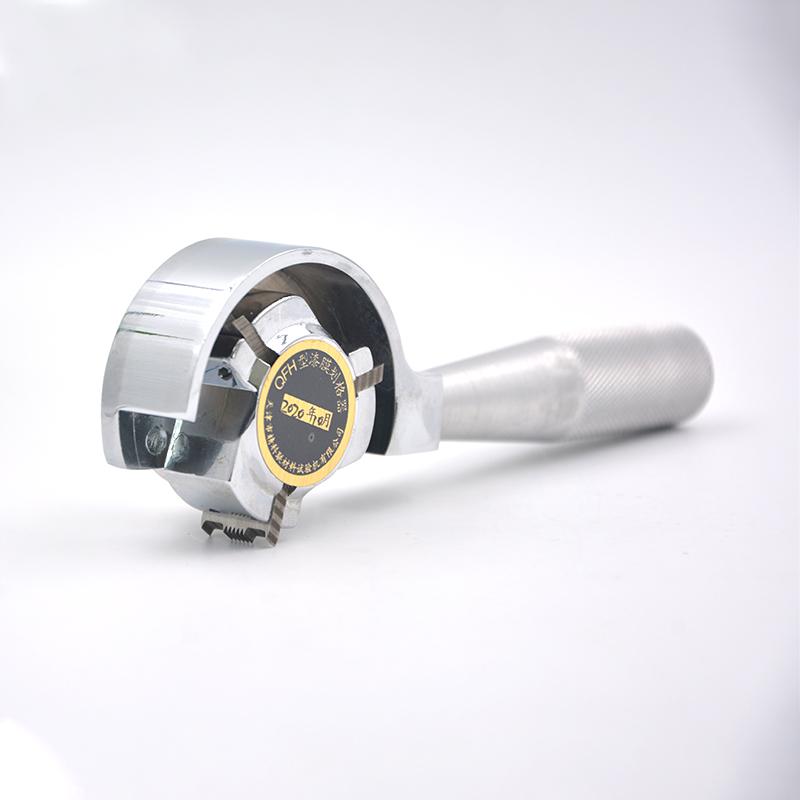

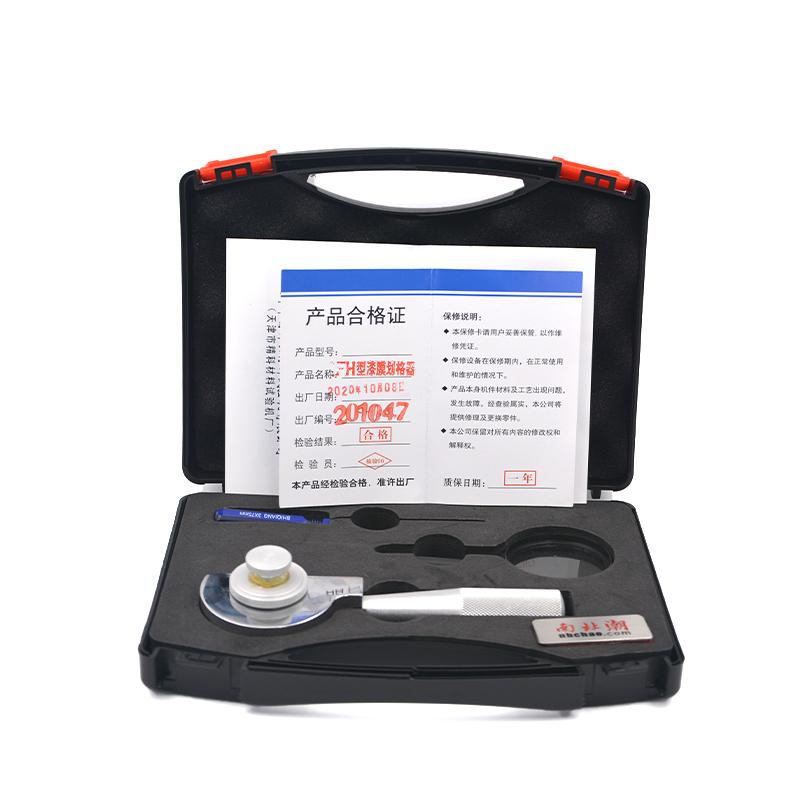

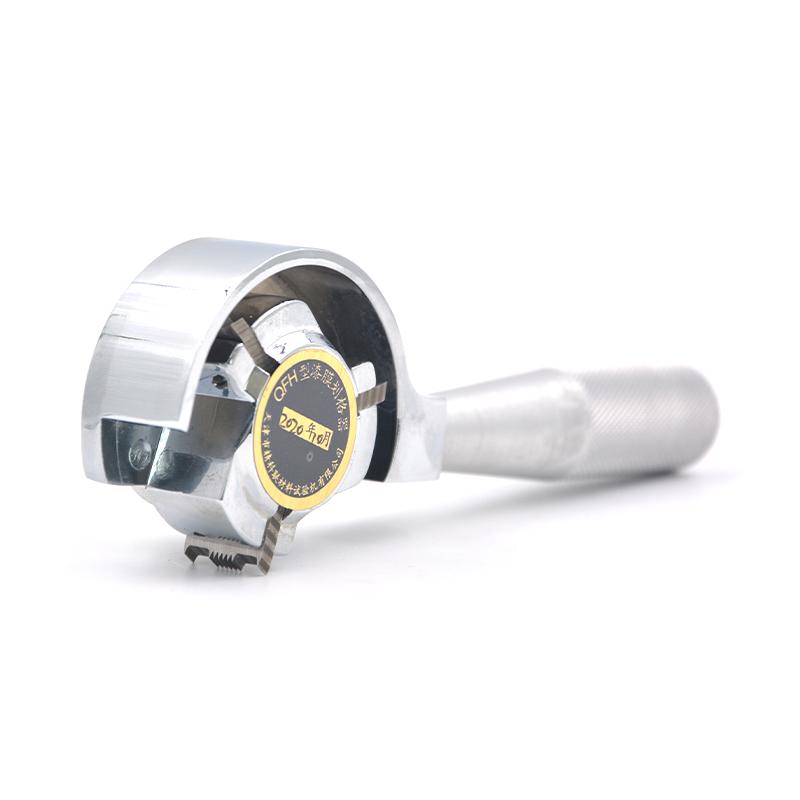

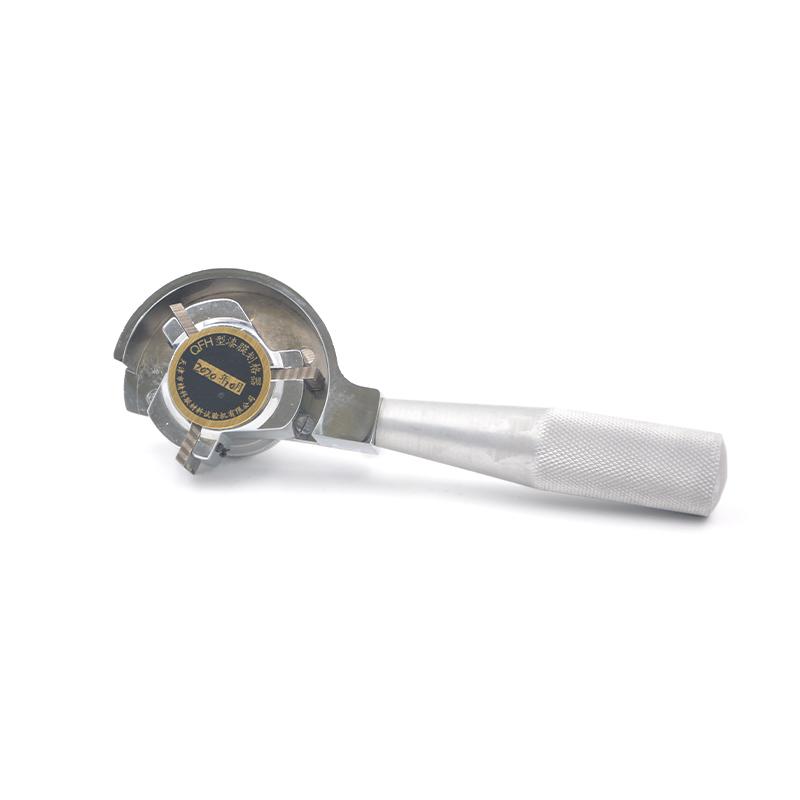

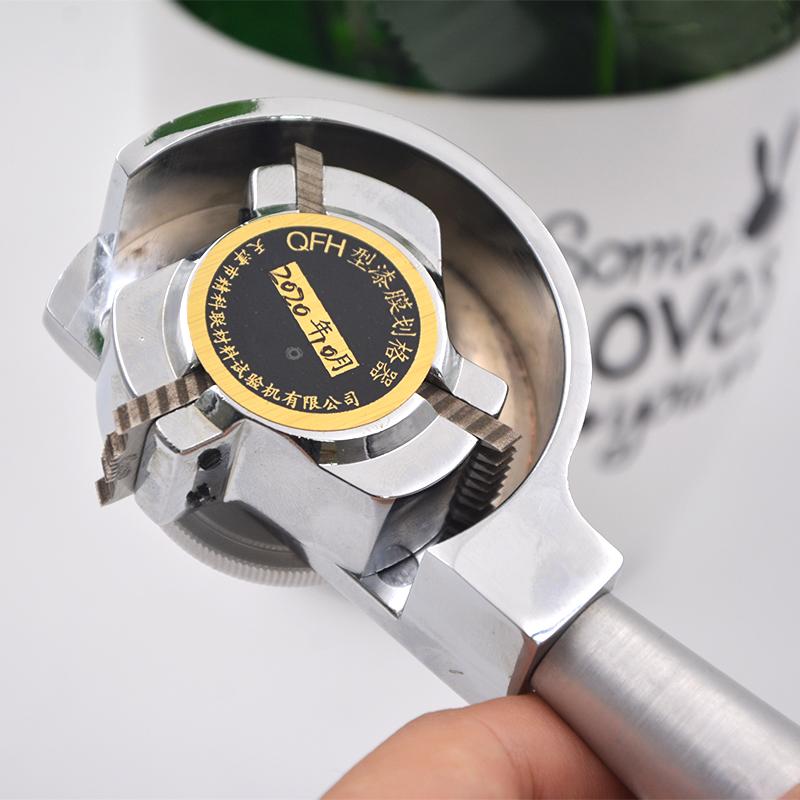

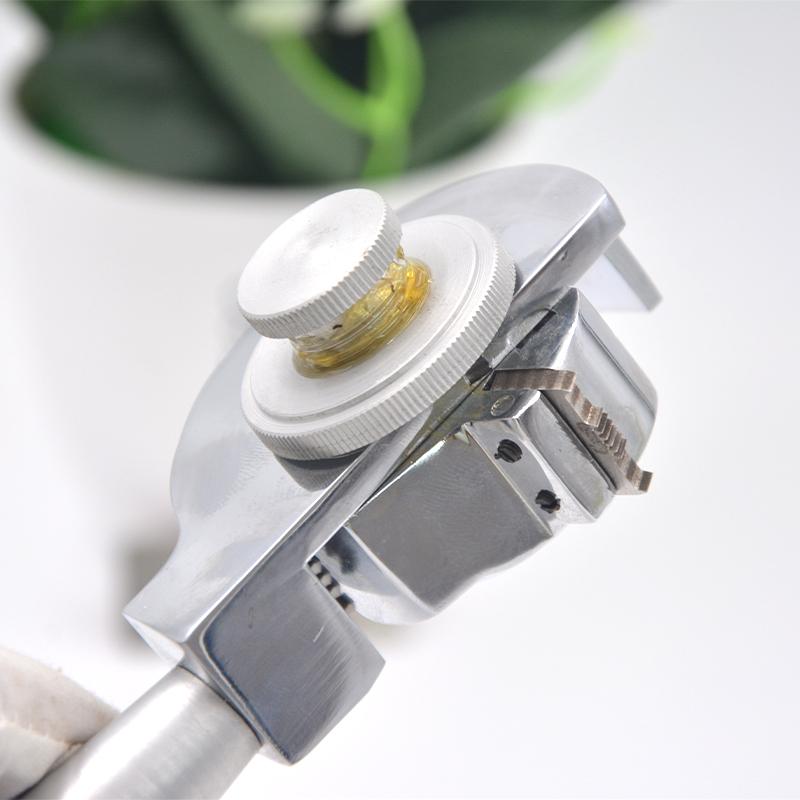

JINGKELIAN QFH 6-tooth cross-cut adhesion tester is a special Cross Hatch Cutter for coating adhesion testing in the organic coatings industry, in accordance with ISO2409-1974 standards. The instrument provides multi-edge cutting knives with 1mm, 2mm and 3mm spacing, of which 1mm spacing is suitable for test pieces with film thickness < 60um, 2mm spacing is suitable for test pieces with film thickness 60~ 120um, and 3mm spacing is designed for special purposes.

Features

1. Provide multi-edge cutting knives with three specifications spacing of 1mm, 2mm and 3mm 2. The number of teeth is 6 teeth 3. In line with ISO2409-1974 international standards 4. Suitable for testing requirements of different film thicknesses

Principle

Multi-blade cutting knife by drawing a standard spacing lattice on the coating surface, according to the lattice edge coating flaking situation to evaluate the adhesion performance between the coating and the substrate.

Applications

Laboratory, various construction sites for organic coating adhesion testing

Standards

ISO2409-1974

Steps

1. Choose the appropriate tooth spacing according to the film thickness 2. Place the test piece on a flat bench 3. Cross Hatch Cutter on the coating surface 4. Observe the flaking of the grid edge coating 5. Evaluate adhesion grade according to standard

Notice

• Make sure the cutting knife is clean and free of damage before use • Correctly select the cutter tooth spacing according to the film thickness • Keep the Cross Hatch Cutter perpendicular to the surface of the specimen during operation • Clean and maintain the instrument in time after the test • Operate on a flat and stable surface

Multi-blade cutting knife spacing
1±0.01mm、2±0.01mm、3±0.01mm
Multi-edge cutting tool tooth top straight line
Not less than 0.003mm (1 +/- 0.01mm), not less than 0.006mm (2 +/- 0.01mm, 3 +/- 0.01mm)
Multi-blade cutter working tooth width
Not less than 0.05mm
Meet the standard
ISO2409-1974
