Overview

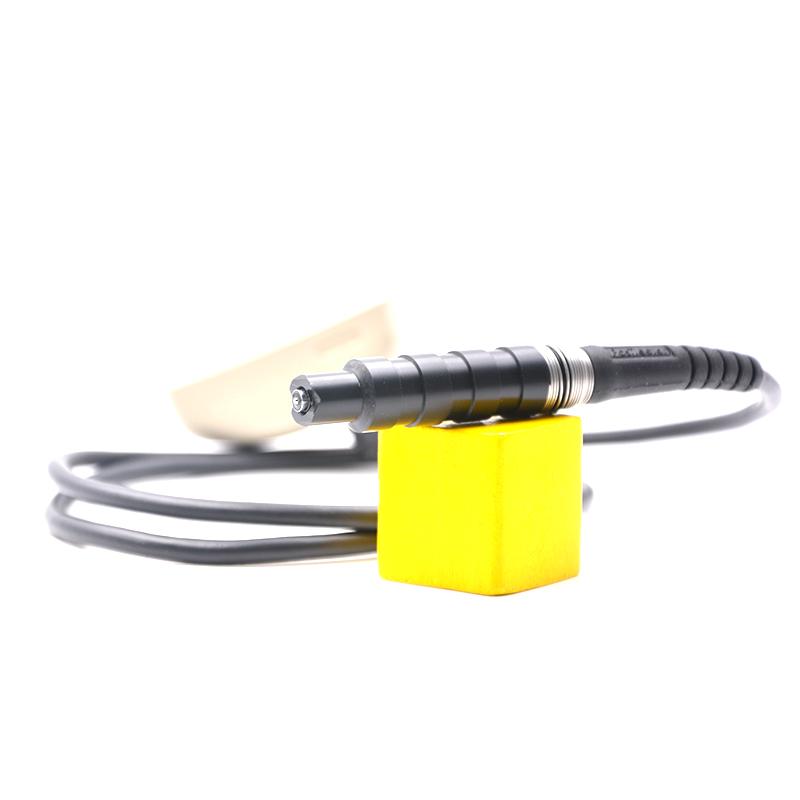

The Defelsko PRBF0S-D is a thickness gauge Probe of the F0S series designed for the measurement of small parts, hard-to-reach areas or near edges. It has the smallest measurement tip and excellent film Measurement accuracy for nonmagnetic Coating thickness measurement on ferrous substrates.
Features
1. Minimum measurement tip, suitable for small parts and narrow area measurement
2. Excellent Film Measurement accuracy for High Accuracy Results
3. Removable design for easy maintenance and replacement
4. Adapted to PosiTector host, strong compatibility
5. Provide calibrated certificate to ensure measurement Reliability
Principle
The Probe works based on the principle of magnetic Induction. By detecting the change of nonmagnetic Coating thickness on the iron substrate, the signal is transmitted to the PosiTector host for processing and display. The accuracy is calculated by the fixed value plus the percentage of the reading to ensure the measurement accuracy.
Applications
Small part measurement, hard-to-contact area measurement, edge area measurement, iron substrate Coating thickness detection
Standards
Provide calibrated certificate
Steps
1. Connect the Probe to the PosiTector host
2. Align the measurement surface to ensure Probe vertical contact
3. Read the thickness value displayed by the host
4. As needed, repeability measurements to obtain an average
Notice
• Ensure that the measurement surface is clean and free of impurities
• Avoid use in extreme temperatures or Humidity environments
Periodically calibrated to maintain accuracy
• Store properly after use to prevent damage to Probe
• Only suitable for the specified PosiTector host model
