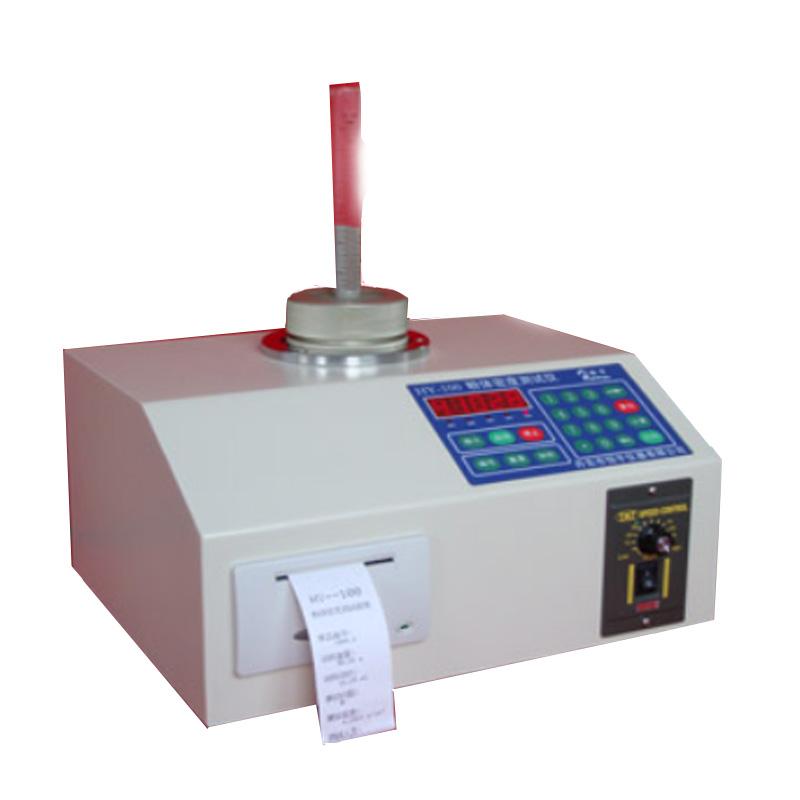

HYLOLOGY HY-100 (A) Powder Tapped Density Tester Metal Powder Tester

Name: HYLOLOGY HY-100 (A) Powder Tapped Density Tester Metal Powder Tester
Brand: hylology
SKU: NB015264
Price: 1156.0 USD
Availability: InStock

$ 1156.00Ex works

The instrument supports 0-99999 vibration frequency adjustable, vibration Frequency 0-300 rpm continuously adjustable, with self-set amplitude and automatic uniform material function, repeatability error ≤ 1%.

Model

HY-100(A)

Get Quote

Category : Densitometer

Brand : hylology

SKU : NB015264

Service :The delivery and service By NBCLab.Com

Overview

Powder density refers to the mass corresponding to the unit volume of powder. Due to the existence of voids (or pores) between particles or inside particles in the powder, the density of the powder is usually less than the true density of the corresponding substance. Tapped Density refers to the density of the powder to be contained in the container after being vibrated under specified conditions. HY-100 powder density tester is a powder density tester independently developed and manufactured according to the national standard GB/T 5162-2006/ISO3953:1993 (Determination of Tapped Density of Metal Powders) and with reference to the US Pharmacopoeia. The instrument has independent intellectual property rights. The instrument covers various indicators in the national standard GB/T 5162-2006/ISO3953:1993.

Features

1. Composed of adjustable-speed motors, vibration components, microcomputers, and micro-printers 2. Self-set amplitude, self-set vibration times 3. During the vibration process, the vibration component swirls/spins at a small angle to ensure the uniformity of the material 4. Automatically calculate and print out test results 5. Sample weight ≤ 500.00 grams, sample volume ≤ 250.00ml 6. Single vibration times 0~ 99999 times 7. When set to 0 times, the result output is "Loose Bulk Density" 8. The counting method adopts photoelectric induction 9. Vibration Frequency 0~ 300 rpm continuously adjustable 10. Vibration amplitude up to 15mm, integer 1-15mm adjustable 11. Repeatability error ≤ 1%, accuracy error ≤ 1%

Principle

Powder density refers to the mass corresponding to the unit volume of powder. Tapped Density refers to the density of the powder contained in the container after being vibrated under specified conditions. The instrument drives the vibration component through the adjustable speed motor to vibrate the powder sample under the set amplitude and vibration number, and then automatically calculates and outputs the test results.

Standards

GB/T 5162-2006, ISO3953:1993, US Pharmacopoeia

Specimen weight
≤ 500.00 g
sample Volume
≤ 250.00 ml
Number of single vibrations
0~ 99999 times, the number of vibrations can be directly input (when set to 0 times, the result output is
counting method
photoelectric induction
Motor allowable torque
0.86 N.m
result output
built-in printing function
Vibration Frequency
0~ 300 rpm (continuously adjustable)
vibration amplitude
Maximum 15mm, integer 1-15mm adjustable
repeatability error
≤1%
accuracy error
≤1%
Input power
AC 220V (50Hz/60Hz), 40W
