Overview

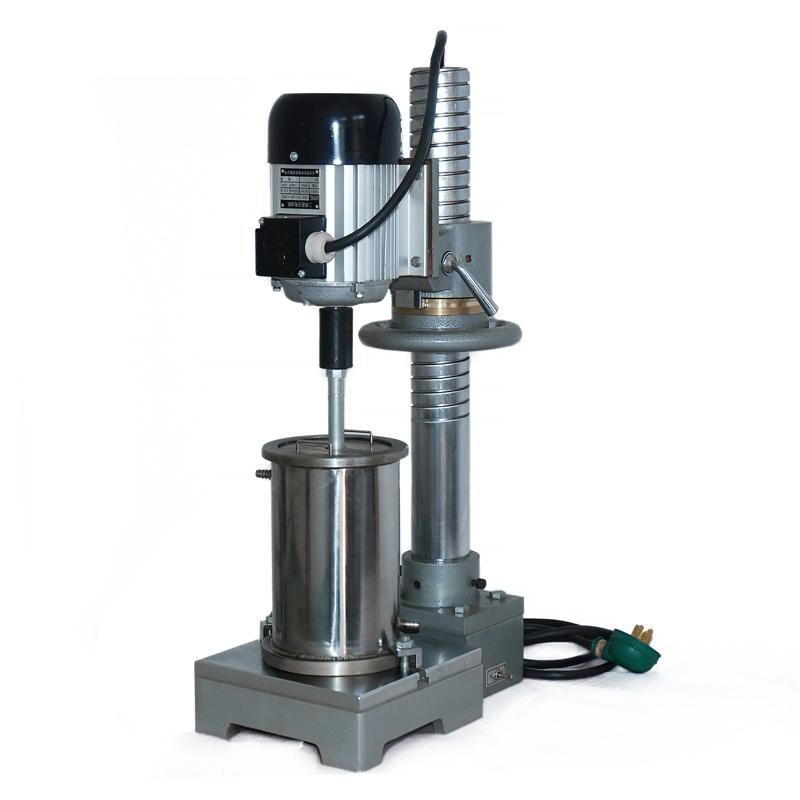

The JINGKELIAN QSM-II laboratory grinder is a specially designed grinding equipment for laboratory sample testing, capable of grinding Coating particles to a fineness of less than 25 microns. The grinder uses a motor-driven stirring component for dispersive grinding, suitable for the Coating paints industry, and can hold 1.5 liters of samples.
Features
1. Motor Power 370W, providing stable power; 2. Speed range 1400rpm, adapt to different ground needs; 3. Power supply voltage 380 volts 50 Hz, in line with industrial standards; 4. Dimension 396 * 223 * 700mm, compact and portable; 5. Grinding tank size diameter 100 * 200 mm, capacity of about 1.5 liters; 6. Agitator material is Eletroplating, durable and easy to clean.
Principle
The QSM-II sand mill drives Stirrer components to swirl/spin at a speed of 1400 rpm through an electric motor, causing sand and materials to rotate and turn rapidly in the tank. Strong tensile shear and Impact effects are produced between sand and materials, thus achieving dispersion and fine grinding of materials.
Applications
Coating paints industry
Steps
1. Prepare the grinding medium, such as 2~ 4.5 mm tempered Glass ball; 2. Load the material into the grinding tank, the capacity does not exceed 1.5 liters; 3. Start the motor and adjust the Rotation speed to the required range; 4. Run the sand mill for grinding; 5. Turn off the motor after finishing the grinding and take out the sample.
Notice
• Grinding medium needs to be brought by yourself, 2~ 4.5mm tempered Glass ball is recommended; • Power supply voltage is 380 volts 50 Hz to avoid voltage mismatch; • Pay attention to safety during operation to avoid high-speed swirling/spinning parts contact; • Regularly check the abrasion of the Stirrer and grinding tank; • Power off operation when cleaning equipment to prevent the risk of electric shock.
