Overview

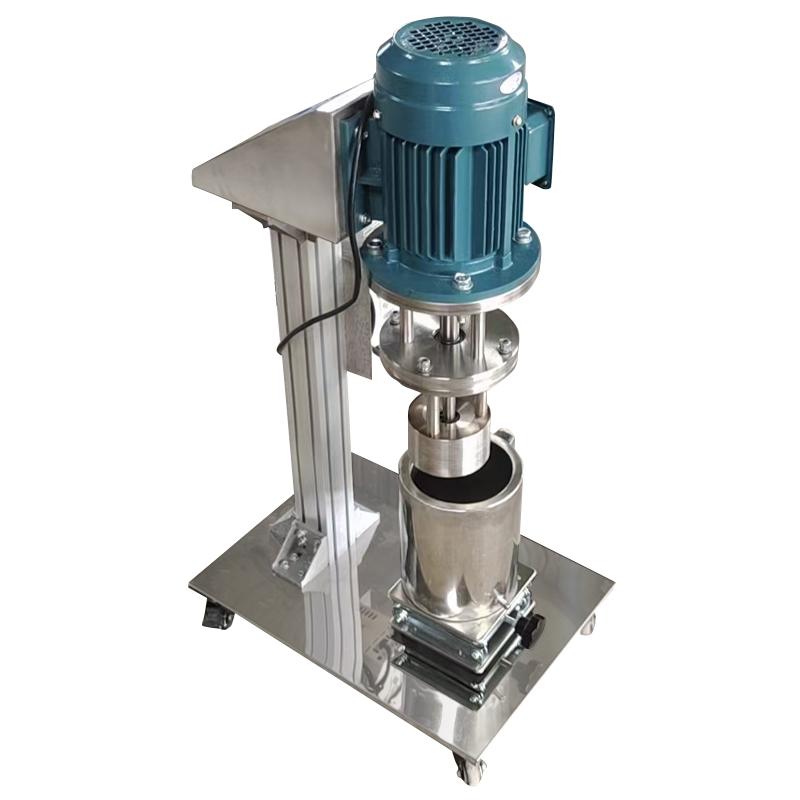

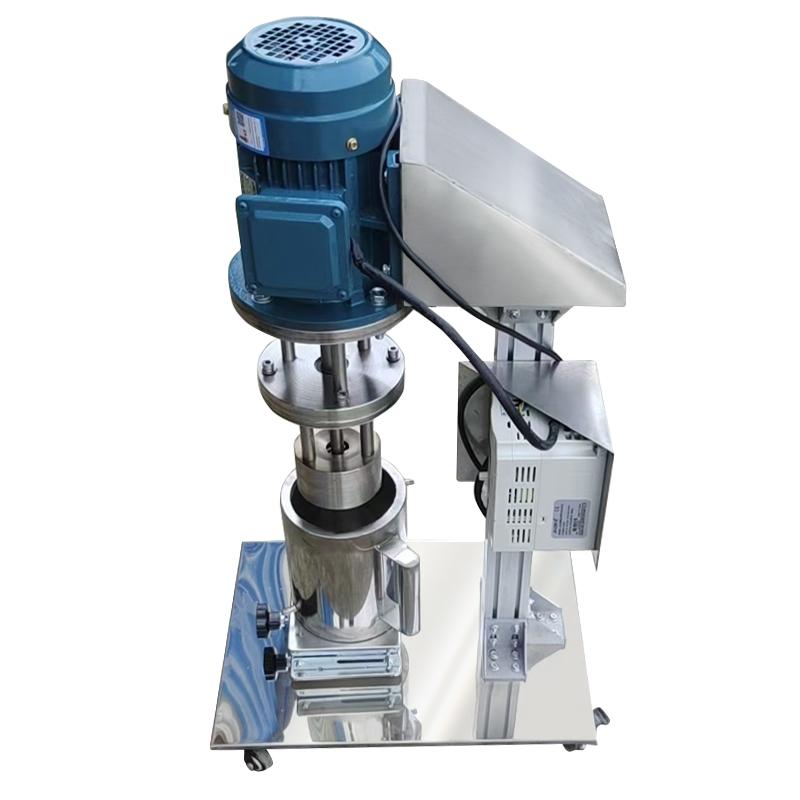

The laboratory manual lift basket sand mill is an economical wet dispersion grinding equipment, suitable for scientific research institutions and enterprises and institutions. The equipment can operate stably for a long time, with low noise, and complete two production processes of dispersion and grinding at the same time, effectively reducing the fineness of medium and low viscosity materials in a short time.
Features
1. High grinding efficiency, good product fineness: the highest Rotation speed 3000rpm, fineness of grinding generally up to 10um or less, liquid-liquid dispersion grinding up to sub-micron or even nano level; separation plate using whole CNC numerical control processing, long life without clogging.
2. Easy to operate, easy to clean: comes with inverter control start and speed; configuration manual or electric lifting device; grinding cavity unique design, direct solvent circulation cleaning; stainless steel design of the whole machine, easy to clean; can be set to grind time timing shutdown.
3. Small temperature rise, stable product: Mixing Tank with double-decked chill down jacket, mirror polishing treatment; water chilled down during operation, conventional temperature rise is less than 10 °; multiple barrels can be customized for easy use.
4. Strong non-standard: lifting form can be customized manual or electric; non-standard customized explosion-proof type; material contact parts can be made of SS304 or SS316L material; support high temperature, high voltage, flammable, explosive, corrosion and other working conditions customization.
Principle
When the motor is running, the dial rod and dispersion disc are driven to swirl/spin at high speed, so that the negative pressure is generated in the ground body, which prompts the material to be forcibly sucked into the ground cavity, and the high-density zirconia beads continue to collide and rub, so that the material particle size becomes smaller and the fineness is reduced.
Applications
Interior-wall latex paint, industrial paint, wood paint, various colorants, water-based oily inks, pesticide suspensions
