Overview

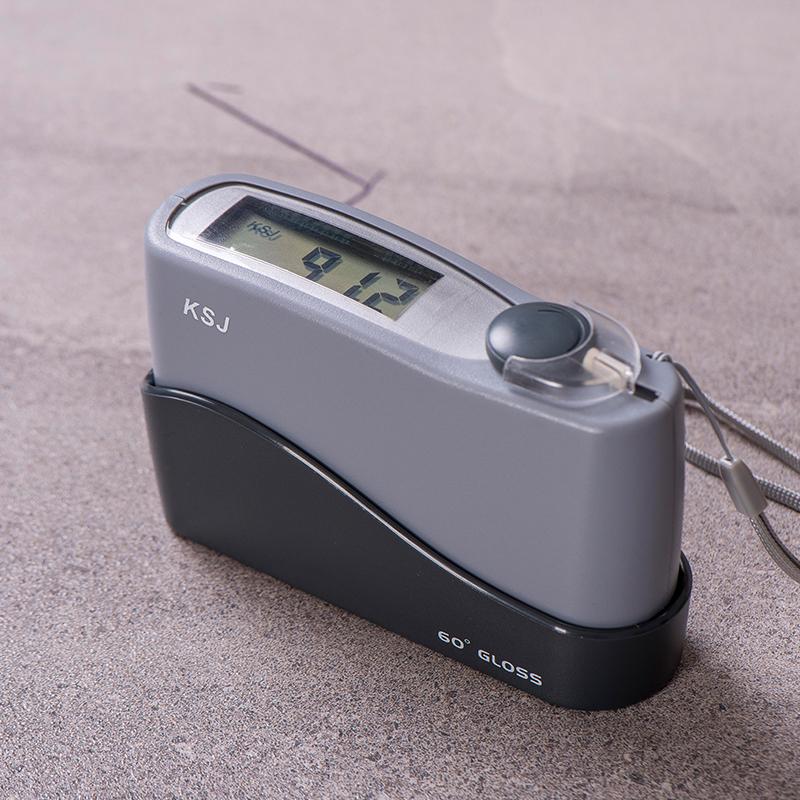

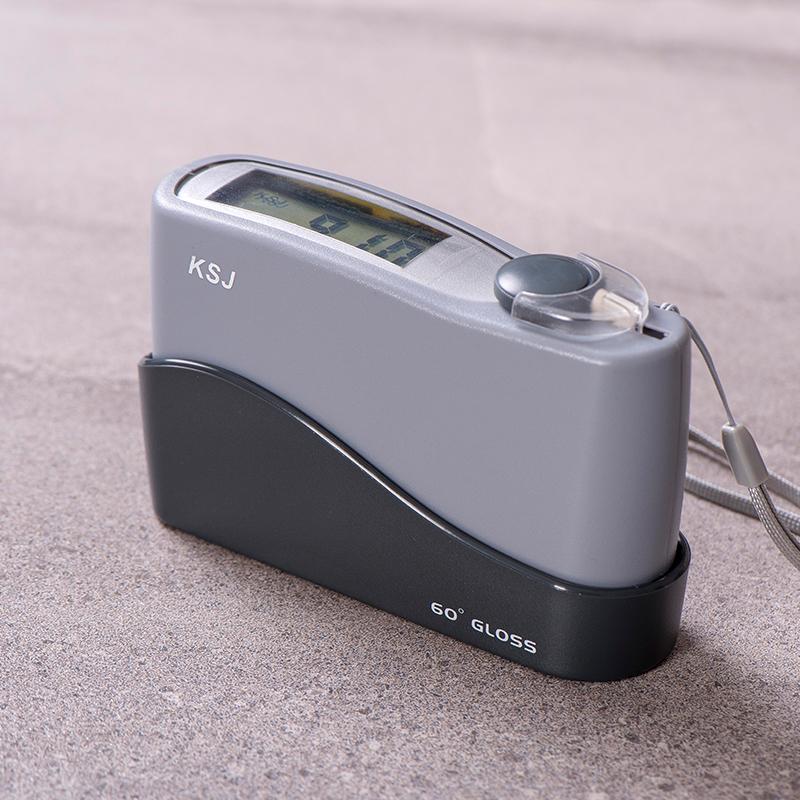

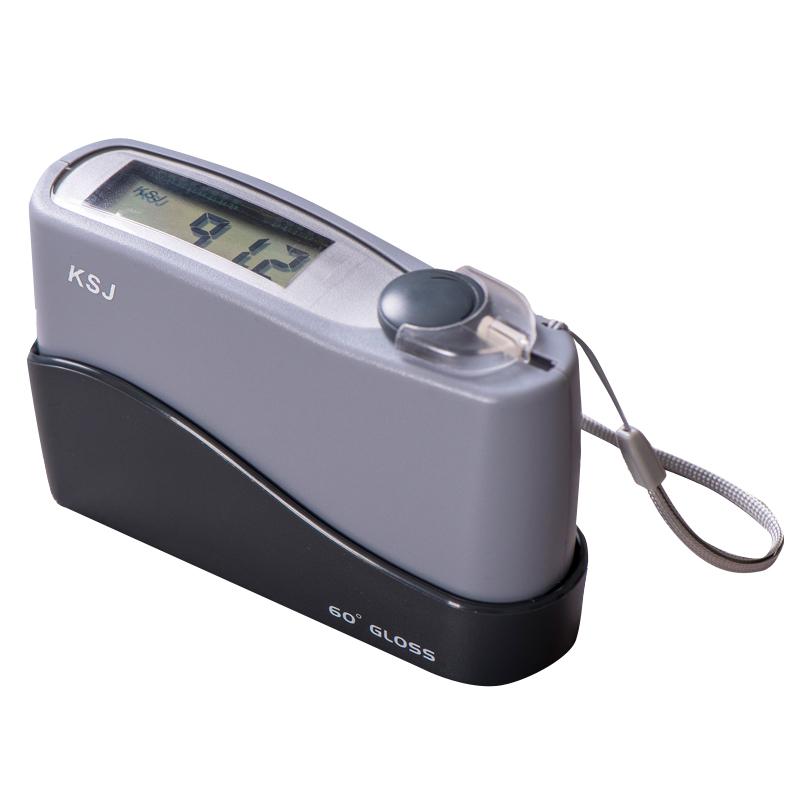

The KSJ MG6-F1 Gloss Meter is a Portable Gloss measurement device. It is powered by a single AA alkaline battery or a rechargeable battery. It is designed to last for more than 58 hours with low energy consumption. The whole set of instruments is designed in one piece, ready to use when turned on, easy to carry, with adjustment button protective cover and anti-scratch coating of the measuring port. It is small in size, beautiful in appearance, stable in performance and easy to use.
Features
1. Low energy consumption: A single No. 5 alkaline battery can last for more than 58 hours.
2. Integrated design: The whole set of instruments is designed in one piece, ready to use and easy to carry.
3. Protective design: special adjustment button protective cover, operation is more assured; anti-scratch coating treatment of the measuring port to prevent scratching the tested object.
4. Portable and stable: Small size, Beautiful Appearance, Stable performance, Easy to use.
Principle
The Gloss Meter is based on 60 ° Measurement Angles and measures the Glossiness of the surface of the material through the Optical inspection system. Measurement range is 0~ 199.9GU, Graduation 0.1GU, to ensure that the Gloss characteristics of the surface of coating materials, building decoration materials and other surfaces are accurately reflected.
Applications
Gloss measurement on the surface of paints, paints, coatings, inks and other coated materials, Gloss measurement on the surface of building decoration materials such as Stone, tiles, profiles, etc. Gloss measurement on the surface of paper, bamboo, wood, plastic, film, etc. Gloss measurement on the surface of other materials
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Steps
1. Install a single AA alkaline battery or rechargeable battery.
2. The instrument can be used for measurement when turned on.
Notice
Make sure the battery is fully charged before use to ensure long-term operation.
• Pay attention to the adjustment button protective cover when operating to avoid accidental touch.
• Handle the measuring port carefully during measurement to prevent scratching the surface of the tested object.
• Operating Time may vary depending on battery type, with alkaline batteries lasting more than 58 hours.
