Overview

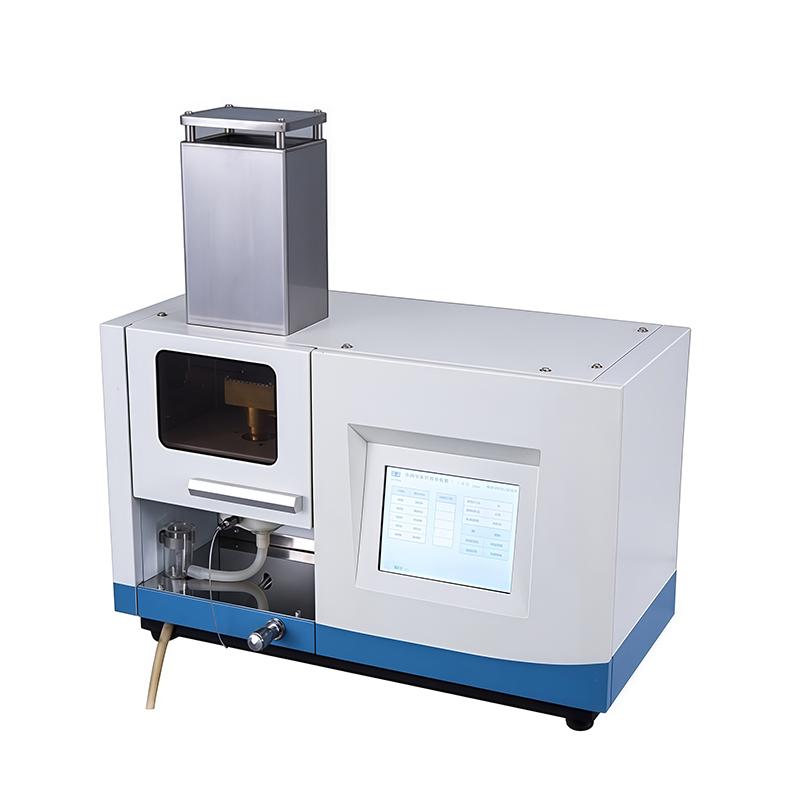

The YUE FENG FSP6631 flame spectrophotometer is a precision instrument with concave Holographic grating design. It has the characteristics of pure and accurate Light spectrum. It supports direct reading measurement with any combination of five elements. It is equipped with a 5.6-inch color Touchscreen and automatic ignition function to ensure convenient and safe operation.
Features
1. Concave Holographic grating design is adopted for the first time in the industry. Light spectrum is pure and accurate, with narrow passband, high Sensitivity and better linearity.
2. Five elements can be selected in any combination while direct reading measurement, only software selection, flexible and convenient.
3. Similar to the atomic absorption design, it is magnificent, small and delicate.
4. Imported Photocells, photovoltaic cells receive element signals, stable and reliable performance.
5. With an internal standard channel, it is corrected with a signal that does not contain measurement elements, and the measurement is synchronized with the elements. The internal standard correction is designed to be optional and can be freely selected according to the situation.
6. Adopt 5.6-inch color 640 × 480 display screen and supporting Touchscreen, interface graphics, measurement flow, abundant information, easy access, and harmonious human-machine integration.
7. Adopt automatic ignition, including flame monitoring, with flameout protection and alarm to ensure safety.
8. Switching power supply, light weight, small size, low heat generation, small impact of external power supply, energy saving and environmental protection.
Principle
Based on the principle of 1200 concave Holographic grating, the flame spectrophotometer realizes pure and accurate measurement of Light spectrum through grating spectroscopy, and uses Linear dispersion fitting method for Linear dispersion calibration to ensure the accuracy of measurement data.
Applications
Elemental analysis, chemical testing, laboratory measurement
Standards
Stability Standard: Relative Maximum Change of Instrument indication within 15S ≤ 2%, Response Time Standard: < 8S
Steps
1. Turn on the instrument power.
2. Select the combination of elements to be measured through the software.
3. Use the automatic ignition function to start the flame.
4. Sample measurement, the instrument automatically displays the results.
5. Connect the printer to output data through the USB port.
Notice
• Ensure that the Ambient Temperature operates within the range of 10~ 35 ° C.
• Check the flame monitoring function before use to ensure that the flameout protection and alarm are normal.
• Avoid external power fluctuations affecting instrument performance.
• Periodically calibrate instruments to maintain Measurement accuracy.
