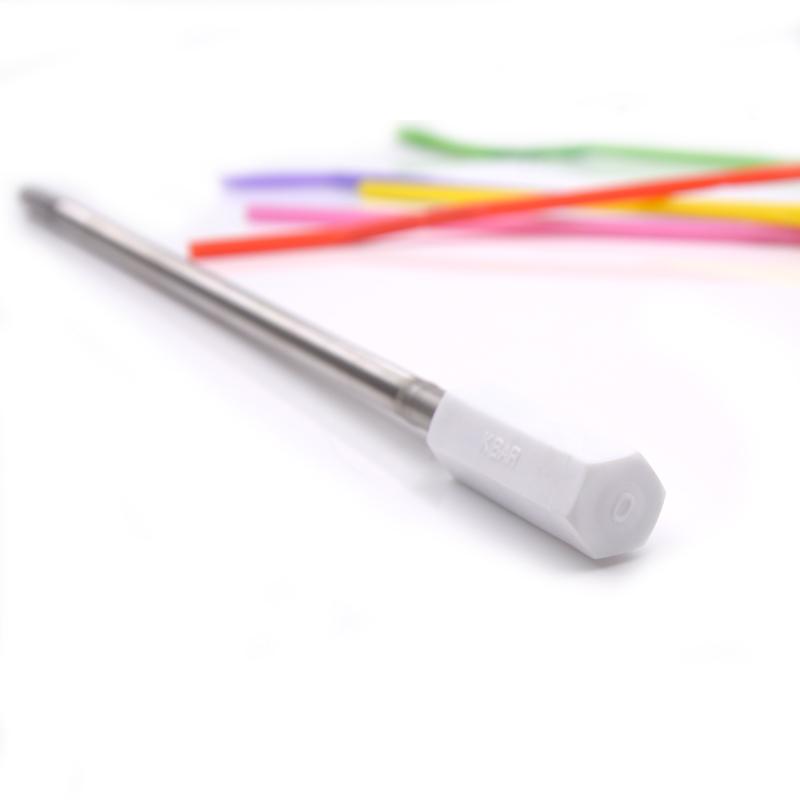

RK K202.10.0 bar stainless steel wire-wound coating Rod wet film thickness 4μm

Name: RK K202.10.0 bar stainless steel wire-wound coating Rod wet film thickness 4μm
Brand: RK
SKU: NB018140
Price: 194.0 USD
Availability: PreOrder

$ 194.00Ex works

Precision drawing stainless steel wire winding manufacturing, groove control wet film thickness accurate, repeatability, closed winding Spreader thickness of 4 to 120 μ m, spiral winding up to 500 μ m, diaMeter 9.5mm total length 570mm.

Model

K202.10.0

Get Quote

Category : Coating Rod

Brand : RK

SKU : NB018140

Service :The delivery and service By NBCLab.Com

Overview

RK bar model K202.10.0 is used for surface coatings with Spreader precision, repeatability on most substrates. Accurate control of wet film thickness through the size of these grooves is formed by wrapping precision drawn stainless steel wire onto a stainless steel rod to form a pattern with grooves of the same shape. Closed winding bar Spreader 4 to 120μm Coating thickness, spiral winding bar Spreader higher thickness coatings up to 500μm. UK RK Coater K202 Spreader area is 325x250mm, this Coater bar is dedicated to KPA Coater use.

Features

1. Precise control of wet film thickness 2. Surface coatings, repeability 3. Suitable for most substrates 4. Closed winding rod Spreader range 4-120μm 5. Spiral Wrapped Rod Spreaders Up to 500μm Thickness

Principle

By precision drawing stainless steel wire wound onto the stainless steel rod to form a pattern having the same shape of the groove, the groove size by accurately controlling the wet film thickness, to achieve accurate, repeatability of the surface coating.

Applications

Spreader for surface coating

Steps

1. Install bar to KPA Coater 2. Set Required Spreader Thickness 3. Spreader operation on the substrate 4. Clean and maintain after Spreader

Notice

• Dedicated to KPA Coaters • The application width is 365mm • Spreader area is 325x250mm • It should be cleaned and maintained in time after use

Production process
wire-wound
wet film thickness
4μm
rod diameter
9.5mm
Total length
570mm
wire diameter
0.05mm
application width
365mm
material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
