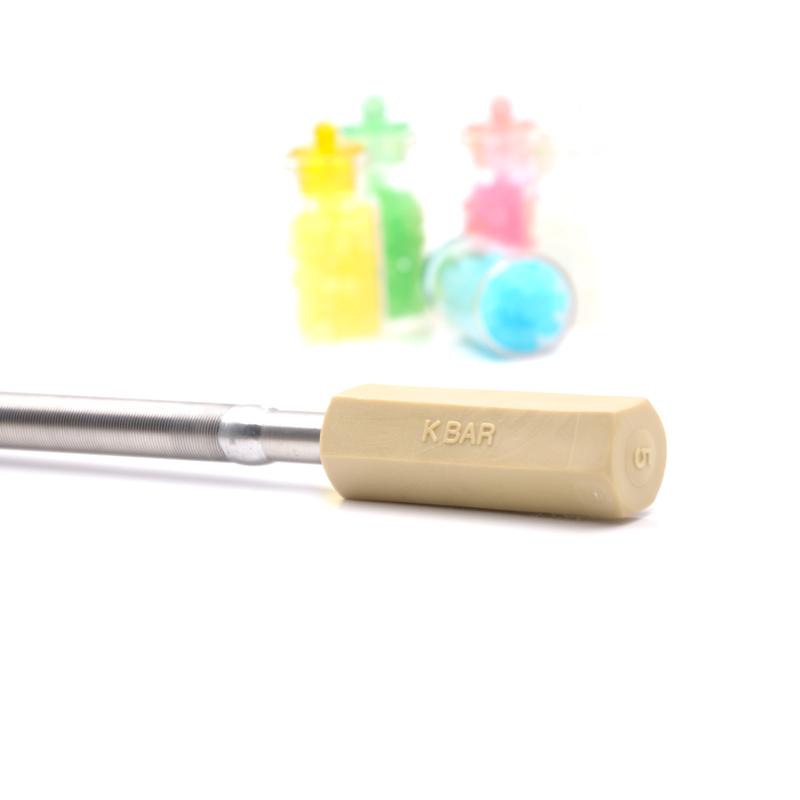

RK K202.10.5 bar KPA Coater special wet film thickness 50μm

Name: RK K202.10.5 bar KPA Coater special wet film thickness 50μm
Brand: RK
SKU: NB018144
Price: 181.0 USD
Availability: PreOrder

$ 181.00Ex works

Precision drawing stainless steel wire winding manufacturing, groove shape consistent, wet film thickness 50μm, application width 365mm, repeability Spreader surface coating.

Model

K202.10.5

Get Quote

Category : Coating Rod

Brand : RK

SKU : NB018144

Service :The delivery and service By NBCLab.Com

Overview

RK bar model K202.10.5 is used for surface coatings with Spreader precision, repeatability on most substrates. By wrapping precision drawn stainless steel wire onto the stainless steel rod to form a pattern with grooves of the same shape, the wet film thickness is accurately controlled by the size of these grooves. The closed winding bar can Spreader 4 to 120μm Coating thickness and the spiral winding bar can Spreader higher thickness coatings up to 500μm. The UK RK Coater K202 Spreader has an area of 325x250mm. This bar is dedicated to KPA Coater use.

Features

1. Precise control of wet film thickness 2. Surface coatings, repeability 3. Closed winding rod Spreader thickness range 4-120μm 4. Spiral Wrapped Rod Spreaders Up to 500μm Thickness 5. Dedicated to KPA Coater

Principle

By precision drawing stainless steel wire wound onto the stainless steel rod to form a pattern having the same shape of the groove, the groove size by accurately controlling the wet film thickness, to achieve accurate, repeatability of the surface coating.

Specifications

Production process: wide-wound, wet film thickness: 50μm, diameter: 9.5mm, total length: 570mm, wire diameter: 0.64mm, application width: 365mm, material: stainless steel

Production process
wire-wound
wet film thickness
50μm
rod diameter
9.5mm
Total length
570mm
wire diameter
0.64mm
application width
365mm
material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
