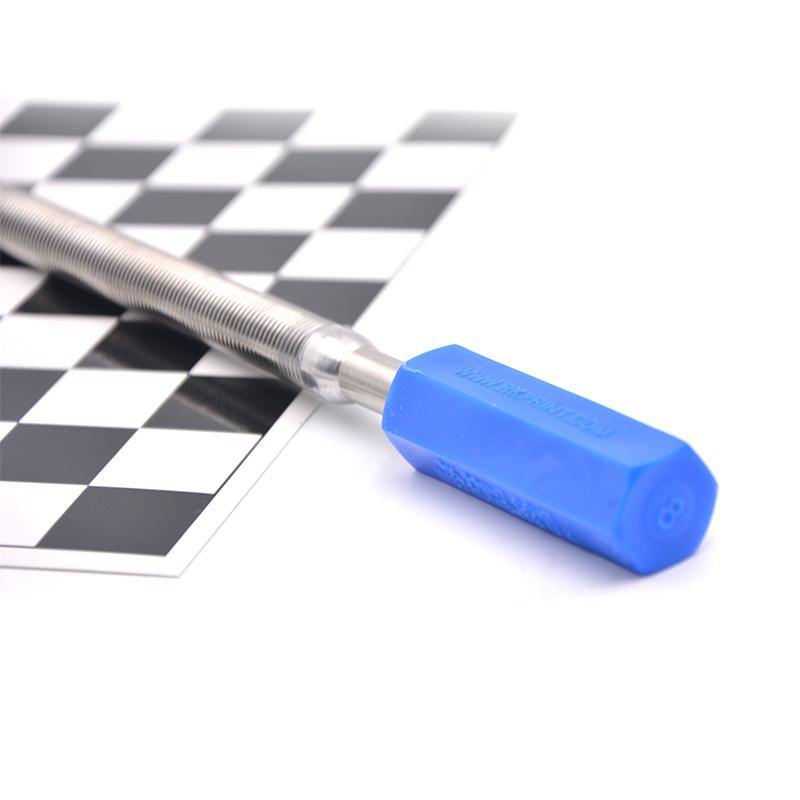

RK K202.10.8 bar stainless steel wire-wound wet film thickness 100μm

Name: RK K202.10.8 bar stainless steel wire-wound wet film thickness 100μm
Brand: RK
SKU: NB018147
Price: 181.0 USD
Availability: PreOrder

$ 181.00Ex works

Coating thickness is controlled by wire-wound process, wet film thickness reaches 100μm, application width 365mm, uniform groove is formed by precision stainless steel wire winding to achieve accurate Spreader.

Model

K202.10.8

Get Quote

Category : Coating Rod

Brand : RK

SKU : NB018147

Service :The delivery and service By NBCLab.Com

Overview

RK bar model K202.10.8 is used for surface coatings of Spreader precision, repeatability on most substrates. Accurate control of wet film thickness through the size of these grooves is formed by wrapping precision drawn stainless steel wire onto a stainless steel rod to form a pattern with grooves of the same shape. The UK RK Coater K202 Spreader has an area of 325x250mm and is dedicated to KPA Coaters.

Features

1. Spreader accuracy, repeability 2. Accurate wet film thickness control 3. Closed Winding Rod Spreader 4 to 120μm Coating thickness 4. Spiral wound bar Spreaders higher thickness coatings up to 500μm 5. Dedicated to KPA Coater

Principle

By wrapping precision drawn stainless steel wire onto a stainless steel rod to create a bar, a pattern with grooves of the same shape is formed, and the wet film thickness is accurately controlled by the size of these grooves.

Specifications

Production process: wide-wound, wet film thickness: 100μm, diameter: 9.5mm, total length: 570mm, wire diameter: 1.27mm, application width: 365mm, material: stainless steel

Production process
wire-wound
wet film thickness
100μm
rod diameter
9.5mm
Total length
570mm
wire diameter
1.27mm
application width
365mm
material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
