RK K303.10.8 bar stainless steel wire-wound coating Rod wet film thickness 100μm

Name: RK K303.10.8 bar stainless steel wire-wound coating Rod wet film thickness 100μm
Brand: RK
SKU: NB018150
Price: 197.0 USD
Availability: PreOrder

$ 197.00Ex works

Coating thickness is controlled by wire-wound structure, wet film thickness reaches 100μm, application width 420mm, uniform groove is formed by precision stainless steel wire winding to achieve repeability Spreader effect.

Model

K303.10.8

Get Quote

Category : Coating Rod

Brand : RK

SKU : NB018150

Service :The delivery and service By NBCLab.Com

Overview

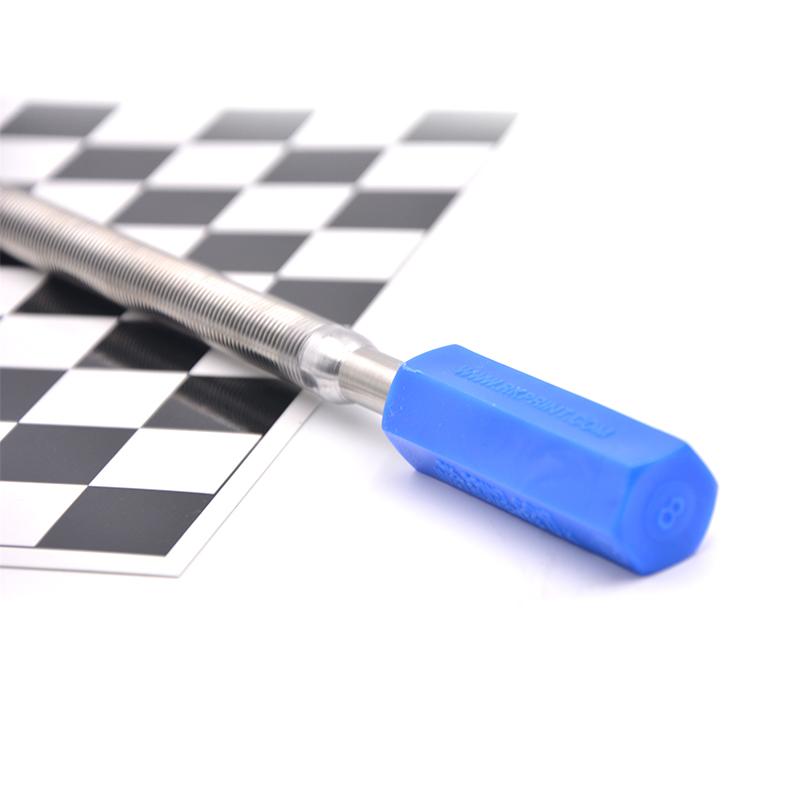

RK bar model K303.10.8 is used for Spreader's precise, repeatability surface coatings on most substrates. It is wound to the stainless steel rod by precision drawing stainless steel wire to form a pattern with grooves of the same shape, and accurately controls the wet film thickness. The closed winding bar can Spreader 4 to 120μm Coating thickness, and the spiral winding bar can Spreader higher thickness coatings up to 500μm. The bar is dedicated to the UK RK K303 Coater with a Spreader area of 700x420mm.

Features

1. Made of precision drawn stainless steel wire winding to ensure coating accuracy, repeatability 2. Accurate control of wet film thickness by groove size 3. Closed winding design Spreader 4-120μm thickness 4. Spiral wound design Spreader up to 500μm thickness 5. Designed for K303 Coater, good compatibility

Principle

RK bar achieves precise Spreader on the substrate by wrapping precision drawn stainless steel wire onto the stainless steel rod to form a pattern with grooves of the same shape, and accurately controlling the wet film thickness through the size of these grooves.

Specifications

Production process: wide-wound, wet film thickness: 100μm, diameter: 12.7mm, total length: 585mm, wire diameter: 1.27mm, application width: 420mm, material: stainless steel

Total length
585mm
wire diameter
1.27mm
rod diameter
12.7mm
wet film thickness
100 μm
