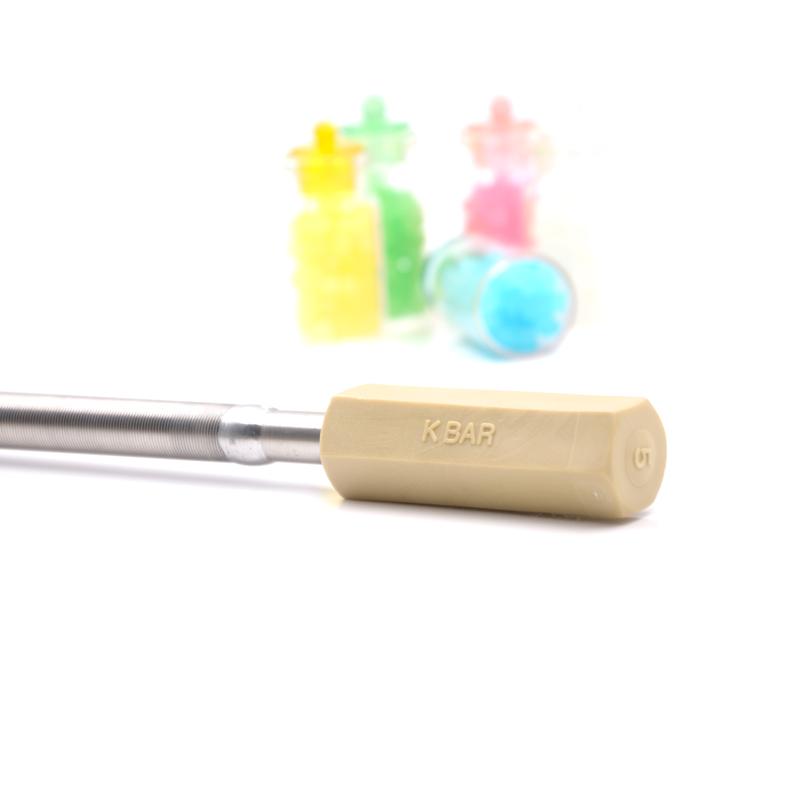

RK K303.10.5 bar wire-wound coating Rod wet film thickness 50μm application width 420mm

Name: RK K303.10.5 bar wire-wound coating Rod wet film thickness 50μm application width 420mm
Brand: RK
SKU: NB018153
Price: 197.0 USD
Availability: PreOrder

$ 197.00Ex works

Made by wire-wound process, wet film thickness 50μm, application width 420mm, uniform groove is formed by precision stainless steel wire winding to achieve accurate control of Coating thickness.

Model

K303.10.5

Get Quote

Category : Coating Rod

Brand : RK

SKU : NB018153

Service :The delivery and service By NBCLab.Com

Overview

RK bar model K303.10.5 is used for surface coatings of Spreader precision, repeatability on most substrates. By winding precision drawn stainless steel wire onto the stainless steel rod to form a pattern with grooves of the same shape, the wet film thickness is accurately controlled by the size of these grooves. Closed wound bar can Spreader 4 to 120μm Coating thickness, spiral wound bar can Spreader higher thickness coatings up to 500μm. UK RK Coater K303 Spreader area is 700x420mm, this Coater bar is dedicated to K303 Coater use.

Features

1. Spreaders, surface coatings, repeability 2. Accurately control the wet film thickness by forming groove patterns through precision winding 3. Closed winding rod Spreader thickness range 4-120μm 4. Spiral Winding Rod Spreaders Up to 500μm Higher Thickness 5. Dedicated to K303 Coater

Principle

A pattern with grooves of the same shape is formed by wrapping precision drawn stainless steel wire onto a stainless steel rod. The size of these grooves allows accurate control of wet film thickness for precise coating Spreader.

Specifications

Production process: wide-wound, wet film thickness: 50μm, diameter: 12.7mm, total length: 585mm, wire diameter: 0.64mm, application width: 420mm, material: stainless steel

Total length
585mm
wire diameter
0.64mm
rod diameter
12.7mm
wet film thickness
50 μm
