Overview

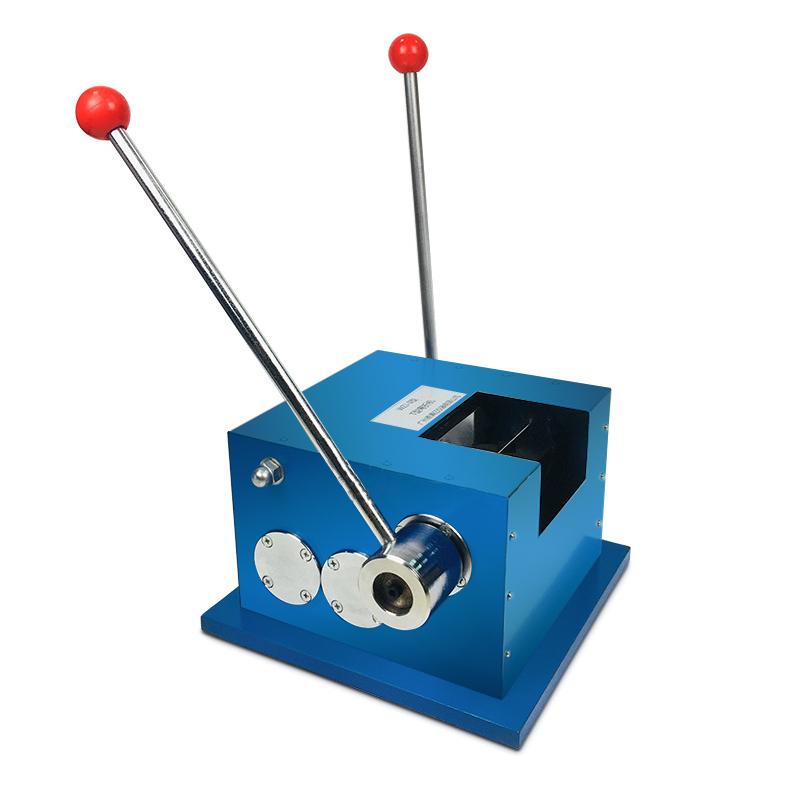

WZJ-II bending machine is a testing equipment specially used by YONGLIDA brand to determine the flexibility - T-Bend performance of color steel plate coatings. The equipment meets the requirements of NCCA "Standard" T "Bend Test Method". The thickness range of compressible steel plate and Aluminum Panel is 0.2~ 1.5mm, the weight of the whole machine is 50kg, and the Dimension is 300 * 300 * 190mm.
Features
1. Specifically used to determine the flexibility of color steel coatings - T-Bend performance
2. Meet the requirements of NCCA "Standard" T "Bend Test Method"
3. Pushable Steel Plate, Aluminum Panel Thickness Range 0.2~ 1.5mm
4. Light weight, only 50kg
5. Compact shape, size 300 * 300 * 190mm
Principle
The WZJ-II bending machine conducts bending tests on color steel sheet coatings by mechanical bending, evaluates their flexibility and T-Bend performance, and ensures that the coatings will not have defects such as cracking and flaking during the bending process.
Applications
Color steel coating testing, metal sheet flexibility testing
Standards
NCCA "Standard" T "Bend Test Method"
Steps
1. Prepare Color Steel Plate or Aluminum Panel Samples to be Tested
2. Adjust equipment parameters to the required test conditions
3. Place the sample in the working area of the bending machine
4. Start the device for bending test
5. Observe and record the performance of coatings during bending
6. Evaluate coating flexibility based on test results
Notice
• Please read the Equipment Operation Manual carefully before use
• Ensure that the thickness of the sample to be tested is within the range of 0.2~ 1.5mm
• Pay attention to safety during operation to avoid pinching
• Regularly check the running status of the equipment and keep it clean
• Clean up the work area in time after the test is completed
