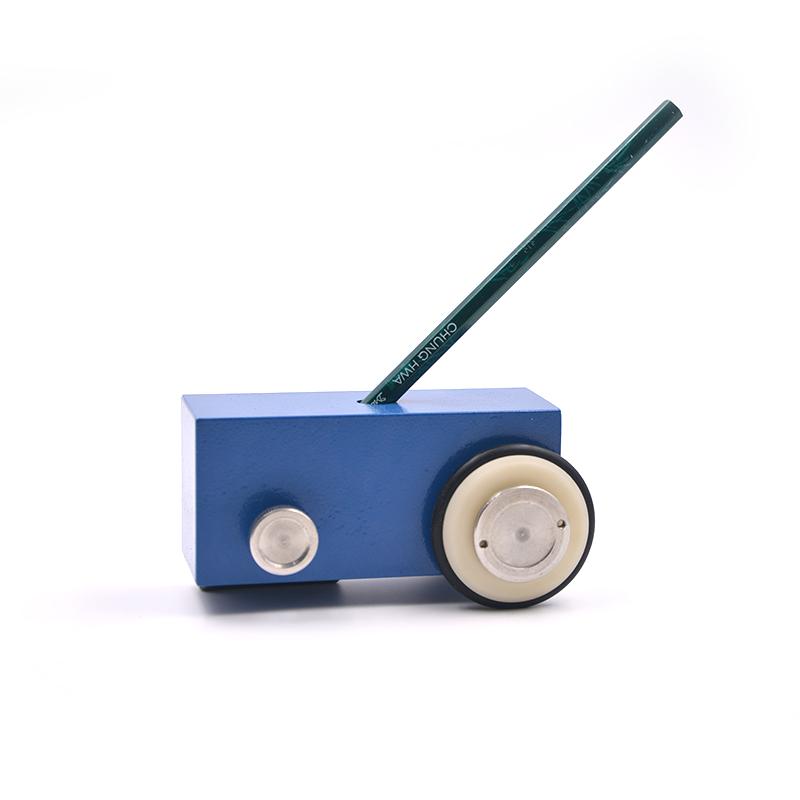

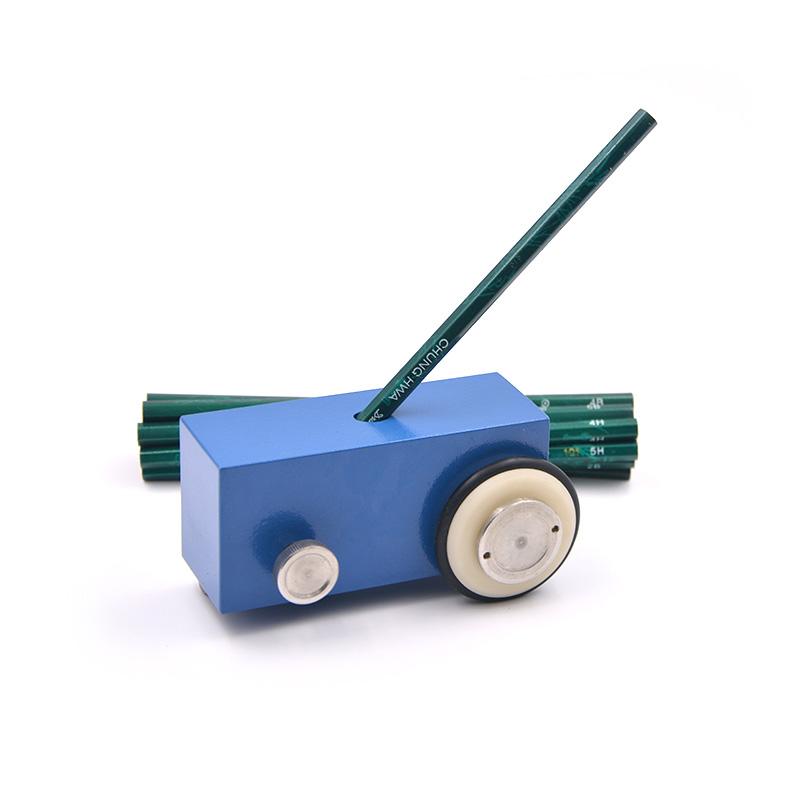

PUSHEN BY-750g Pencil Hardness Tester coating Hardness Tester 750g load

Name: PUSHEN BY-750g Pencil Hardness Tester coating Hardness Tester 750g load
Brand: Pushen
SKU: NB018195
Price: 160.0 USD
Availability: InStock

$ 160.00Ex works

Using 45 ° fixed angle design, ensure that the cylindrical pencil lead scratches the coating with constant pressure, the load is 750g, the error is +/- 10g, and the coating grade is determined by the minimum trace Hardness value.

Model

Get Quote

Category : Pencil Hardness Tester

Brand : Pushen

SKU : NB018195

Service :The delivery and service By NBCLab.Com

Overview

Pencil hardness tester is used to evaluate coating Hardness with graphite pencils with different Hardness values. The precision design ensures that the cylindrical pencil lead maintains a constant 45 ° angle and fixed pressure, and the coating Hardness grade is determined by the minimum Hardness value pencil that leaves a mark.

Features

1. Precision design ensures that the pencil lead maintains a 45 ° angle and a fixed pressure 2. The load error is controlled within +/- 10g 3. Model BY-750g Load is 750g

Principle

Insert the sharpened pencil into the oblique hole of the trolley and fix it. The trolley is placed on the sample and implemented at a speed of 0.5mm/s. The nib scratches the surface of the film and determines the film Hardness according to the pencil Hardness.

Standards

GB/T 6739、ISO 15184

Steps

1. Sharpen the pencil and insert it into the inclined hole of the trolley, and tighten the fixing screws to make the trolley basically level 2. Place the trolley on the sample and pinch the center of the wheel with two fingers 3. Push forward at a speed of 0.5mm/s, the nib scratches the surface of the film 4. Determine film Hardness according to pencil Hardness, the specific method is according to GB/T6739-2006 standard

Notice

Make sure the pencil is inserted and fixed correctly • The implementation speed is maintained at 0.5mm/s • The judgment method must strictly follow the GB/T6739-2006 standard

nib load
750g
load error
±10g
Pencil Specifications
6B-HB-6H (13 pcs)
matrix Size
130*75*60mm
Machine weight
2.6Kg
Meet the standard
GB/T 6739、ISO 15184

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
