Overview

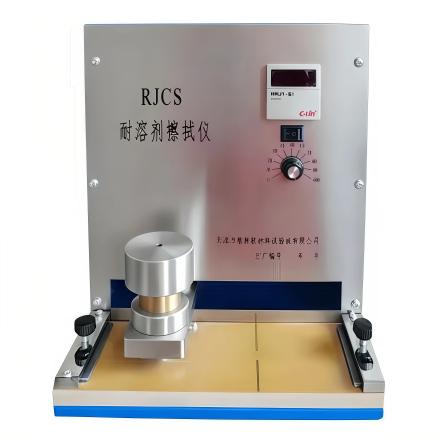

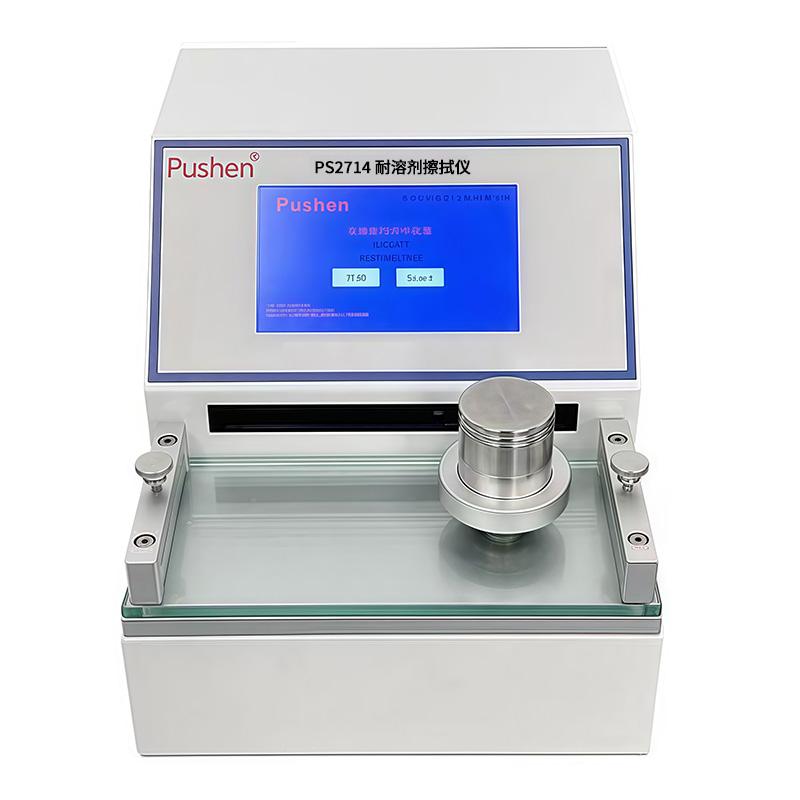

The RJCS solvent rub tester is a PUSHEN brand device used to evaluate the solvent wipe performance of coatings. The solvent wipe resistance of coatings is assessed by measuring the number of wipes required for coating damage.
Features
1. The friction load is 1000 +/- 10g to ensure the test Stability.
2. Wiping Frequency range is 20~ 60cpm, which can be adjusted to adapt to different test requirements.
3. Wipe Travel is 120 +/- 5mm, providing a standardized test path.
4. The sample size is 200 * 70mm, compatible with standard samples.
5. The grinding head area is 14mm, the contact surface diameter is φ 14mm, and the test area is precisely controlled.
6. Motor Power is 60W, power supply is 220V AC 50Hz, operation is efficient and safe.
7. Dimension is 260 * 240 * 340mm, weight is 20kg, compact and portable.
Principle
The device reciprocates wiping on the coating surface through the motor-driven grinding head, and uses the solvent to simulate the actual use conditions. According to the number of wipes required for coating damage, the solvent wiping performance of the coating is automatically evaluated.
Standards
GB/T 23989、ASTM D 5402
Steps
1. Prepare the sample with a size of 200 x 70mm.
2. Set the friction load to 1000 +/- 10g.
3. Adjust Wipe Frequency to 20~ 60cpm range.
4. Set Wipe Travel to 120 +/- 5mm.
5. Start the device for wipe test.
6. Record the number of wipes when the coating is damaged.
7. Evaluate the coating performance according to the recorded results.
Notice
• Ensure that the sample size meets the requirements of 200 * 70mm.
• Friction load should be controlled within the range of 1000 +/- 10g.
• Wiping Frequency should be adjusted between 20~ 60cpm.
• Wipe Travel must be 120 +/- 5mm to ensure test accuracy.
• Check the power supply to 220V AC 50Hz before use.
• Device weight is 20kg, pay attention to safety when handling.
• Avoid contact with moving parts during testing.
• Maintain equipment regularly to ensure stable performance.
