Overview

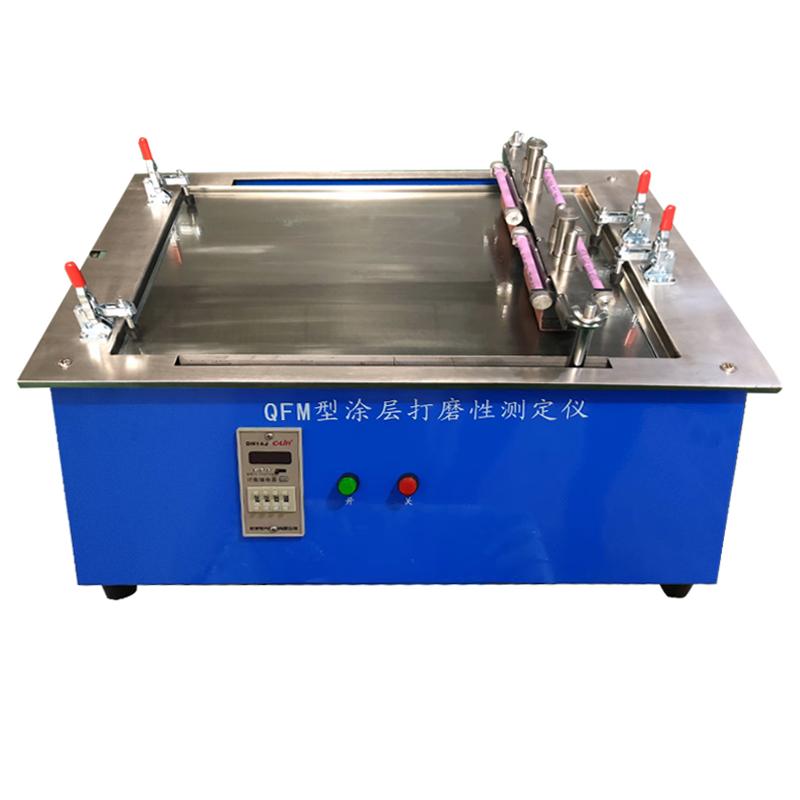

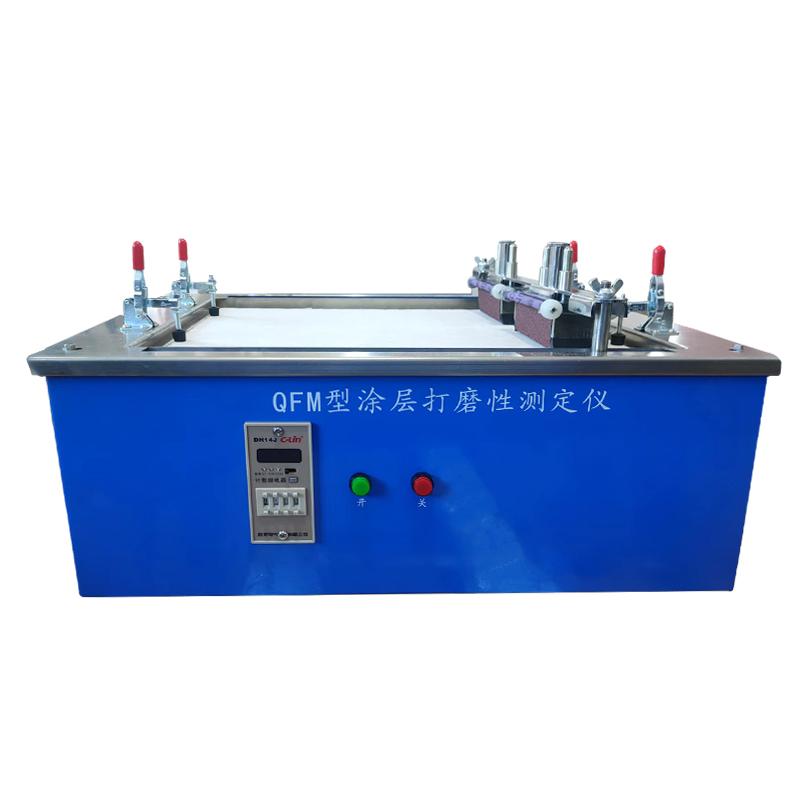

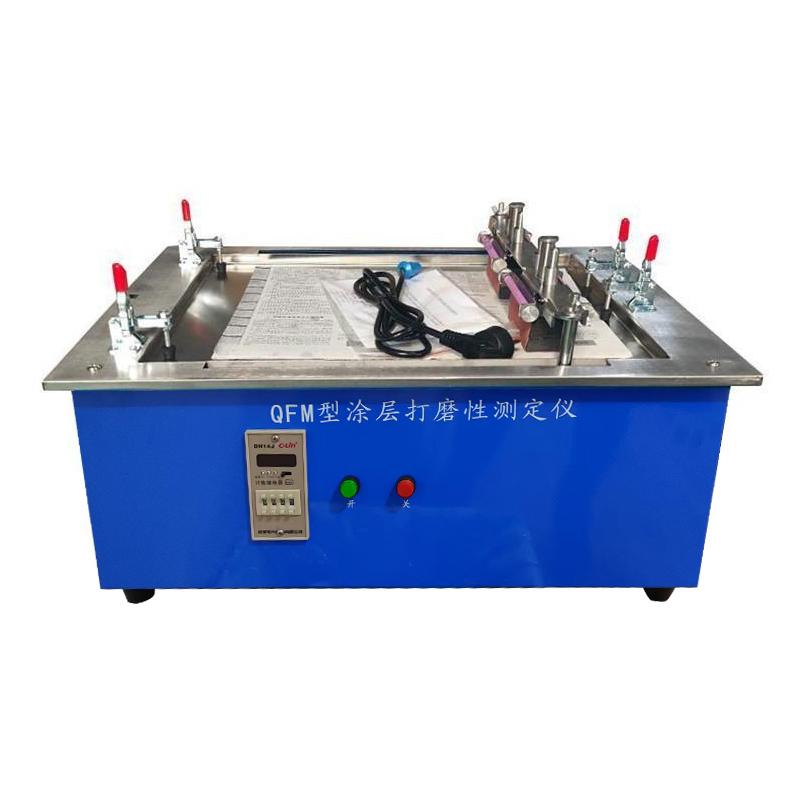

QFM type coating sanding tester is designed and manufactured by JINGKELIAN brand according to the requirements of sanding experiment in the new standard, which is mainly used to determine the sanding of indoor putty such as building interior-wall and ceiling. The instrument has reasonable and reliable structure, simple operation, automatic counting, and good Repeatability of the whole machine.
Features
1. Reasonable and reliable structure; 2. Simple operation; 3. Automatic counting function; 4. Repeatability of the whole machine.
Principle
The instrument is mainly composed of sanding block and fixture, sliding frame, test bench, motor, power switch, counter and other components. The test block with sandpaper is reciprocated in a straight line on the coating surface of the test plate. After sanding to the number of times specified by the product, observe the area of putty powder stained on the sandpaper to judge the sanding of the coating.
Applications
Building interior-wall, ceiling and other indoor putty
Steps
1. Install the test block with sandpaper on the fixture; 2. Place the test plate on the test bench; 3. Start the motor to make the test block reciprocate in a straight line on the coating surface; 4. Stop after sanding to a specified number of times; 5. Observe the area of putty powder stained on the sandpaper.
Notice
• Power supply voltage is 220V 50Hz; • Check whether the instrument parts are in good condition before operation; • Pay attention to safety protection during sanding; • Regular maintenance to ensure instrument Repeatability.
