JINGKELIAN QDX Paint Film Multi-purpose Detector Cross-cut adhesion Thickness Buchholz Clearance Test

Name: JINGKELIAN QDX Paint Film Multi-purpose Detector Cross-cut adhesion Thickness Buchholz Clearance Test
Brand: JingKeLian
SKU: NB018932
Price: 343.0 USD
Availability: InStock

$ 343.00Ex works

Set cross-cut adhesion, film thickness and Buchholz Crowd Hardness three test functions in one, cross-cut knife 6 blade spacing 1mm/2mm, Crowd knife load 500 +/- 5g, using the destruction Measurement principle.

Model

Get Quote

Category : Coating Thickness Gauge

Brand : JingKeLian

SKU : NB018932

Service :The delivery and service By NBCLab.Com

Overview

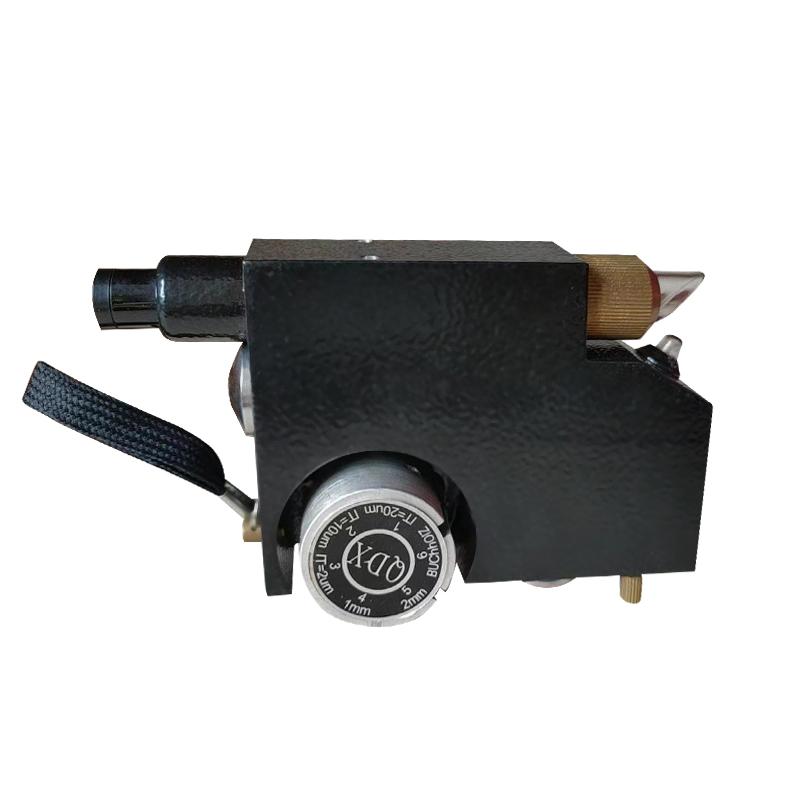

JINGKELIAN QDX is a multifunctional inspection device for film cross-cut adhesion, film thickness and Buchholz Clearance testing. The instrument integrates three test functions and uses the destructive Measurement principle to meet the requirements of many national standards.

Features

1. Combines three test functions of cross-cut adhesion, paint film thickness and Buchholz Crowd Hardness 2. The cross-cutting knife adopts a 6-blade design with a spacing of 1mm and 2mm. 3. Thickness measuring cutting blade angle provides three options: 45 degrees, 26 degrees, 35 minutes and 5 degrees, 40 minutes 4. Crane knife load is 500 +/-5g 5. Using the Destructive Measurement principle

Principle

Measurement principle of destruction is used to test the adhesion of paint film by cross-cutting knife, and the thickness of paint film is measured by cutting edge at different angles.

Standards

GB/T9286-88、GB/T134522-92、GB/T9275-88

Technical parameters
Execution standard: GB/T9286-88 GB/T134522-92 GB/T9275-88
Thickness measuring cutting edge angle
45 degrees, 26 degrees 35 minutes, 5 degrees 40 minutes
Crane knife load
500±5g
