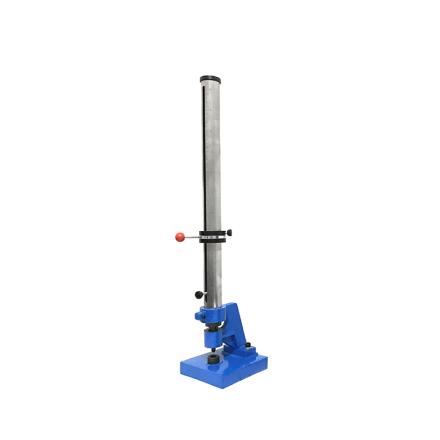

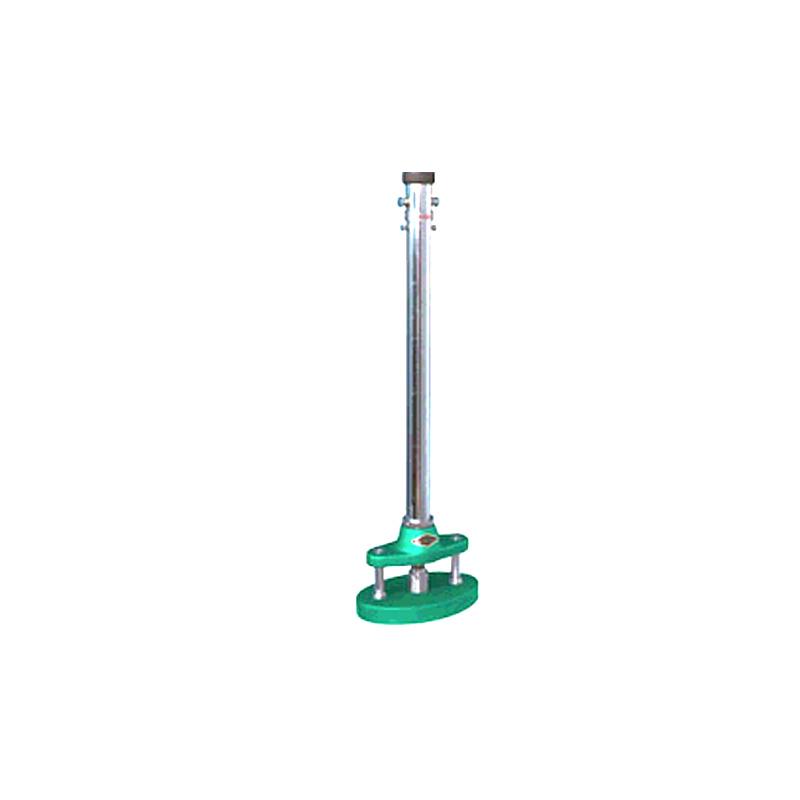

JFL QCJ-50 Film Impact Tester, Impact Strength Tester

Name: JFL QCJ-50 Film Impact Tester, Impact Strength Tester
Brand: JFL
SKU: NB018995
Price: 225.0 USD
Availability: InStock

$ 225.00Ex works

Impact height 0-50cm adjustable, equipped with 1000g drop weight and Φ 8mm punch, Impact depth 2mm, can accurately determine the material resistance to Impact performance.

Model

Get Quote

Category : Film Impact Tester

Brand : JFL

SKU : NB018995

Service :The delivery and service By NBCLab.Com

Overview

JFL QCJ-50 Film Impact Tester is a special instrument used to measure the impact strength of paint film. It shows the impact strength of paint film by weight and the maximum height (kg · cm) that does not cause damage to the paint film by dropping a heavy object from a height.

Features

1. Impact height range 0~ 50cm 2. Drop weight mass 1000g 3. Punch diameter φ 8mm 4. Impact depth 2mm 5. The structure is divided into four parts: base, scale tube body, weight hammer and controller

Principle

The impact strength of the film impactor is determined by whether the film is damaged or not through the film on the impact sample. The impact strength is expressed as the product of the weight of the weight of the weight and the maximum impact height that does not cause the film to break.

Steps

1. Place the Impact on a flat base 2. Adjust the weight to the desired Impact Height 3. Release the weight through the controller 4. Observe whether the paint film is damaged 5. Record Maximum Impact Height Without Film Damage

Notice

• Ensure that all parts of the instrument are in good condition before use • Impact height adjustment should be accurate and reliable • Pay attention to safe operation when releasing the heavy hammer • Clean and maintain the instrument in time after the test

Height Range
Hammer drop height 0-50cm
Duct scale
0-50Cm division: 1cm
Hammer mass
1000g —1g
Punch diameter
8mm
Impact depth
2 /—0.1mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
