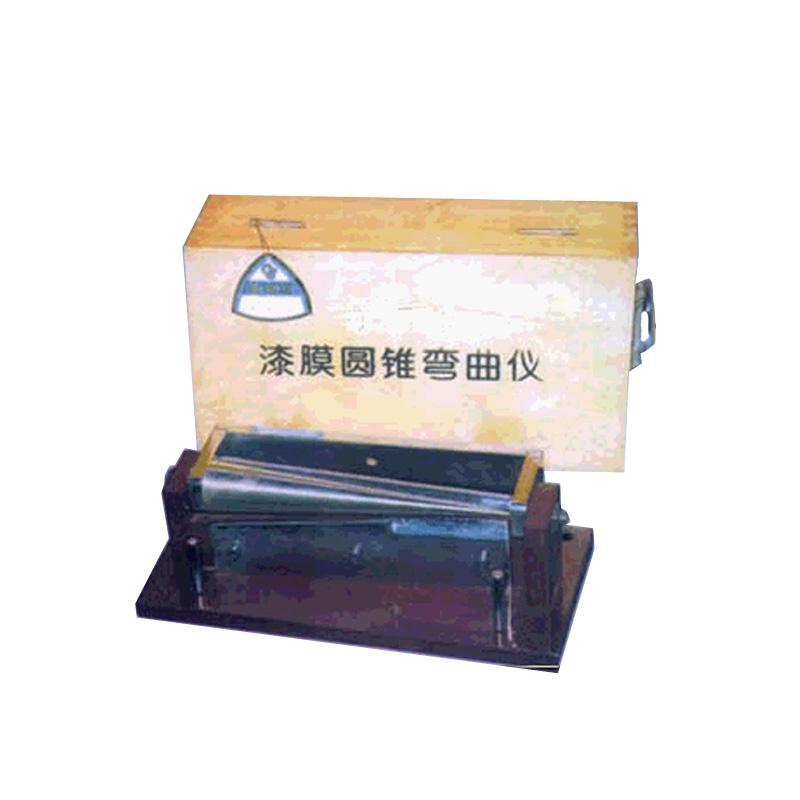

JFL QTZ paint film cone bending test, cone shaft length 203mm large end diaMeter 38mm

Name: JFL QTZ paint film cone bending test, cone shaft length 203mm large end diaMeter 38mm
Brand: JFL
SKU: NB019012
Price: 283.0 USD
Availability: InStock

$ 283.00Ex works

The cone shaft length is 203mm and the large end diaMeter is 38mm, which can test the cone bending resistance of a single layer or the entire coating system separately. Operating temperature is 23 +/- 2 ℃ and relative humidity is 50 +/- 5%.

Model

Get Quote

Category : Bend Tester

Brand : JFL

SKU : NB019012

Service :The delivery and service By NBCLab.Com

Overview

JFL QTZ paint film cone bending test is designed and manufactured according to GB/T11185-89 and ISO6860-1984 standards. It is used to test the cracking resistance, disbonding performance and coating elongation of the film on the metal plate after bending around the conical mandrel under standard conditions. The results are expressed in centimeters. The equipment is suitable for film multi-layer systems, and can test the cone bending performance of single layers or the entire coating system separately.

Features

1. Design and manufacture according to national standard GB/T11185-89 and international standard ISO6860-1984 2. Test film cracking resistance, disbonding performance and elongation 3. Suitable for film multi-layer system testing 4. Can test single-layer coatings or the entire coating system 5. conical mandrel design, test results expressed in centimeters

Principle

Humidity conditions (temperature 23 +/- 2 ℃, relative humidity 50 +/- 5%) were bent around the coated metal plate conical mandrel, and the cracking resistance, disbonding performance and elongation were evaluated by observing the behavior of the coating after bending.

Specifications

Taper shaft length: 203mm, large end diameter: 38mm, small end diameter: 3.2mm, Operating temperature: 23 +/- 2 ℃, relative humidity: 50 +/- 5%

length
203mm
Big end diameter
38mm
small end diameter
3.2mm
Operating temperature
23 +/-2 degrees Celsius
relative humidity
50+/-5％

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
