It can test the cracking of the paint film after bending 180 degrees in 1-3 seconds, and the diaMeter range of the shaft Rod is 2-32mm. It is suitable for the test plate with a thickness of not more than 1.0mm. Quick evaluation of flexibility.
Equipped with 2 to 12mm eight diaMeter stainless steel cylindrical mandrel, in the form of hinged bending, in line with GB6742 standard, suitable for Coating bending performance testing.
Equipped with 8 kinds of diaMeter shaft Rods from 2 to 12mm, the 180 degree bending test can be completed in 1-3 seconds, and the anti-cracking performance of the paint film can be evaluated with the smallest shaft Rod diaMeter, which is easy to operate.
The paint film adhesion was measured by the circular trace method, the drawing diaMeter was 0~ 10.5mm, and the Working Travel was 80mm. The integrity of the paint film was evaluated according to seven grades, and the operation was simple and reliable.

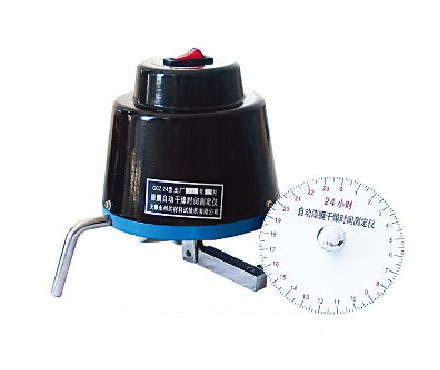

The drying process of paint film and putty film can be accurately measured by using circular track needle design, equipped with four different radius needle (R0.25/0.5/1.0/1 mm), and the track period is 24h/r.
Equipped with 13 kinds of diaMeter shaft Rods, covering the range of 2-32mm, can detect 1.0mm thickness samples, evaluate the film anti-cracking performance through different bending radii, easy and accurate operation.
The thickness of the pressurable steel plate Aluminum Panel is 0.2~ 1.5mm, the weight of the whole machine is 50kg, and the compact shape is only 300 * 300 * 190mm, which meets the NCCA standard T-Bend test method.
The paint film adhesion was measured by the circular trace method, the drawing diaMeter was 0-10.5 mm, and the Working Travel was 80mm. The integrity of the paint film was evaluated according to seven grades, and the operation was simple and reliable.
Impact height of 120 cm, hammer mass 1000g, no secondary rebound phenomenon after impact, punch diaMeter 16mm, can accurately determine the impact strength of the paint film.

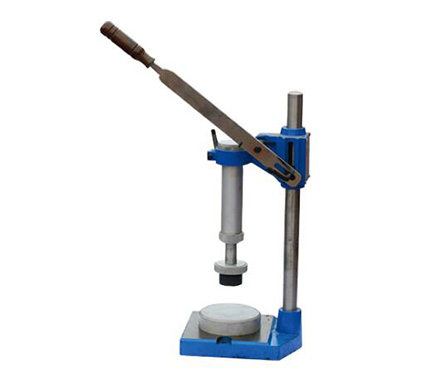

The pressure range of the probe is 50~ 250N, the diaMeter of the rubber probe is 40mm, and the degree of paint film chalking is evaluated by comparing the imprint of the photo paper with the standard sample, which is suitable for the detection of various environmental factors.
It can measure the ability of the paint film to deform with the substrate without damage. It is equipped with a shaft Rod with a diaMeter of 50mm and 100mm.
Using photo paper smooth surface combination technology, observing the imprint after applying a uniform load, the pressure range of the probe is 50-250N, and the diaMeter of the rubber probe is Φ 40mm, which can accurately evaluate the chalking grade of the paint film.
Konig and Persoz swing bars are used, Konig swing period is 1.4s, Persoz swing period is 1s, and the number of swing angles is automatically recorded, which is suitable for accurate determination of paint film Hardness.
Hand type easy to operate, load 1000g, standard 6B-6H pencil, suitable for film hardness testing, test temperature 23 +/- 2 ℃ and Humidity 50 +/- 5% environment.
It can measure planar and cylindrical surface roughness, with a minimum diaMeter of 5mm and a maximum depth of 22mm, and supports a variety of Sensors to adapt to different workpiece shapes.
