Overview

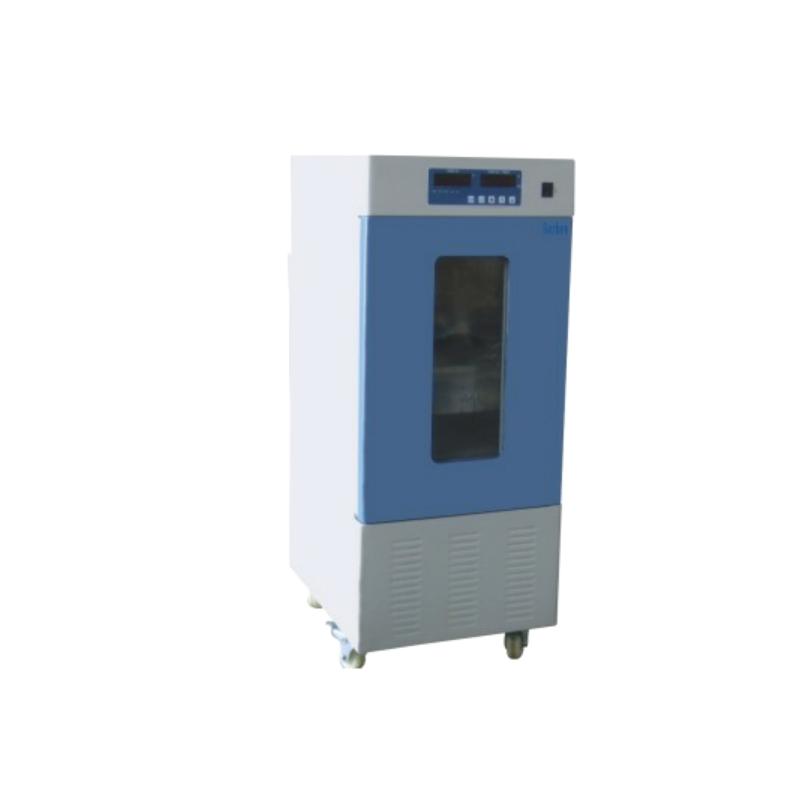

BOZHEN LRH-150 biochemistry cultivating box is a new fluorine-free design experimental equipment, using brand Compressor and circulating fan, equipped with large LCD screen, easy to operate, with high efficiency and low energy consumption. Compared with traditional refrigeration equipment, the cooling time is reduced by more than 40%, while promoting energy saving, extending service life and reducing noise.
Features
1. Using a good mirror stainless steel liner, the box is sprayed with a good steel plate, four corners and a half arc design, easy to clean, and the Shelf spacing in the box is adjustable.
2. Intelligent digital thermostatic instrument, easy to understand, easy to observe and operate.
3. Equipped with international professional fuzzy PID intelligent temperature controller, with low fluctuation and timing function (0-9999min).
4. Equipped with an independent temperature limit alarm system, it will automatically interrupt when the temperature exceeds the limit to ensure the safe operation of the experiment (optional).
5. With a 4-20mA standard current signal, the RS485 interface can be connected to a recorder and a computer, capable of recording changes in temperature parameters (optional).
6. mildew incubator ultraviolet sterilization system, regular disinfection, effectively prevent contamination during cell fostering.
Principle
The product adopts brand Compressor and circulating fan to realize temperature control, and precisely adjusts the temperature through intelligent digital thermostatic instrument and fuzzy PID intelligent temperature controller to ensure stable temperature in the box. The ultraviolet sterilization system is regularly disinfected to prevent pollution.
Applications
Environmental protection, drug testing, agricultural and aquatic research, colleges and universities, production departments, water analysis and BOD determination, bacteria, molds, microorganisms foster, protection, plant cultivation, breeding experiments
Steps
1. Connect the power supply and ensure that the voltage is 200V 50Hz.
2. Set the required temperature (Temperature range 4~ 60 ℃) and Timer Range (1~ 9999min) through the LCD screen.
3. Adjust the Shelf spacing in the box as needed.
4. Start the device and observe the Temperature Fluctuation （ +/- 0.5 ° C) and operating status.
5. Use a UV sterilization system for regular disinfection (if applicable).
6. Monitor temperature changes and, if necessary, connect a recorder or computer to record data through the RS485 interface.
Notice
• Ambient Temperature should be maintained at 4-35 ° C.
• Input Power is 450W, make sure the power supply matches.
• Independent temperature limit alarm system is an optional function, please confirm the configuration if you need to use it.
• Regularly clean the liner and observation window of the box to maintain hygiene.
• Avoid use in humid or corrosive environments to prevent equipment damage.
