Overview

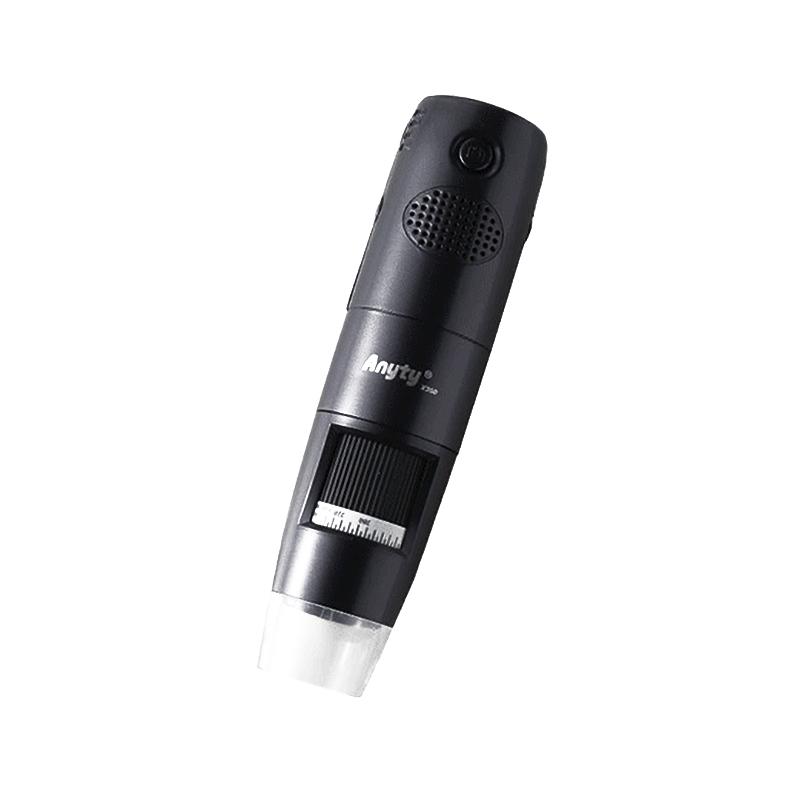

3R-WM401WIFI is a breakthrough Portable digital Microscope with its own WIFI hotspot. It can connect smart end point devices such as mobile phones, tablets, computers and other smart end points anytime and anywhere outdoors. It supports connecting 5 devices at the same time, with good signal and clear picture without delay. The product has the functions of taking photos, recording and measurement. It can be adjusted and enlarged by 10-200X, which can clearly show surface fine structure defects. It is suitable for mass detection of inks coatings, materials, coating failures, etc., especially suitable for outdoor environment and factory site use.
Features
1. Small in size, portable and easy to carry, only about the size of a signature pen, suitable for use in the field, factories, and construction sites.
2. Comes with WIFI hotspot, the picture is not delayed or stuck, supports Android, IOS, MAC, WINDOWS Operating system, and can connect 5 smart end point devices at the same time.
3, easy to use, diverse functions, with micro photography, video, calibration measurement and other functions, accurate measurement, support distance and angle measurement.

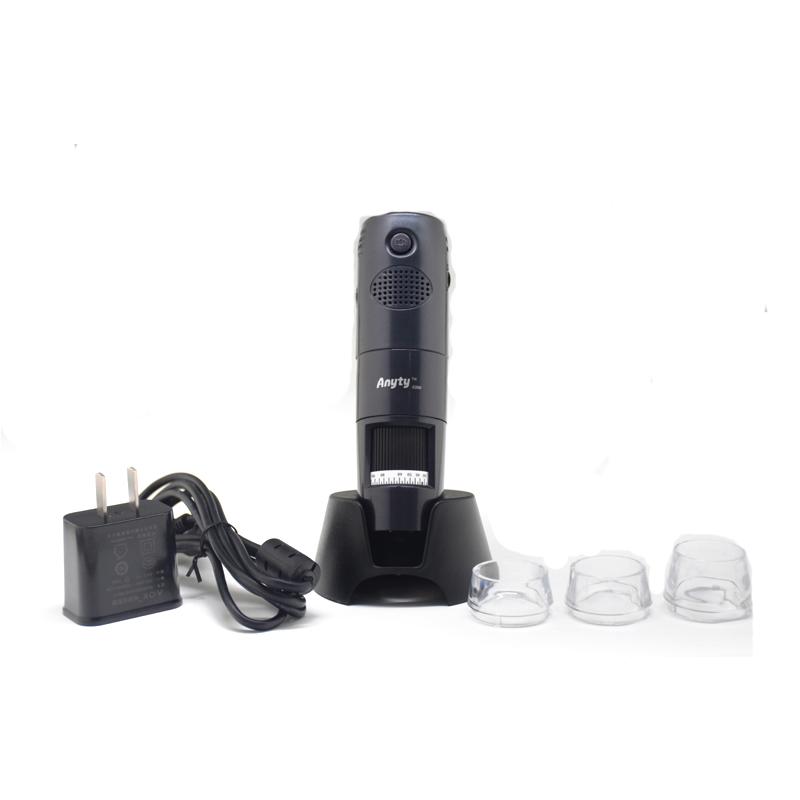

4. A variety of connection methods, supporting WIFI and USB cable connections to meet different needs.

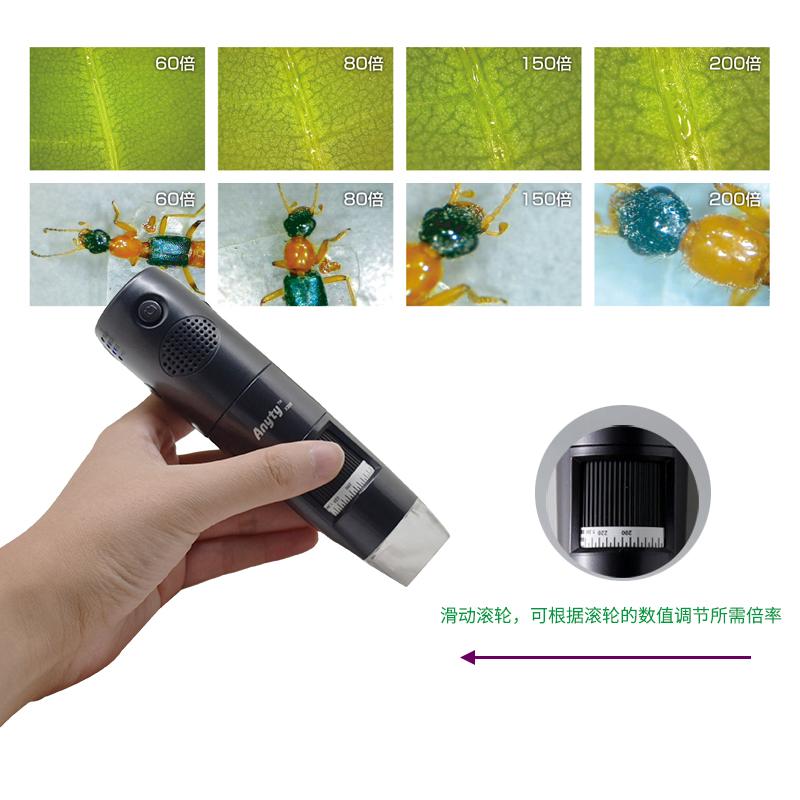

5, 450-600X manually adjust the magnification, suitable for different observation environments.
6. Lithium battery powered, Continuous Operating Time about 4 hours, Full Charging time about 2 hours.
Principle
The product uses its own WIFI hotspot or USB connection to the intelligent end point device, uses the high definition Microscope head and CMOS image Sensor to capture images, and automatically performs exposure control, gamma correction, white equilibrating and other processing to achieve clear observation. The lighting system adopts 8 adjustable luminance warm white LEDs, which support manual adjustment of magnification and focus to ensure high-mass images in different object distance ranges.
Applications
Industrial inspection (PCB circuit board, LCD/LED inspection, abrasion, surface defect crazing, welding inspection, Spinning & weaving inspection, etc.), scientific research (agricultural and forestry research, animal and plant research, digital teaching, etc.), appraisal industry (antique calligraphy and painting appraisal, jade ceramic appraisal, counterfeit banknote watermark appraisal, etc.)
Standards
Compatible with IEEE 802.11 b/g/n standards
Steps
1. Turn on the power of the device, start the WIFI hotspot or connect the USB cable.
2. Search and connect the product WIFI hotspot on the smart end point device, or connect through the USB interface.
3. Open the corresponding application, adjust the magnification and focus to the appropriate range.
4. Perform observation, photography, video recording or measurement operations.
5. Turn off the power supply of the device after use and charge it for next use.
Notice
The temperature of the equipment may rise during continuous operation, ensuring that the temperature is lower than 60 ° C at full speed.
The wireless transmission distance is recommended to be kept within 5 meters to ensure signal stability.
• Make sure the battery is charged before use to avoid long-term operation when the battery is low.
When connecting multiple devices, pay attention to the network load to prevent screen delays.
• Avoid use in humid or extreme environments to prevent equipment damage.
• Regularly clean the lens to maintain image clarity.
