Overview

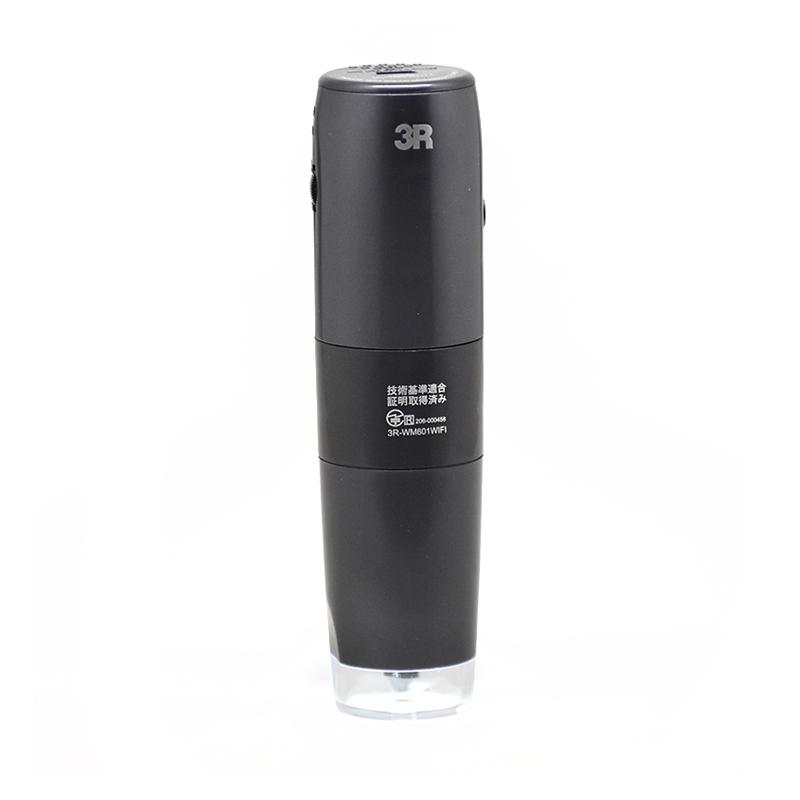

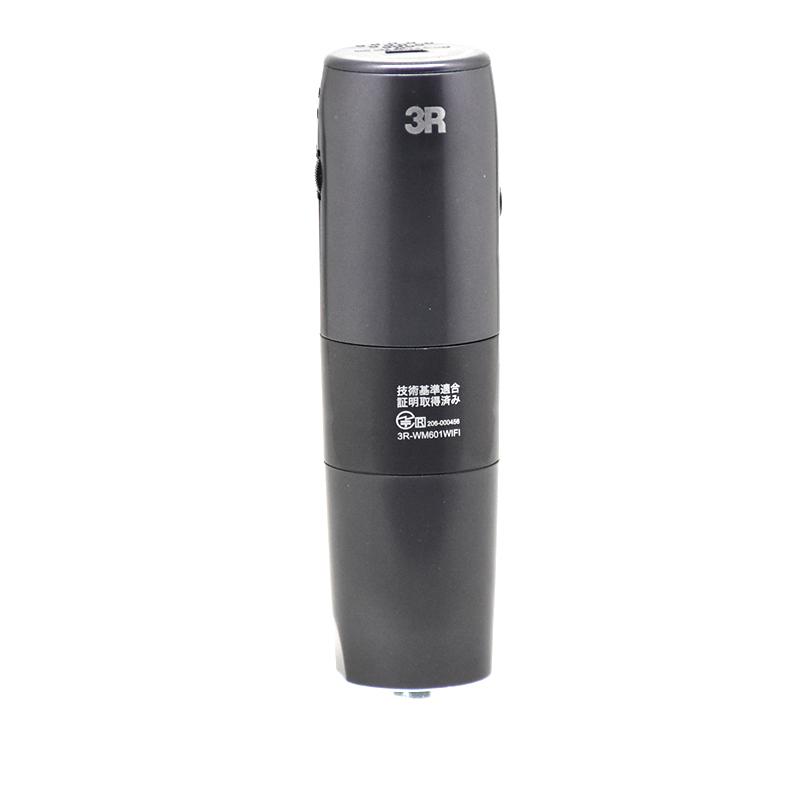

3R-WM601WIFI is a multi-functional Microscope developed by 3R International Group, which integrates WIFI wireless and USB connection functions. The product has its own WIFI hotspot, no external network is required, and can connect 5 end point devices (mobile phones, tablets, computers) at the same time to share the picture, supporting Android and IOS systems. Provide 450-600 times high definition enlargement, adjustable resolution, with camera, video, measurement (distance, angle, area, etc.) functions, clear picture transmission without delay and no card.
Features
1. Small in size, portable and easy to carry, the size is the size of a signature pen, suitable for use in the field, factories, and construction sites.

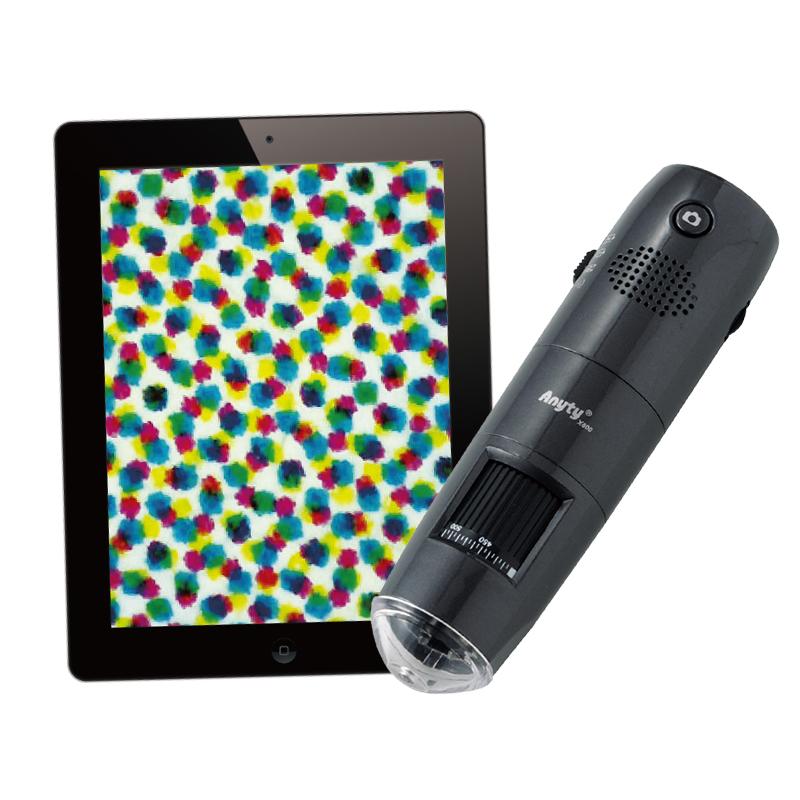

2. Comes with its own WIFI hotspot, the picture has no delay and no card, supports 5 devices to connect at the same time, and is compatible with Android, IOS, MAC, and WINDOWS systems.
3, easy to use, diverse functions, including micro photography, video, calibration measurement, accurate measurement.
4. A variety of connection methods, supporting WIFI and USB cable connections to meet different needs.
5, 450-600 times manually adjust the magnification to adapt to different observation environments.
6. Lithium battery powered, Continuous Operating Time about 4 hours, Full Charging time about 2 hours.
7. The product parameters are genuine without false labels.
8. The picture is clear, with no delay and no card.
Principle
The product is connected to the smart end point device through the built-in WIFI hotspot or USB interface, and uses CMOS Image Sensor and automatic exposure control, white equilibrating and other technologies to achieve high definition image acquisition and transmission. Manually adjust the magnification and focus range (8-300mm), combined with 8 adjustable luminance LED lighting systems to ensure clear and stable observation pictures.
Applications
Industrial testing field Inks material, printing status, corrosion control, paint production, Decorative Coatings, building materials surface and insect detection and other mass testing and control fields.
Standards
Compatible with IEEE 802.11 b/g/n standards
Steps
1. Turn on the power of the device and start the WIFI hotspot.
2. Connect the product WIFI hotspot on the smart end point device.
3. Open the corresponding application and perform observation, photography, video recording or measurement operations.
4. Optional USB cable to connect to the computer for data transmission.
Notice
• Operating temperature is below 60 ℃ to avoid high temperature environment.
• Wireless transmission distance greater than 5 meters to ensure operation within the effective range.

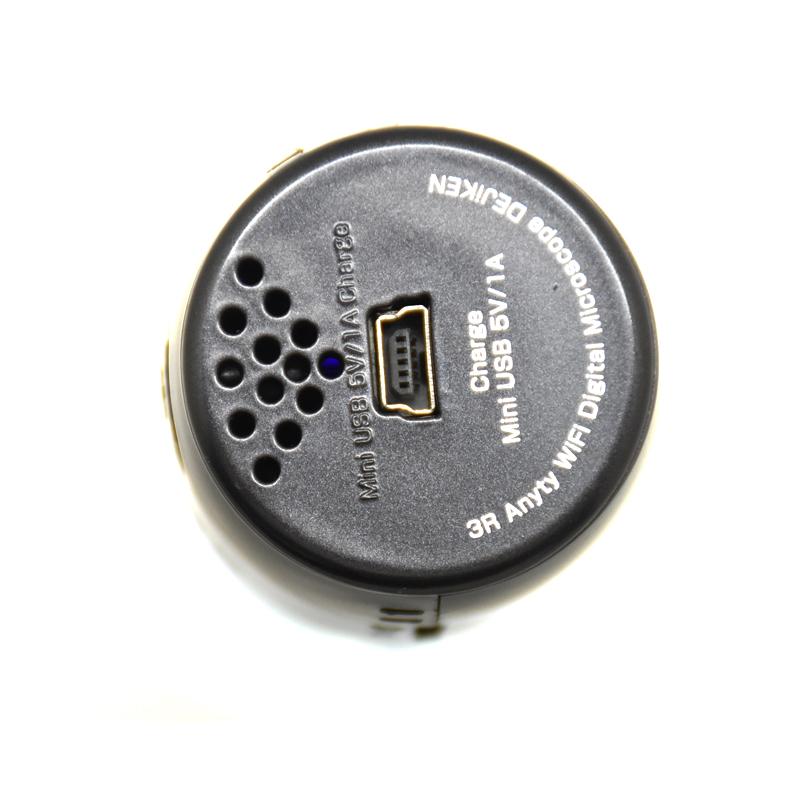

• Lithium battery Continuous Operating Time is about 4 hours, using DC5.0V/1A power supply when charging.
• Focus adjustment and magnification adjustment require manual operation, paying attention to the object distance range of 8-300mm.
• Avoid strong vibration or impact to protect the high definition Microscope head.
