Overview

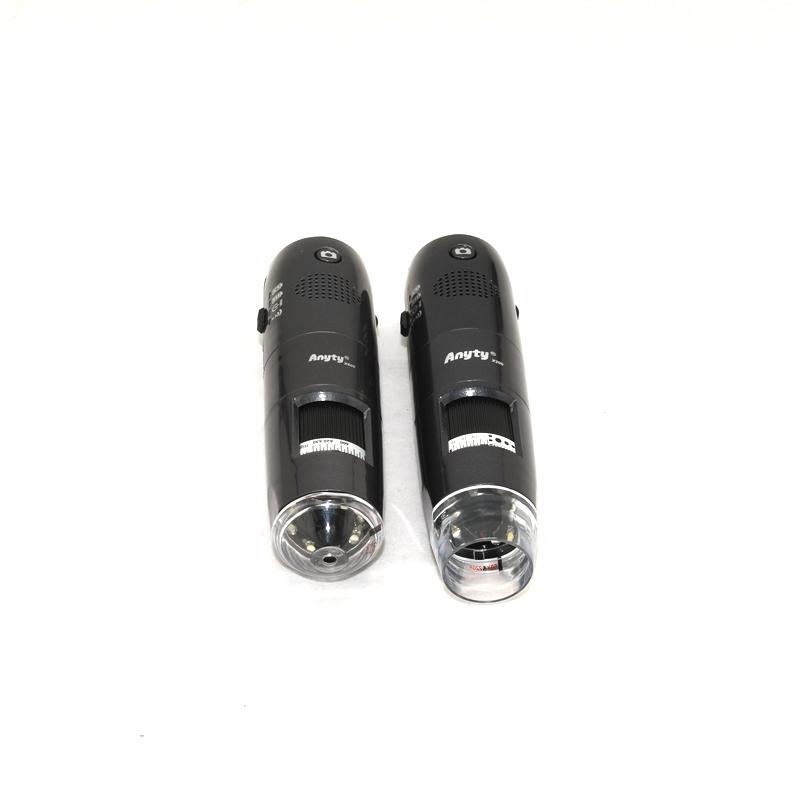

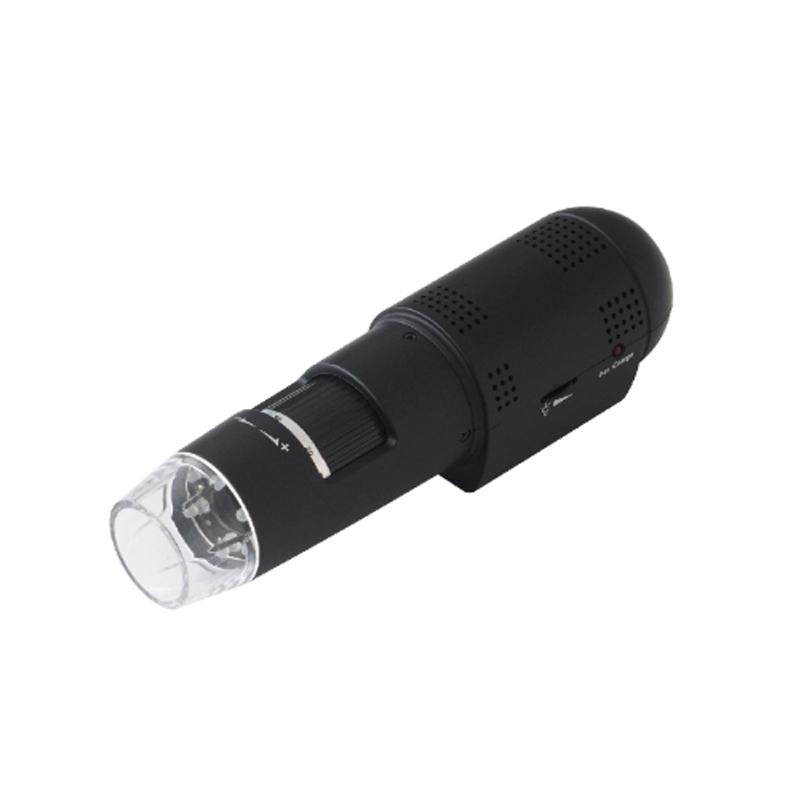

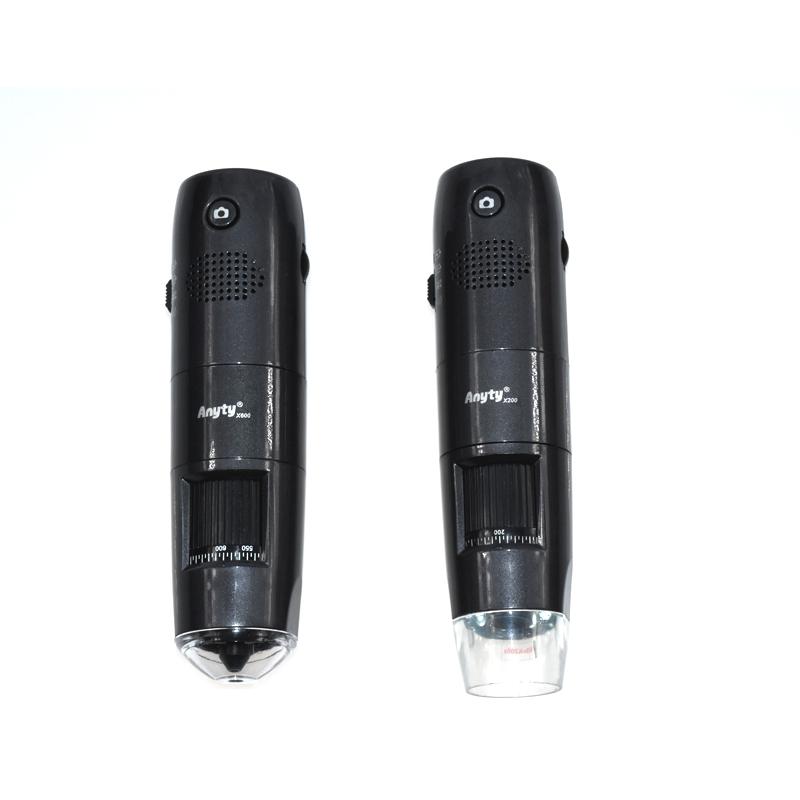

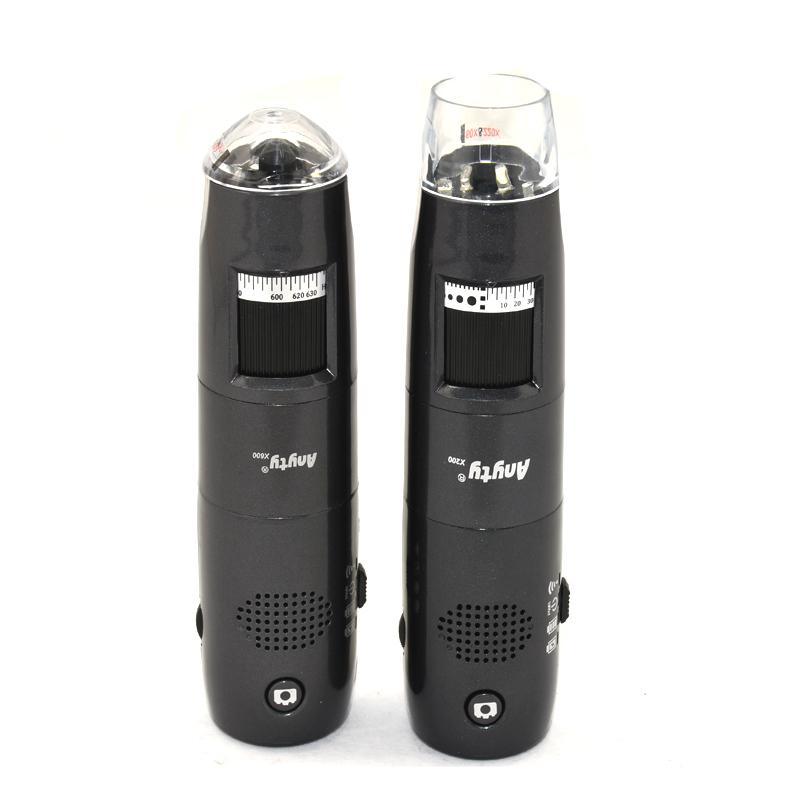

3R-WM461WIFI is a comprehensive microscope that integrates 3R-WM401WIFI and 3R-WM601WIFI. It has dual Operating Mode and dual adjustable magnification range (10-200 times and 450-600 times), which can meet different work needs. The product is small and portable, with its own WIFI hotspot, can connect 5 intelligent end point devices at the same time, with good signal, clear picture and no delay card. With camera, video and diversified measurement functions, it is suitable for analyzing mass detection problems such as inks coatings, materials, coating failures, defects, etc., especially suitable for outdoor environments and factory sites.
Features
1. Compact in size, portable and easy to carry, suitable for use in the field, factory, construction site, etc.
2. Comes with WIFI hotspot, the picture is not delayed or stuck, supports 5 smart end point devices to connect at the same time, compatible with Android, IOS, MAC, WINDOWS Operating system.
3, easy to use, diverse functions, with micro photography, video, calibration measurement and other functions, accurate measurement.
4. A variety of connection methods are powerful, meeting different data connection requirements.
Adjustable amplification of two intervals (10-200X and 450-600 times), suitable for different observation environments.
6. Lithium battery powered, Continuous Operating Time about 4h, Full Charging time about 2h.
Principle
The product switches the Operating Mode through the power switch: when the switch hits WiFi, the WiFi wireless Microscope works; when the switch hits OFF/USB, the WiFi is turned off. If the miniUSB cable is connected to the computer, the wired USB Microscope works. The indicator light shows the device status, including WiFi data transmission, power supply, battery and charging status. Use high definition Microscope head and automatic functions (such as exposure control, white equilibrate, etc.) to achieve clear observation and measurement.
Applications
Industrial testing field Inks material, printing status, corrosion control, paint production, Decorative Coatings, building materials surface and insect detection and other mass testing and control fields.
Steps
1. Turn the power switch to the WiFi position and start the WiFi wireless Microscope to work.
2. Use the smart end point device to connect to the WIFI hotspot that comes with the product.
3. Take pictures, videos or measurements through the equipment.
4. If you need a wired connection, turn the power switch to the OFF/USB position and connect the miniUSB cable to the computer.
Notice
• When the power switch hits WiFi, the WiFi wireless Microscope works; when it hits OFF/USB, the WiFi is turned off, and if the USB cable is connected, it works wired.
• The WiFi indicator flashes to indicate wireless data transmission, and is always on to indicate no data transmission.
• The power indicator lights up when the device is powered on or charged.
• Battery indicator red means dead, blue means full.
• The charging indicator light is always on to indicate that it is charging, and off to indicate that the battery is fully charged.
• The temperature of the equipment is lower than 60 ° C at full speed.
• Powered by lithium battery, Continuous Operating Time is about 4h, Full Charging time is about 2h.
