Overview

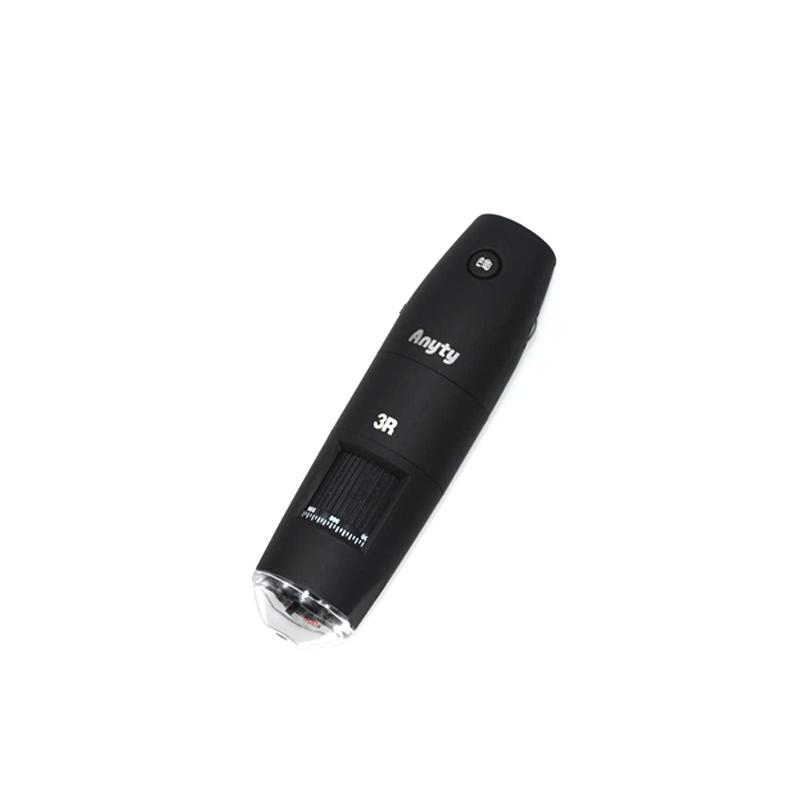

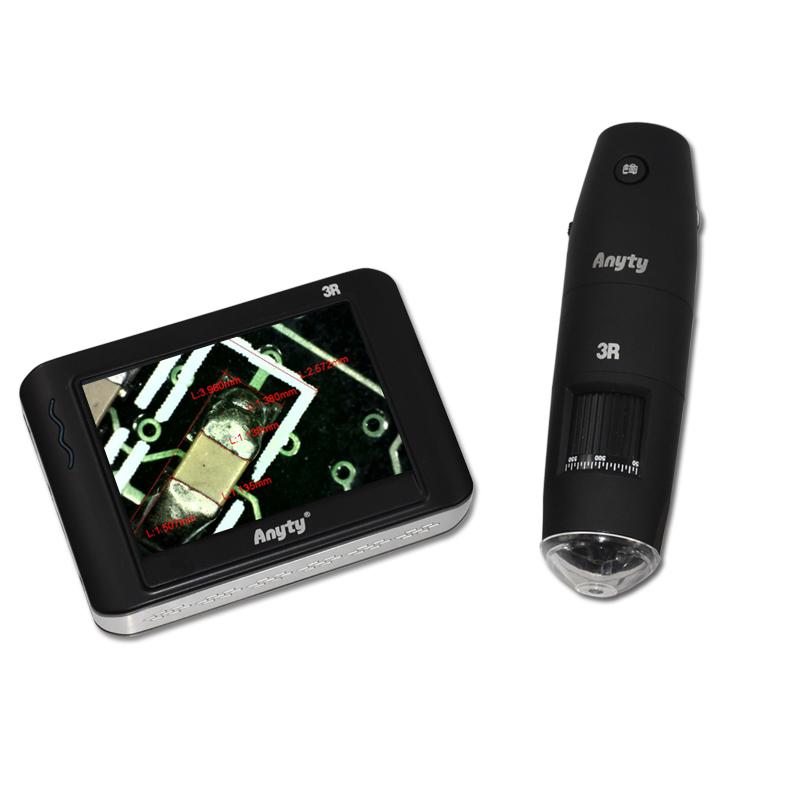

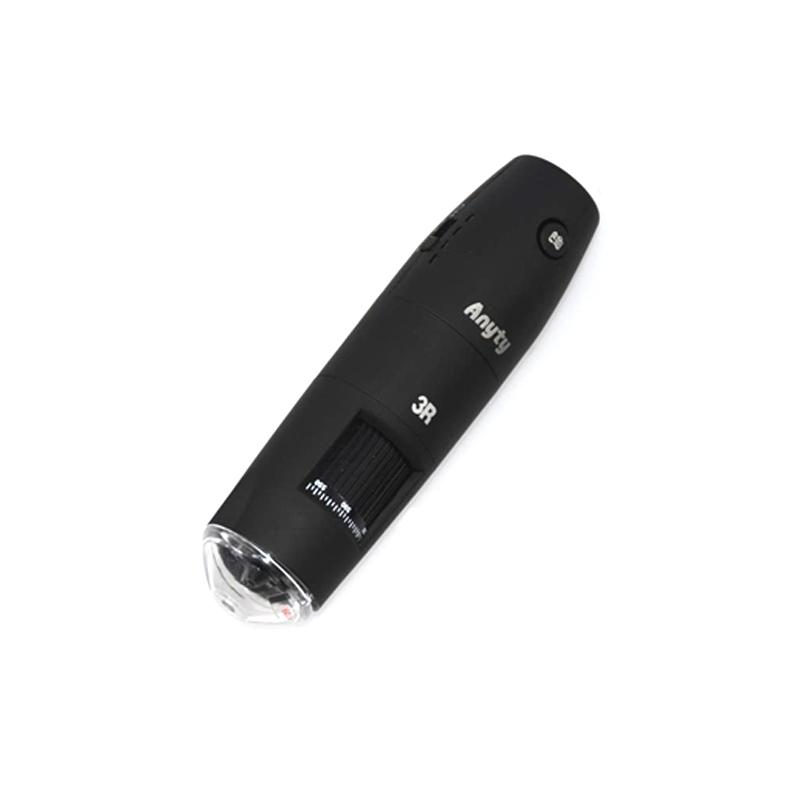

The 3R-MSUSB601 is a ground-breaking digital Microscope product with powerful functions. It can be connected to a computer through a USB data cable to achieve 450-600X adjustable magnification. It can clearly present surface microstructural defects, which is very suitable for analyzing mass inspection problems such as inks coatings, materials, coating failures, and defects. The transmission picture is clear without card and delay problems.
Features
1. Small size, portable and easy to carry. The product is nearly the size of a signature pen, which can be carried with you. It is suitable for use in a mobile and simple environment. It is simple and convenient to use and easy to operate.
2. High degree of restoration and clear picture. Connect computer equipment through USB data cable, the observation picture is clear without delay and no card, and support MAC and WINDOWS Operating system at the same time.
3. Easy to use and diverse functions. With micro-photography, video recording, calibration measurement and other functions, accurate measurement functions, with measurement distance, angle, area and other functions, with diverse use functions, simple and convenient to use.
450-600X manual adjustment magnification, suitable for different observation environments, to meet the diverse needs, to meet the needs of high magnification.
5, can be used while power supply. Working time is long, can be applied to micro detection for a long time.
Principle
Connect computer equipment via USB data cable, use built-in CMOS Optical inspection chip and biaxial Microscope head to realize image acquisition, manually adjust focus and magnification, built-in adjustable warm white light to provide illumination, automatic white equilibrating and exposure control to ensure picture mass.
Applications
Industrial testing field Inks material, printing status, corrosion control, paint production, Decorative Coatings, building materials surface and insect detection and other mass testing and control fields
Steps
1. Connect Microscope and Computer via USB Data Cable
2. Operating system (support Windows/MAC)
Manual adjustment of magnification (450-600X) and focal length (8mm to 300mm)
4. Use microscopic photography, video recording, calibration measurement and other functions for observation
5. Can be used while supplying power to achieve long-term micro-detection
