PUSHEN CJQ-II Paint Film Impact Device 0.5m Impact Height 0~ 50cm Drop Hammer 1000g

Name: PUSHEN CJQ-II Paint Film Impact Device 0.5m Impact Height 0~ 50cm Drop Hammer 1000g
Brand: Pushen
SKU: NB019525
Price: 256.0 USD
Availability: InStock

$ 256.00Ex works

Impact height 0~ 50cm adjustable, drop weight mass 1000g, the structure is simple and easy to operate, punch diaMeter 8mm and die base aperture 15mm cooperate to prevent the edge of the test plate shear.

Model

Get Quote

Category : Film Impact Tester

Brand : Pushen

SKU : NB019525

Service :The delivery and service By NBCLab.Com

Overview

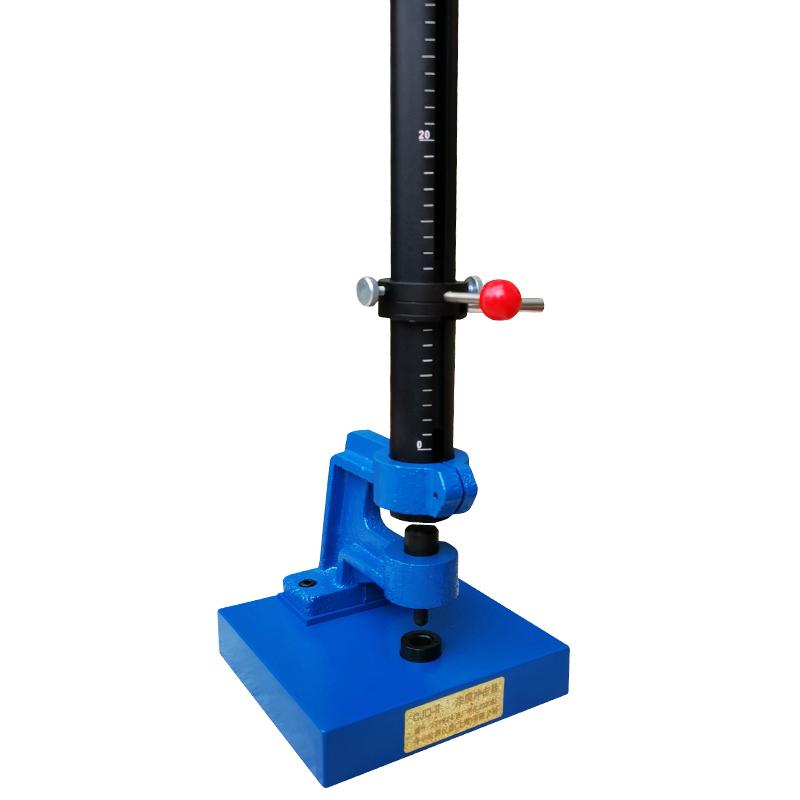

CJQ-II Paint Film Impact Tester is a PUSHEN brand test instrument, mainly used to test the damage degree of paint film after impact. The instrument has the advantages of simple structure and easy operation. The Impact height is 0-50cm, which meets the requirements of GB/T 1732-1993 standard.

Features

1. Simple structure and easy operation 2. Impact Height Range 0-50cm, Division 1cm 3. Drop weight mass 1000g, punch diameter φ 8mm 4. Impact depth 2mm, die base aperture φ 15mm 5. The base contains die base support to prevent the test plate from being subjected to shear force at the inner edge of the die base

Principle

The instrument is placed at a height with a fixed weight weight on the test plate coated with the sample to be tested by Impact, and the Impact force is expressed in kg.cm. The Impact device includes a solid base with a connecting catheter holder, the catheter body with a slot-die, and the middle by using a suitable weight shaft to guide the cylindrical weight to fall, with a marked height to indicate the corresponding reading when the weight falls.

Standards

Determination of Impact Resistance of Paint Film

Steps

1. Coat the sample to be tested on the test plate 2. Place the test plate on the die base support of the instrument 3. Adjust the weight to the required Impact Height 4. Release the heavy hammer to free fall Impact test plate 5. Observe and record the degree of damage to the paint film

Impact height
0~50 cm
Division
1 cm
Drop weight mass
1000 g
Punch diameter
Φ8mm
Impact depth
2mm
Die base concave hole diameter
Φ15mm
Meet the standard
Determination of Impact Resistance of Paint Film
Dimension
200*200*800mm
Shipment weight
10 kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
