Overview

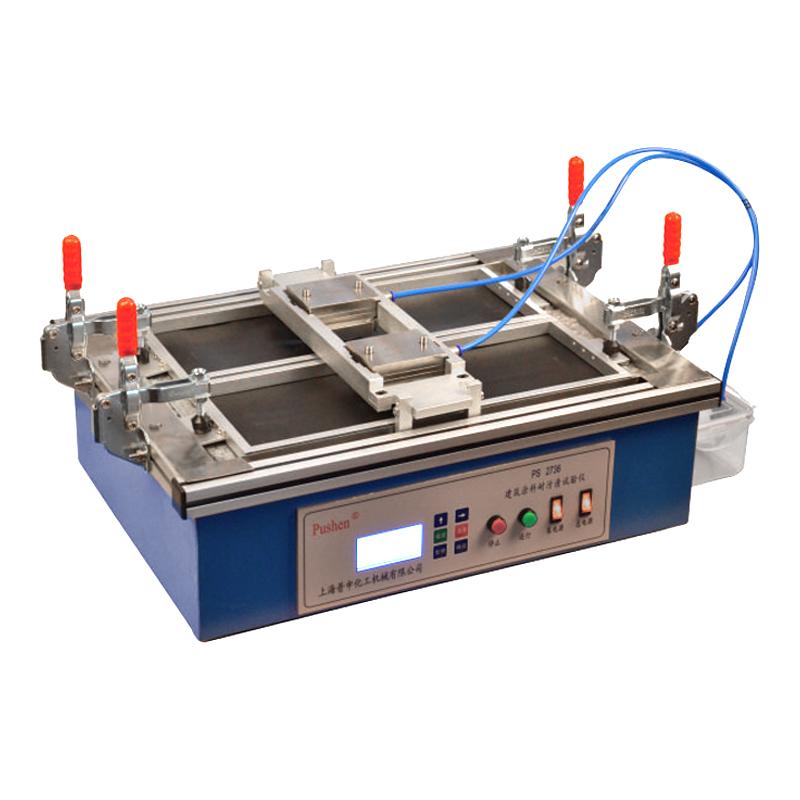

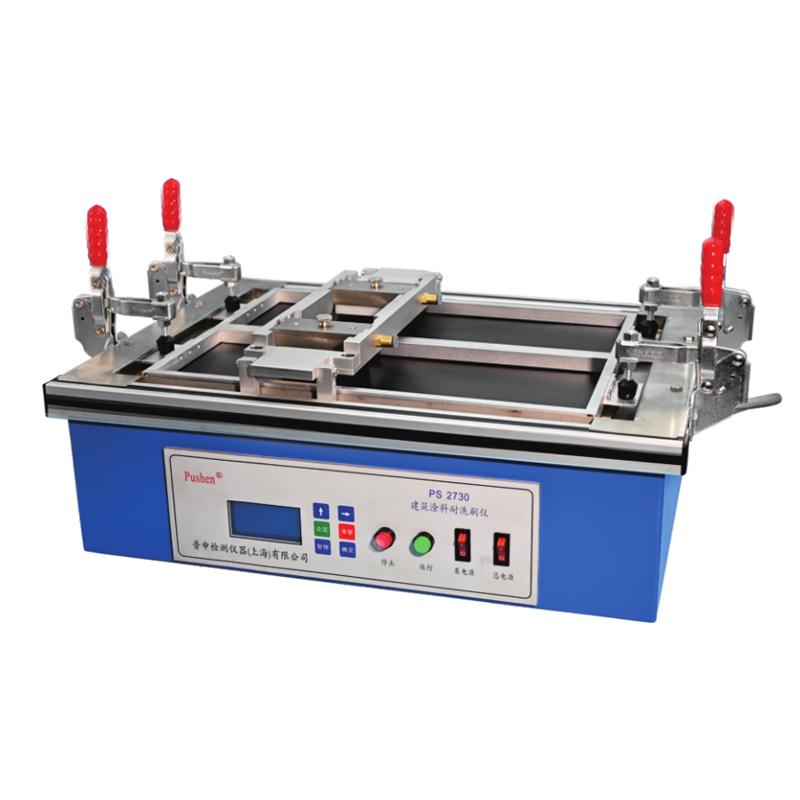

Architectural coatings Scrub Resistance Tester (model JTX-II) is an instrument used to evaluate the washing resistance performance of coatings. It can also evaluate the performance of paints, Eletroplating, flooring, overlay, wood density and other film composite treatment surfaces. The instrument clearly displays the number of washes through the LCD screen, and evaluates the washing resistance performance of coatings according to the number of washes. It is a verification instrument required by paint manufacturers and research departments.
Features
1, the use of professional parallel carriage, so that the brush in the working process always maintain parallel movement, constant weight, to overcome the card brush, brush and swing phenomenon
2. Adopt a new type of linear reciprocating mechanism to improve nonlinear reciprocating motion, making the scrubbing uniform in 300mm Travel
3. Adopt a water pump automatic circulation soap liquid delivery system to achieve automated control and reduce manual soap liquid addition work
4, using 64 × 128 point array LCD display, clear display, easy to operate, can display Sensor dynamic information, with data storage power-off memory function
Principle
The instrument accelerates the simulated abrasion and scratch test by two brushes to wash the paint applied to the standard test plate. The liquid solution of the scruf placed in the container next to the instrument is transported to the brush by the pump, and the pump can be controlled to open or close during the scruf experiment, and the liquid Flow rate can be accurately adjusted.
Applications
Interior-wall paint, Wallpaper, Carpet
Standards
GB/T 9755、GB/T 9266、ASTM D 2486、ASTM D 3450、ISO 11998
Steps
1. Place the standard test plate on the instrument
2. Choose tools such as brushes, scruf pads, sponges or cleaning cloths as needed
3. Set scruf parameters and start the instrument
4. Monitor the number of washes through the LCD screen
5. Evaluate the washing performance of the paint according to the number of washing times
Notice
• Power supply voltage 220V 50Hz before use
• Note that the brush size is 38 * 90mm and the weight is 450g when operating.
• Scruf Travel 300mm, scruf speed 37cpm
• Regularly check whether the automatic circulation soap liquid system of the water pump is working normally
• The instrument weight is 40kg, pay attention to safety when handling
