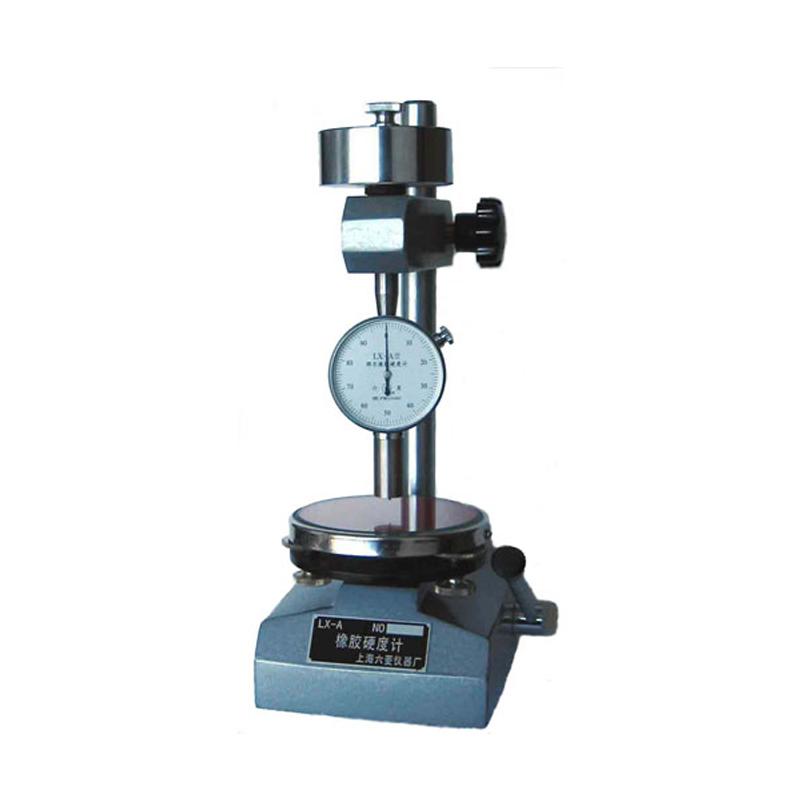

LIULING LX-A Shore rubber hardness Gauge

Name: LIULING LX-A Shore rubber hardness Gauge
Brand: LiuLing
SKU: NB019818
Price: 519.0 USD
Availability: InStock

$ 519.00Ex works

Pin Travel 0~ 2.5mm, Measurement range 0~ 100HA, error +/- 1HA, can be used in the matching measuring rack or handheld, to meet a variety of rubber hardness testing needs.

Model

LX-A (complete machine)

Get Quote

Category : Shore Durometer

Brand : LiuLing

SKU : NB019818

Service :The delivery and service By NBCLab.Com

Overview

The LX-A Shore A rubber hardness gauge is a complete product of the LIULING brand, used to determine the Hardness of vulcanized rubber and its analogs. The hardness gauge can be installed on the matching LX-A fixed load measuring rack to perform hardness testing on rubber test pieces in the laboratory, or it can be used to carry out on-site Hardness testing on rubber objects on the equipment with a watch head.

Features

Implement a number of international and national standards, including ASTM D 2240-05, JIS K 6253-2006, GB/T 2411-2008 (equivalent to ISO 868:2003), GB/T 531.1-2008 (equivalent to ISO 7619-1-2004) and JJG 304-2003 2. Travel range 0~ 2.5mm, resolution 1HA, Measurement range 0~ 100HA 3. Measurement error +/- 1HA, pressure needle end pressure 0.55~ 8.05N (56.1gf~ 821gf) 4. Support both laboratory fixed testing and handheld field testing

Principle

The LX-A Shore A rubber hardness gauge is pressed into the surface of the rubber sample under a specific pressure by the pressing needle, and is converted into the Shore Hardness value according to the pressing depth. The pressure at the end of the pressing needle varies in the range of 0.55~ 8.05N, corresponding to different pressing depths, and finally shows the Hardness value in the range of 0~ 100HA.

Applications

Determination of Hardness of Vulcanized Rubber and Its Analogues

Standards

ASTM D 2240-05、JIS K 6253-2006、GB/T 2411-2008、ISO 868:2003、GB/T 531.1-2008、ISO 7619-1-2004、JJG 304-2003

Pin Travel Range
0mm~2.5mm
resolution
1HA
Measurement Range
0HA~100HA
Precision
±1HA
crimp end force
0.55N~8.05N (56.1gf~821gf)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
