LIULING LX-C rubber and plastic microporous hardness Gauge machine, compression rate 50% Stress above 49kPa

Name: LIULING LX-C rubber and plastic microporous hardness Gauge machine, compression rate 50% Stress above 49kPa
Brand: LiuLing
SKU: NB019822
Price: 519.0 USD
Availability: InStock

$ 519.00Ex works

The pressure spring is used to achieve a constant linear relationship, the pressing needle Travel 0-2.5 mm, measurement error +/- 1HC, can be used in hand or installed on the measuring rack, suitable for the test of microporous materials for shoes.

Model

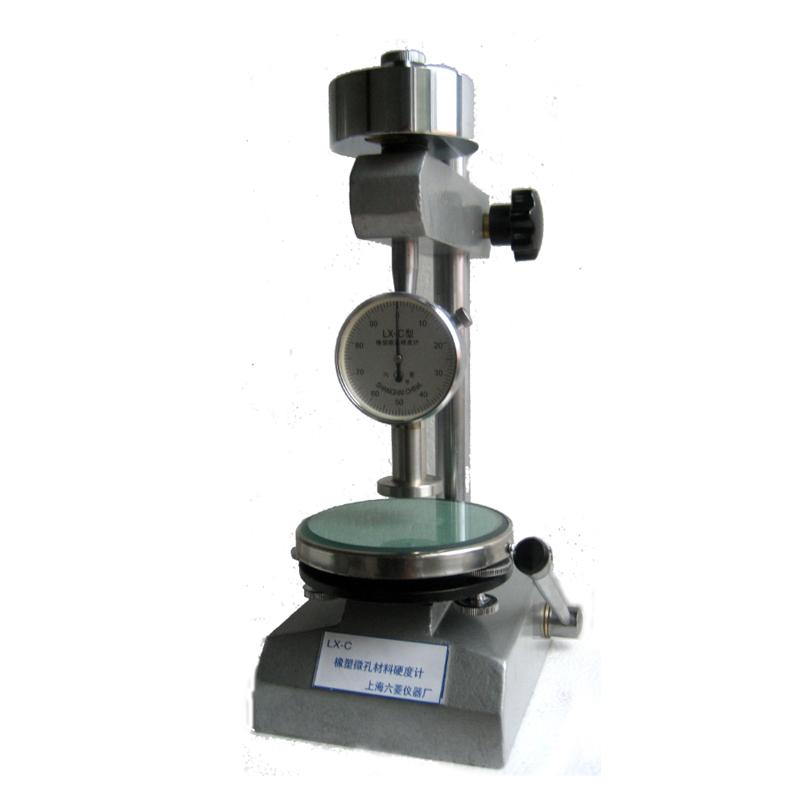

LX-C (complete machine)

Get Quote

Category : Shore Durometer

Brand : LiuLing

SKU : NB019822

Service :The delivery and service By NBCLab.Com

Overview

The LX-C type rubber and plastic microporous material hardness gauge is an instrument for measuring the Hardness of rubber and plastic microporous material products. It is suitable for measuring the hardness of materials used in shoes made of rubber and plastic materials containing foaming agent with a compression rate of 50%. It implements the HG/T2489-2007 industry standard of the Ministry of Chemical Industry. It adopts the Japanese Asker-c type rubber hardness gauge pressure spring to apply pressure to the pressing needle and the constant linear relationship between the displacement of the pressing needle extending out of the pressing plate. It can be installed on the matching fixed load measuring rack or handheld watch head for measurement.

Features

1. Suitable for the determination of microporous hardness of materials for shoes with a compression rate of 50% and a stress of more than 49 kPa 2. Implement HG/T2489-2007 chemical industry standards 3. Adopt Japanese Asker-C type rubber hardness gauge pressure spring technology 4. Can be used with fixed load measuring rack or handheld measurement 5. Travel range 0~ 2.5mm, resolution 1HC 6. Measurement range 0~ 100HC, measurement error +/- 1HC 7. Pressure range of needle end 0.539~ 8.379N (55.0gf~ 854.4gf)

Principle

Hardness values of microporous materials were determined by measurement of displacement of the pins under specific compression conditions based on the linear relationship between the pressure exerted by the pressure spring on the pins and the displacement of the pins extending out of the platen.

Applications

Determination of hardness of materials for shoes, hardness testing of rubber and plastic microporous materials

Standards

HG/T2489-2007 "Shoe microporous hardness of materials test method"

Steps

1. Install the hardness gauge on the matching constant load measuring rack or hand-held watch head 2. Measurement of materials on rubber and plastic microporous material test pieces or equipment 3. Read the Hardness value displayed by the hardness gauge

Notice

• Only suitable for rubber and plastic microporous materials with a compression ratio of 50% and a stress of more than 49 kPa • Make sure the material contains blowing agent during measurement • Confirm the calibrated state of the instrument before use • Avoid using 0~ 100HC beyond the Measurement range • Be careful to keep the pressure needle clean to avoid damage

Pin Travel Range
0mm~2.5mm
resolution
Hc
Measurement Range
0OHc~100Hc
Precision
±1Hc
crimp end force
0.539N~8.379N (55.0gf~854.4gf)
