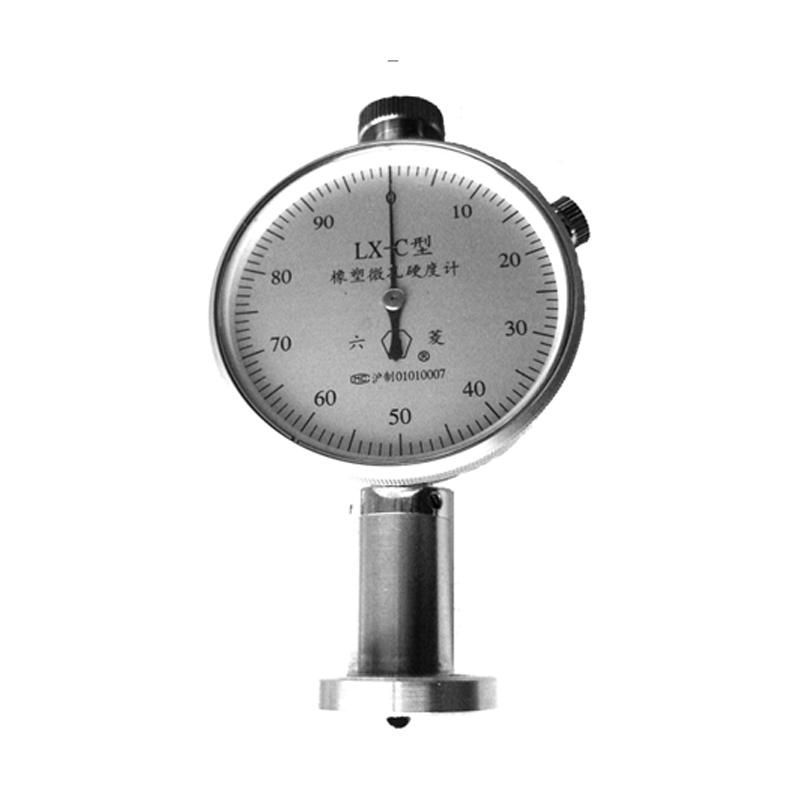

LIULING LX-C rubber and plastic microporous hardness Gauge, compression rate 50% Stress above 49kPa

Name: LIULING LX-C rubber and plastic microporous hardness Gauge, compression rate 50% Stress above 49kPa
Brand: LiuLing
SKU: NB019823
Price: 248.0 USD
Availability: InStock

$ 248.00Ex works

The pressure spring constant linear relationship, pressure needle Travel 0-2.5 mm, measurement error +/- 1HC, can be hand-held or installed measuring frame, suitable for shoe microporous hardness of materials testing.

Model

LX-C (single form)

Get Quote

Category : Shore Durometer

Brand : LiuLing

SKU : NB019823

Service :The delivery and service By NBCLab.Com

Overview

LX-C type rubber and plastic microporous hardness gauge is an instrument specially used by LIULING brand to measure the Hardness of rubber and plastic microporous material products. It is suitable for the determination of microporous hardness of materials for shoes with a stress of 49 kPa or more when the compression rate is 50%. It can be installed on a matching fixed load measuring rack for laboratory testing, or it can be used to carry out Hardness measurement of materials on the equipment with a hand-held watch head.

Features

1. Implement HG/T2489-2007 Ministry of Chemical Industry industry standards 2. Adopt Japanese Asker-C type rubber hardness gauge pressure spring technology 3. Maintain a constant linear relationship between needle pressure and displacement 4. Support laboratory fixed measurement and handheld field measurement in two ways 5. Measurement range, covering 0~ 100HC

Principle

Based on the Japanese Asker-c rubber hardness gauge pressure spring technology, the constant linear relationship between the pressure exerted by the pressure spring on the pressure pin and the displacement of the pressure pin extending out of the pressing plate is used to determine the hardness of materials. When the pressure pin compresses the material, the Hardness value of the material is calculated by measuring the displacement of the pressure pin.

Applications

Determination of microporous hardness of materials for shoes

Standards

HG/T2489-2007

Steps

1. Install the hardness gauge on the matching constant load measuring rack or hand-held watch head 2. Aim the crimp at the surface of the rubber and plastic microporous material to be tested 3. Apply pressure to compress the material 4. Read the Hardness value displayed by the hardness gauge 5. Record measurement results

Notice

• Only suitable for rubber and plastic microporous materials with a stress of more than 49 kPa at a compression rate of 50% • Confirm that the material meets the scope of application before measurement • Keep the needle clean to avoid affecting Measurement accuracy • Avoid severe impact and vibration when using Periodically calibrated to ensure measurement accuracy

Pin Travel Range
0mm~2.5mm
resolution
Hc
Measurement Range
0OHc~100Hc
Precision
±1Hc
crimp end force
0.539N~8.379N (55.0gf~854.4gf)
