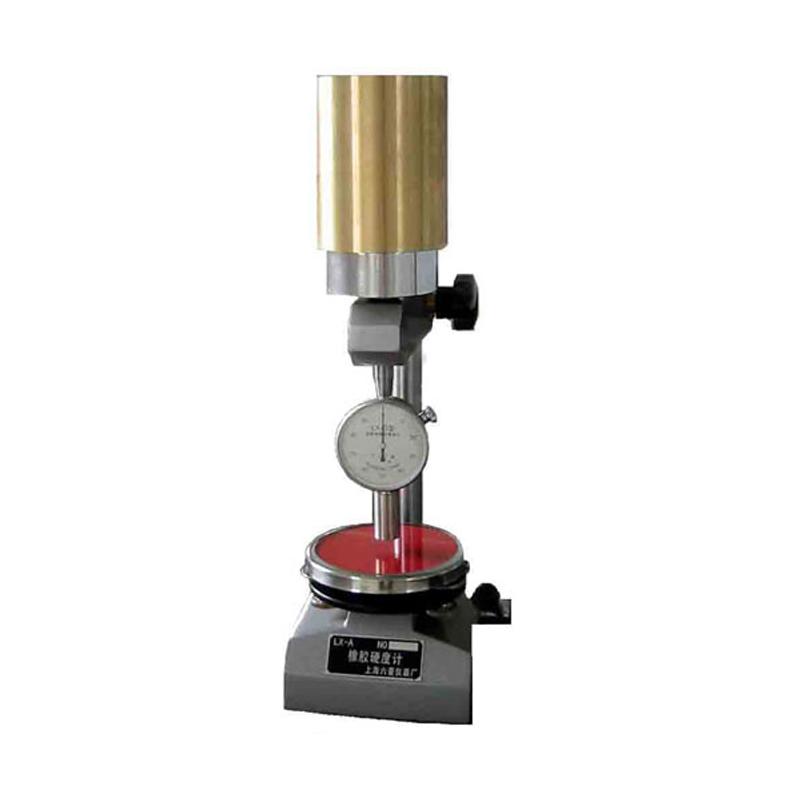

LIULING LX-D High Hardness Rubber hardness Gauge Shore Type D, Pin Travel 2.5mm

Name: LIULING LX-D High Hardness Rubber hardness Gauge Shore Type D, Pin Travel 2.5mm
Brand: LiuLing
SKU: NB019826
Price: 853.0 USD
Availability: InStock

$ 853.00Ex works

Suitable for materials such as high Hardness rubber and engineering plastics, pressing needle Travel 0~ 2.5mm, Measurement range 0~ 100HD, error +/- 1HD, in line with ASTM D 2240-05 and GB/T2411-2008 standards.

Model

LX-D (complete machine)

Get Quote

Category : Shore Durometer

Brand : LiuLing

SKU : NB019826

Service :The delivery and service By NBCLab.Com

Overview

LIULING LX-D high Hardness rubber hardness gauge is an instrument used to determine the hardness of materials with high Hardness rubber of Shore A type Hardness greater than 90 HA, and can also be used to determine the Hardness value of engineering plastics, frp and other similar high Hardness materials. The hardness gauge device can measure the Hardness of hard rubber test pieces in the laboratory on the same type of fixed load measuring rack produced in the supporting production.

Features

1. Travel range of pressing needle: 0~ 2.5mm 2. Resolution: 1HD 3. Measurement range: 0~ 100HD 4. Measurement error ： +/- 1 HD 5. Pressure at the end of the needle: 0~ 44.5N (0gf~ 4538gf)

Principle

Hardness gauge is used to measure the material by pressure applied by the crimping needle. Hardness measurement is carried out on the test piece on the constant load measuring rack based on the principle of Shore hardness testing.

Applications

High Hardness Rubber, Engineering Plastics, FRP

Standards

ASTM D 2240-05、JIS K 6253-2006、GB/T2411-2008、ISO 868：2003、GB/T 531.1-2008、ISO 7619-1-2004、JJG 304-2003

Steps

1. Install the hardness gauge on the matching constant load measuring rack 2. Place the test piece in the test position 3. Pressure measurement 4. Read Hardness Value

Notice

• Ensure that the hardness gauge is correctly installed on the constant load measuring rack • Confirm that the test piece meets the test requirements before measurement • Strictly follow the operation steps for measurement • Regularly calibrate instruments to ensure Measurement accuracy

Pin Travel Range
0mm~2.5mm
resolution
1HD
Measurement Range
0HD~100HD
Precision
±1HD
crimp end force
0N~44.5N（0gf~4538gf）

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
