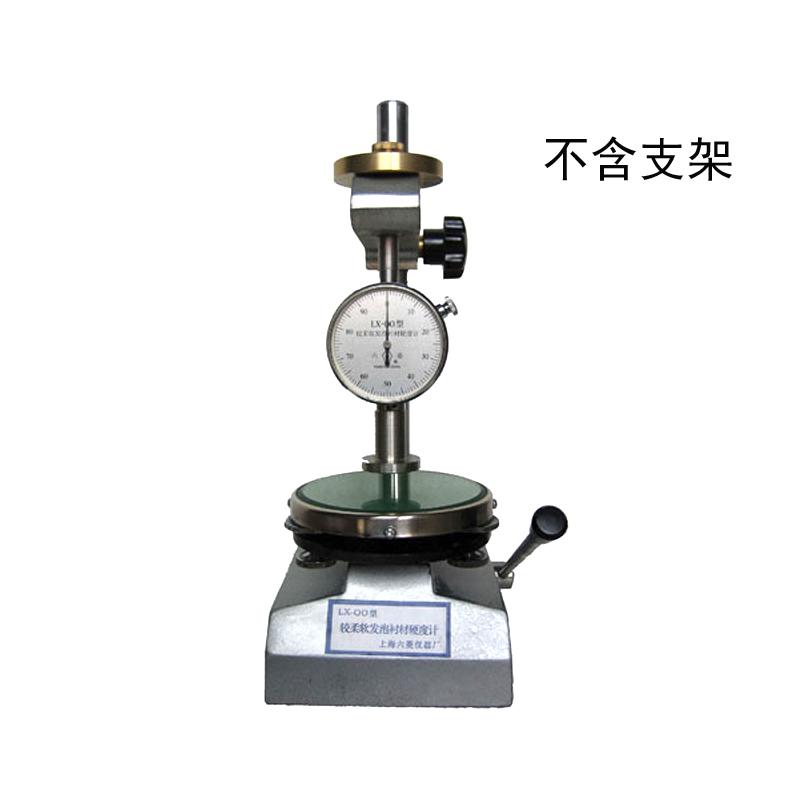

LIULING LX-OO Soft foam lining hardness Gauge, High Sensitivity Pin Travel 0~ 2.5mm

Name: LIULING LX-OO Soft foam lining hardness Gauge, High Sensitivity Pin Travel 0~ 2.5mm
Brand: LiuLing
SKU: NB019830
Price: 893.0 USD
Availability: InStock

$ 893.00Ex works

Travel pressure needle 0~ 2.5mm, resolution 1HOO, measurement error +/- 1H00, Sensitivity, suitable for soft rubber foam rubber and other hardness of materials, need to be used with constant load measuring frame.

Model

LX-OO (single form)

Get Quote

Category : Shore Durometer

Brand : LiuLing

SKU : NB019830

Service :The delivery and service By NBCLab.Com

Overview

The LX-OO softer foam lining hardness gauge is an instrument for measuring the Hardness of softer rubber foam rubber, foam rubber roller, chewing gum and the like. It implements the American standard ASTM D2240-2005, with high Sensitivity, and can measure the Hardness of soft rubber foam rubber in the laboratory. In order to ensure the Measuring accuracy, the hardness gauge should be installed on the LX-OO model fixed load measuring rack produced by the supporting production.

Features

1. Sensitivity 2. Suitable for the determination of softer hardness of materials 3. It needs to be used with a fixed load measuring rack to ensure Measuring accuracy

Principle

By applying pressure to the material, the Hardness value of the material was determined according to the travel range of the crimp from 0 to 2.5 mm and the pressure at the end of the crimp from 0.203 to 1.111 N.

Applications

Softer rubber foam rubber, foam rubber rollers, chewing gum and the like

Standards

ASTM D2240-2005

Steps

1. Install the hardness gauge on the matching LX-OO model constant load measuring rack 2. Point the crimp at the material to be tested 3. Read the Hardness value displayed by the hardness gauge

Notice

• Measuring accuracy, the hardness gauge must be installed on the supporting LX-OO model constant load measuring rack • Note that the pressure range at the end of the crimp is 0.203 to 1.111 N (20.71 gf - 113.37gf) • The measurement error is +/- 1H00, and the accuracy requirements should be paid attention to when using it

Pin Travel Range
0mm~2.5mm
resolution
1HOO
Measurement Range
0HOO~100HOO
Precision
±1HOO
crimp end force
0.203 N to 1.111 N (20.71 gf - 113.37gf)
