Overview

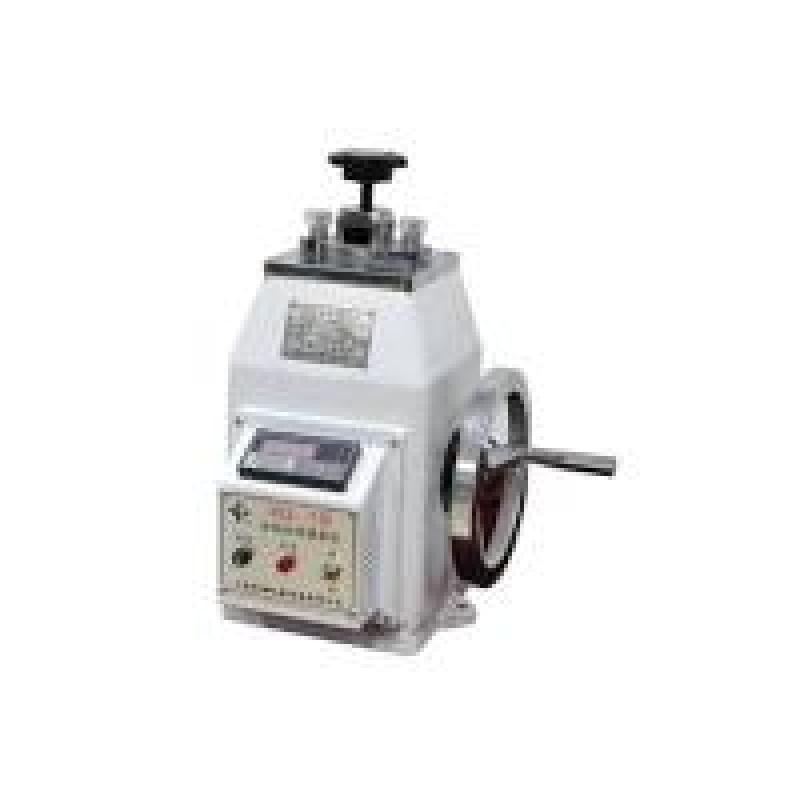

XQ-1 type metallographic sample inlay machine is a YUZHOU brand metallographic sample prepative equipment, dedicated to the inlay process of samples that are not easy to hold, small, irregular shape to protect the edge or need to be automatically ground and polished. The machine adopts hand-crank mechanical pressure, the heating temperature is controlled by a digital temperature controller, the performance is stable and reliable, and the operation is convenient. It is an economical choice for sample inlay. It is limited to thermoset materials such as bakelite powder, electric jade powder, etc.
Features
1. Adopt hand-crank mechanical pressurization, easy to operate.
2. The heating temperature is controlled by the digital temperature controller, and the performance is stable and reliable.
3. Suitable for thermosetting materials, such as bakelite powder, electric jade powder, etc.
4. Mold sleeve specification is 40mm, cavity height 89mm, Heating power 650W.
5. The input power supply is single-phase 220V, 50Hz, 6A, Dimension 410 * 390 * 420mm, Net weight 50kg.
Principle
XQ-1 metallographic sample inlay machine applies pressure to the sample by hand mechanical pressurization, and at the same time uses a heating system (Heating power 650W) to provide stable heating under the control of a digital temperature controller, so that thermosetting materials such as bakelite powder or electric jade powder are cured in the mold sleeve to complete the sample inlay process.
Applications
Metallographic specimen preparation, materials science laboratory, metal material analysis
Steps
1. Prepare specimens and thermoset materials (e.g. bakelite powder or electric jade powder).
2. Place the specimen and material into a 40 mm die sleeve.
3. Use a hand-cranked mechanical pressurizing device to apply pressure.
4. Set and control the heating temperature through a digital thermostat.
5. Wait for the heat curing process to complete.
6. Remove the inlaid sample.
Notice
• This machine is limited to thermoset materials, such as bakelite powder, electric jade powder, etc.
• Make sure the input power is single-phase 220V, 50Hz, 6A before operation.
• Pay attention to uniform force when using hand crank to avoid damage to the sample.
• Pay attention to temperature control during the heating process to prevent overheating.
• Regularly check equipment performance to ensure stable operation.
