Overview

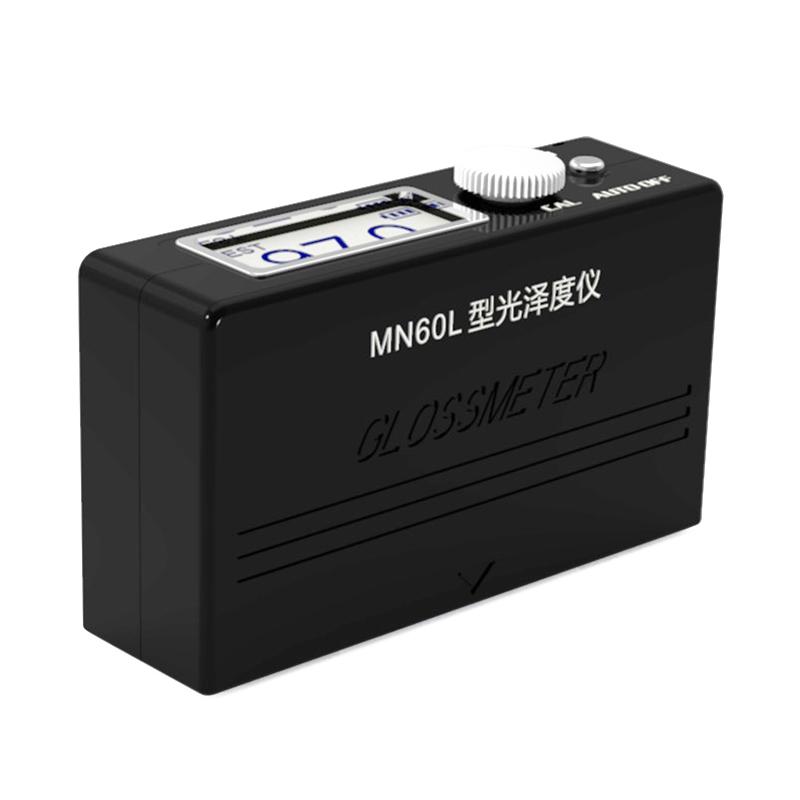

QILI MN60-L glossmeter is a special gloss measurement instrument for Stone. It is designed and produced in accordance with international standard ISO2813, foreign standard ASTM D523, DIN 67530 and national standard GB9754, GB9966, GB/T13891. The technical indicators meet and exceed the requirements of the first-level working machine in the JJG696-2002 "Mirror-oriented Glossiness Meter and Glossiness Board" appraisal specification. Mainly used for the measurement of surface Glossiness of marble, granite, terrazzo and other building decoration materials.
Features
1. Small size, light weight, real laptop
2. Power saving, worry-free and effective, one battery can be used continuously for nearly 60 hours to measure nearly 10,000 data
3. High Stability, Instant Testing
4. Quartz crystal standard version, with extremely low annual change rate
5. LED Long Life Illuminant
6. Automatic shutdown function saves power and avoids battery failure caused by liquid flow
Principle
The glossmeter uses 60 ° Measurement Angles, illuminates the measured Stone surface through LED Illuminant, and calculates the Glossiness value by measuring the intensity of reflected light. Measurement range is 0~ 199GU, Measuring Area is 25 * 50mm.
Applications
Stone such as marble, granite, terrazzo, etc
Standards
ASTM D523, ISO 2813, GB9966.5 (Stone)
Notice
• QILI glossmeter Different batches of shell Color are different, so the shell Color is randomly sent
• Powered by one AA battery
• The measurement port size is 26 * 52mm to ensure that the measured surface size matches
• Instrument weight is 180g, Dimension 114 * 32 * 64mm, easy to carry and use
