Overview

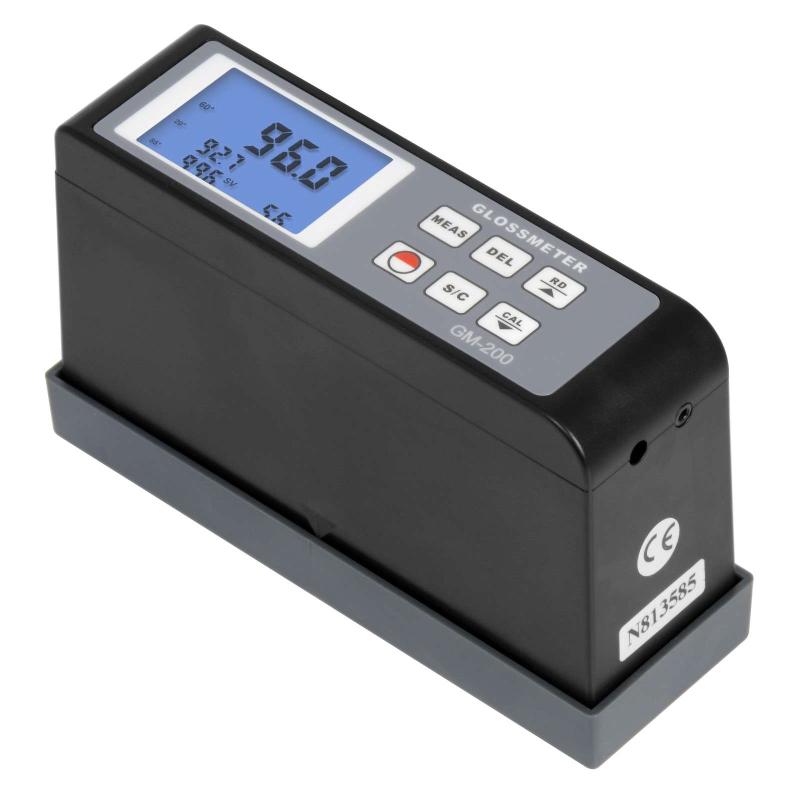

The LANDTEK GM-2000 Glossiness Meter is a Portable measuring instrument for gloss measurement of various material surfaces. It is intelligently designed to support multi-angle measurement and Data storage for quality control of paints, coatings, Stone, paper and many other materials.
Features
1. Compliant with ASTMD-523, ASTMD1455, ASTM C346, ASTMC584, ASTM D2457, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, Gb9754, GB/T13891, GB7706 and GB8807 standards, technical parameters comply with JJG 696-2002 standards.
2. USB data cable output, can be connected to PC.
3. Provide Bluetooth data output selection.
4. Precision construction, strong and durable structure, lightweight appearance, easy to carry.
5. Automatic calibration can be performed by pressing only one key, no manual adjustment is required.
6. Intelligent design, fast measurement, accurate measurement, Repeatability.
7. 56 sets of data can be stored for instant browsing or import into a computer.
8. Built-in high-capacity rechargeable lithium-ion battery, no battery Memory effecy.
9. Backlit display, easy to use in dark rays of light environment.
10. Glossiness of 20 ° angle measurement, 60 ° angle measurement, and 85 ° angle measurement is displayed at the same time.
Principle
The Glossiness Meter assesses Glossiness by measuring the intensity of reflected rays of light on the surface of a material. It irradiates the sample surface with Illuminants at specific angles (20 °, 60 °, 85 °) and detects reflected light, calculating Glossiness Units (GU) according to international standards. Automatic calibration and intelligent processing of the instrument ensure measurement accuracy and Repeatability.
Applications
Gloss measurement on the surface of paints, paints, paints, inks and other coated materials, Gloss measurement on the surface of building decoration materials such as Stone, tiles, profiles, etc. Gloss measurement on the surface of paper, bamboo, wood, plastic, film, etc. Gloss measurement on the surface of other metals and Non-metallic materials
Standards
ASTMD-523、ASTMD1455、ASTM C346、ASTMC584、ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、Gb9754、GB/T13891、GB7706、GB8807、JJG 696-2002
Steps
1. Turn on the instrument power.
2. Press the Automatic calibration button to calibrate.
3. Select the Measurement Angles according to the material Glossiness (20 ° for high Gloss, 60 ° for medium Gloss, and 85 ° for low Gloss).
4. Align the measurement port to the sample surface for measurement.
5. Read the Glossiness value on the display.
6. Single or Continuous Measurement mode can be selected.
7. Data can be stored or exported via USB/Bluetooth.
Notice
* Gloss materials such as paints, inks, plastics, and paper are recommended for 20 ° angle measurement.
* Gloss materials such as paints, inks, plastics, ceramics, marble are recommended for 60 ° angle measurement.
* Low Gloss materials such as low Gloss paint and camouflage coatings are recommended for 85 ° angle measurement.
* Operating temperature in the range of 0~ 40 ℃.
* The relative humidity should be less than 85% RH.
* Automatic calibration before use to ensure accuracy.
* Avoid use in strong light or extreme environments, so as not to affect the measurement results.
