Overview

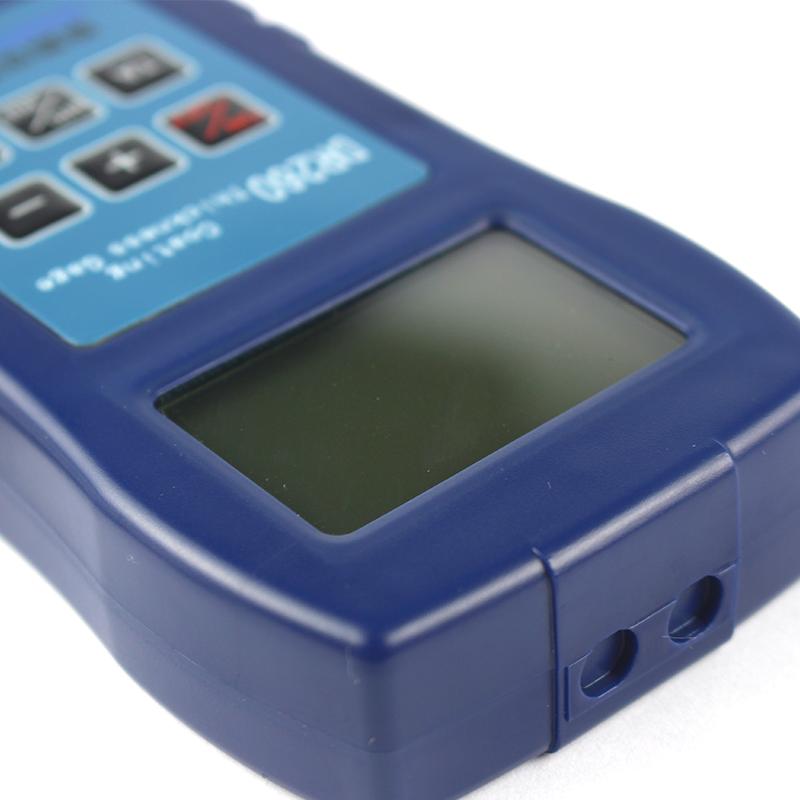

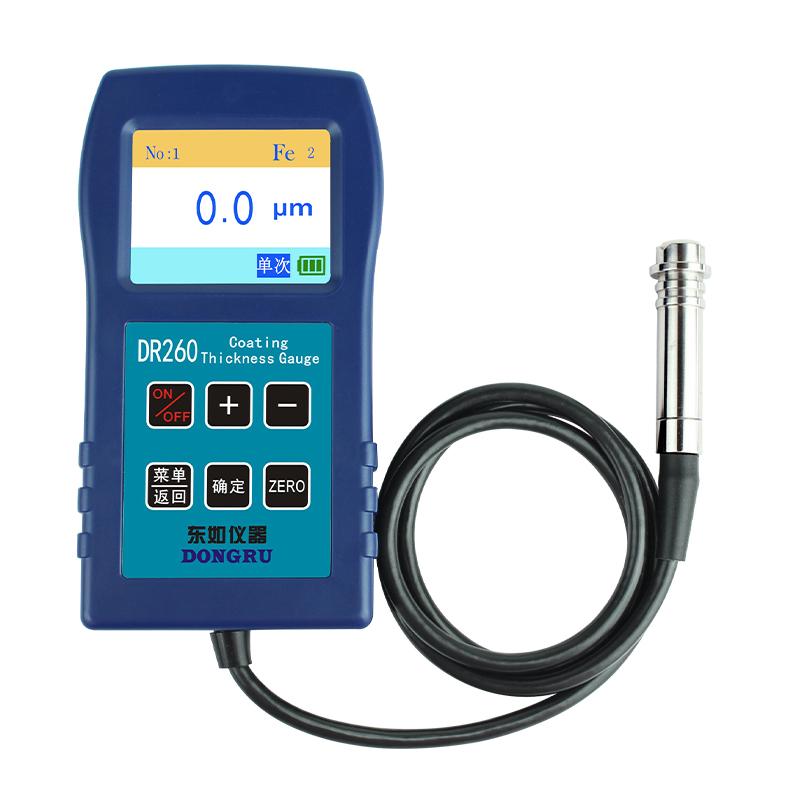

The DONGRU DR260 platings thickness gauge is a magnetic Coating thickness gauge with an external Probe design. Measurement range is 0 to 1250 microns, and thickness data is visually displayed through an LCD screen. The instrument is compact but powerful, with 800 measurement Data storage functions, two Calibration methods and four statistical functions. It is easy to operate, fast speed measurement, high Sensitivity, good accuracy, and supports continuous measurement and PC connection.
Features
1. Simple operation, Test speed, Sensitivity, Measurement accuracy

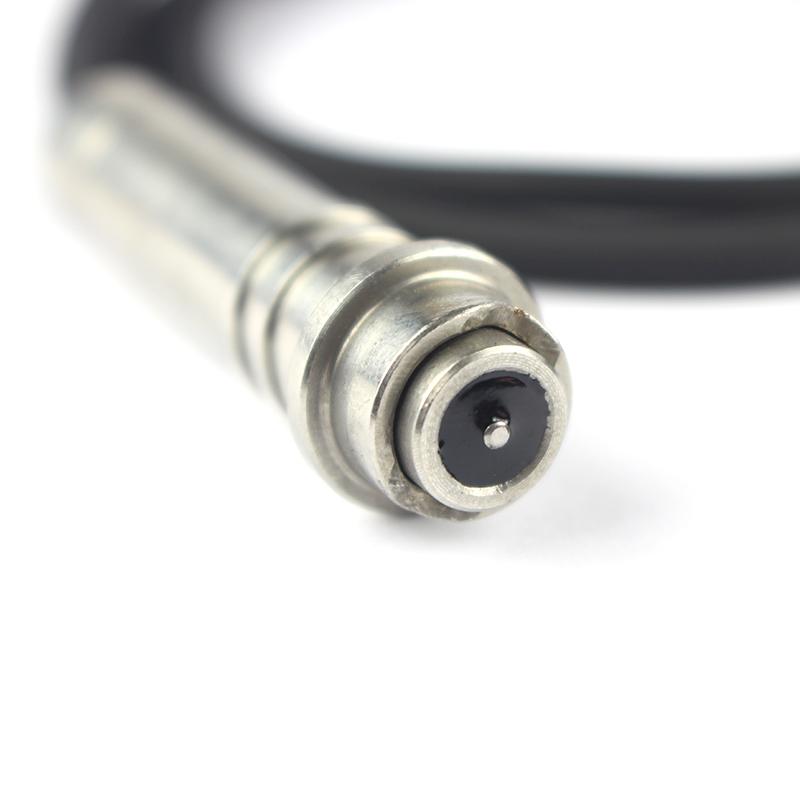

2. Using alloy Probe, durable and accurate
3. Measurement modes: continuous measurement and single measurement
4. With four statistical functions: MAX Maximum (MAX), MIN Minimum (MIN), Average (MEA), measurement number (No)
5. Large-capacity storage, which can be divided into 10 groups of 200 each, capable of storing a total of 2,000 data
6. Store data, view and delete function
7. Calibration methods: zero point calibrating, two point calibrating, multi point calibrating
8. Upper and lower limit alarm function (can be set in single Measurement mode)
9. The operation process is marked with a beep sound (in single Measurement mode)
10. Automatic identification of ferrous and non-ferrous substrates
11. Metric conversion μm/Mil
12. Sunshine mode (used under strong light)
13. Chinese and English bilingual version
14.2.3 inch large color screen large font display
15. Manual/automatic shutdown function
16. Bluetooth synchronous data transmission function (customized)
Principle
The DR260 coating platings thickness gauge uses magnetic thickness measurement method to nondestructive measurement of the thickness of nonmagnetic coatings on magnetic metal substrates (such as steel and iron). The instrument automatically measures the Coating thickness through the probe and displays the thickness value through the display screen.
Applications
Painting industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields
Steps

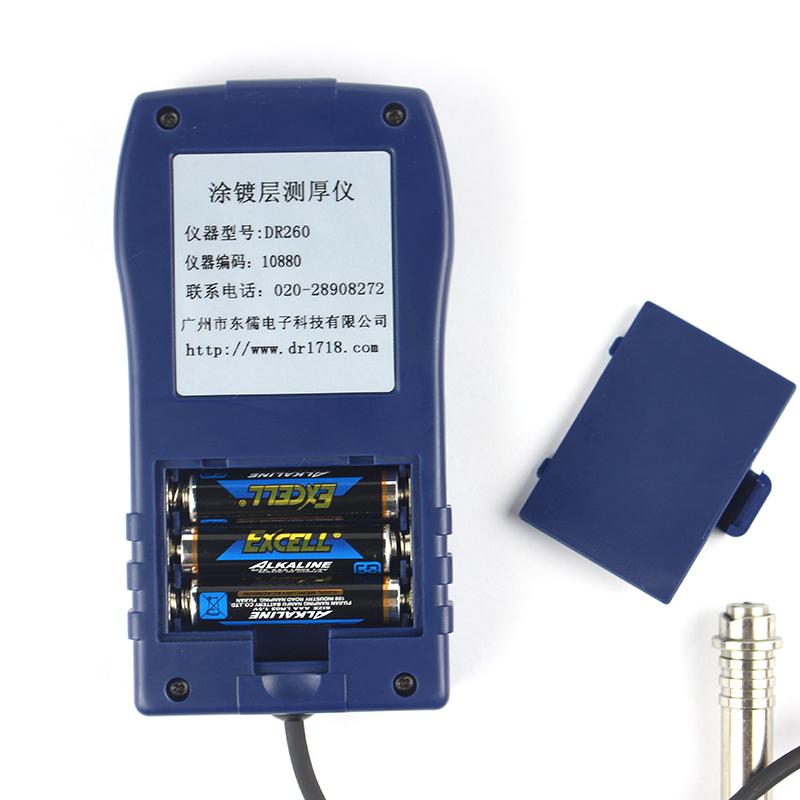

1. After installing the battery, press the "ON/OFF" button to turn it on.
2. After the beep, when "0" is displayed on the LCD screen, the instrument automatically enters the measurement state

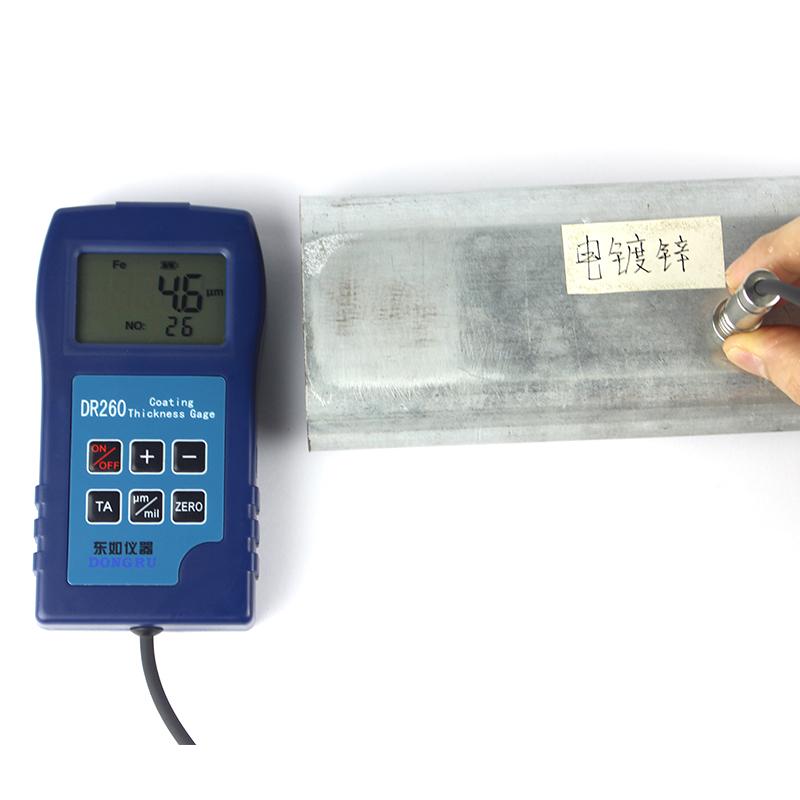

3. Directly press the probe vertically and quickly onto the coated platings on the surface of the workpiece
4. Coating thickness is automatically measured by the platings thickness gauge, and the thickness value is displayed through the display screen
Notice
• Keep the probe vertical during measurement
• Use in relative humidity 20~ 90% RH, no strong magnetic field environment
