Overview

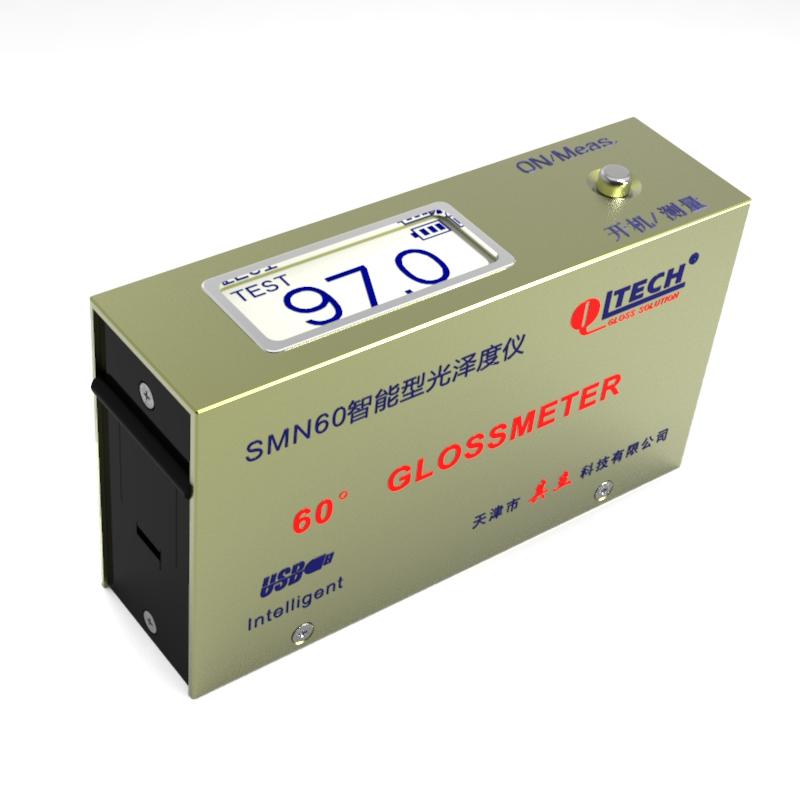

SMN60 full smart glossmeter is a Portable gloss measurement instrument of QILI brand. It is designed and produced in accordance with international standard ISO2813, foreign standard ASTMD523, DIN67530 and national standard GB9754, GB9966, GB/T13891. The various technologies meet and exceed the requirements of JJG696-2002 identification regulations. It has high cost performance and is a good replacement for imported models.
Features
1. Small size, light weight, true all-intelligent portable model.
2. Calibration and measurement are completed with one click, which is convenient and fast.
3. Data statistical measurement can be carried out, and the average value and deviation value can be automatically calculated.
4. Real USB data communication interface.
5. Super power saving design, the last operation two minutes automatic shutdown, a five battery can be measured 100,000 sets of data (can be used for more than half a year).
6. My Gloss 2.0 data transmission software is convenient for statistical data and report generation.
Principle
Glossmeter evaluates the surface Gloss by measuring the Glossiness value of the reflected light on the surface of the object, using 60 ° Measurement Angles with a light spot size of 10 * 20mm to ensure accuracy and Repeatability.
Applications
Automobile, Home Appliances, Musical Instruments, Furniture, Construction, Decoration, Printing, Encasement and other industries
Standards
ISO2813、ASTMD523、DIN67530、GB9754、GB9966、GB/T13891、JJG696-2002
Steps
1. Turn on the power of the device.
2. Perform a one-click calibration operation.
3. Align the measurement port with the surface to be measured for measurement.
4. Connect to the computer through the USB port, use the My Gloss 2.0 software to transfer data and generate reports.
Notice
• Ensure that the measurement surface is clean and drying to avoid affecting the measurement results.
• Use standard or rechargeable batteries and pay attention to the battery level.
• After operation, the device will automatically shut down within two minutes to save power.
Periodically calibrate equipment to ensure measurement accuracy.
