Overview

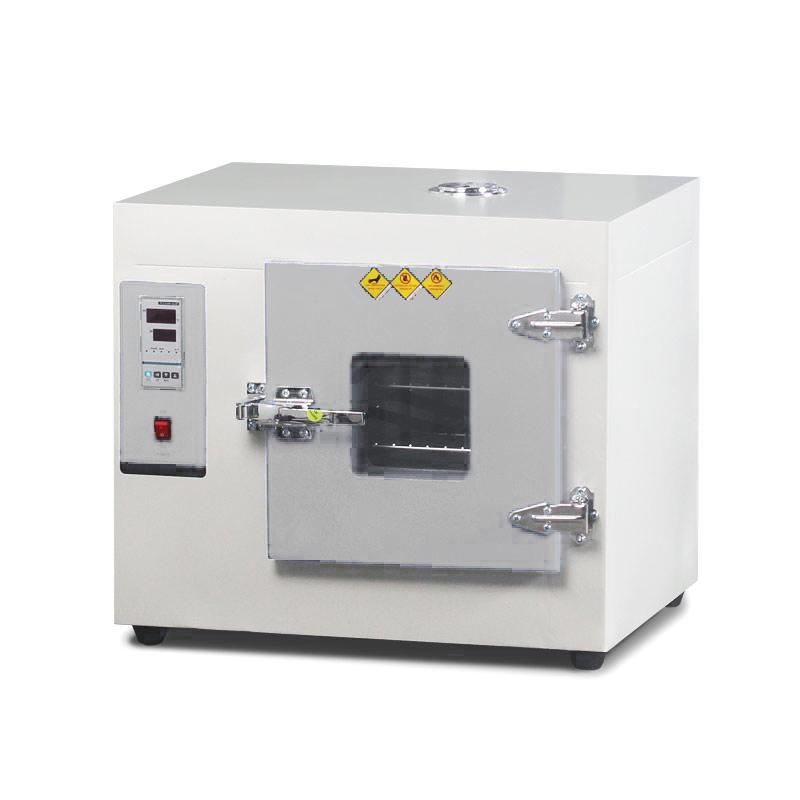

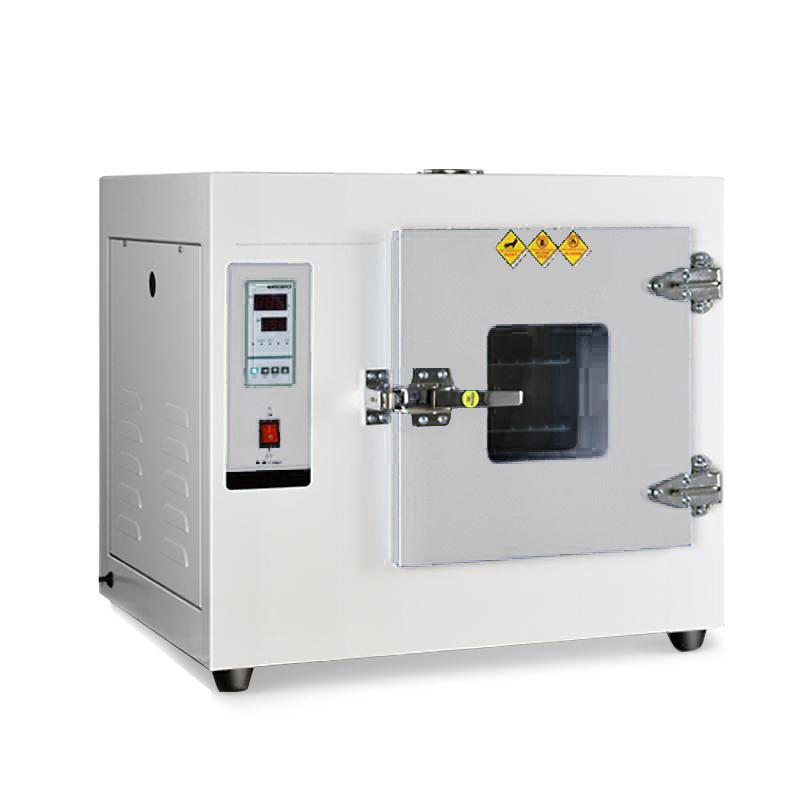

Kenton 101-0A digital display electric air blowing dryer is a drying equipment suitable for industrial and mining enterprises, laboratories and R & D institutions. It adopts a microcomputer intelligent PID digital display thermostat. Temperature range is RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Fluctuation +/- 1%. Inner chamber dimensions are 350 × 350 × 350mm, liner is made of galvanized steel, and the shell is sprayed with metallic paint, which is beautiful and elegant.
Features
1. The thermostat is divided into two types: Dial and microcomputer intelligent PID digital display
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4. The liner is divided into two types: mirror stainless steel and galvanized steel

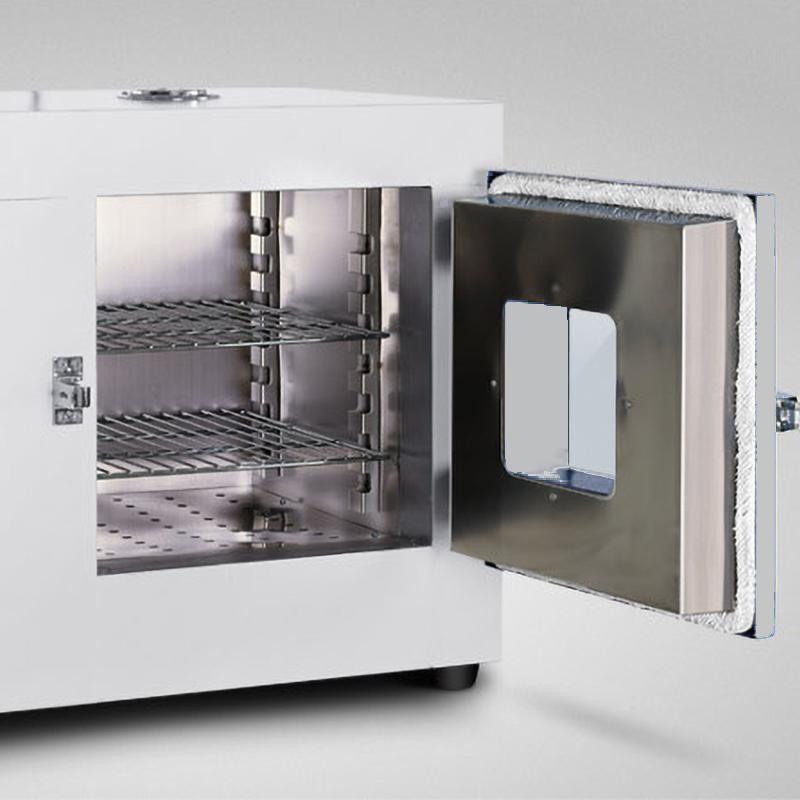

5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications

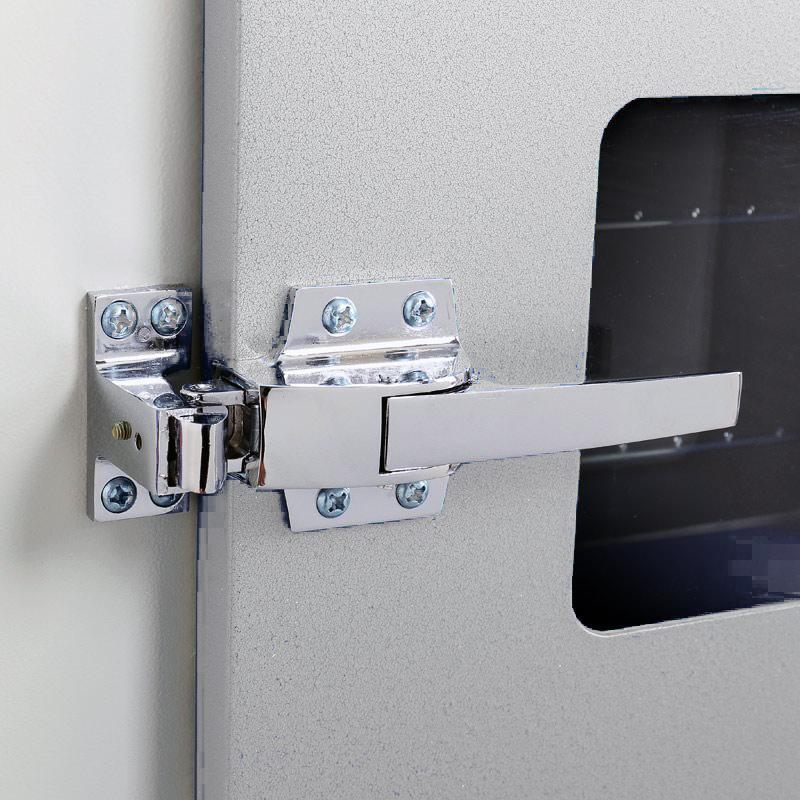

6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
Principle
The drying oven generates heat through the electric heating system, combined with the hot air circulation system (composed of low-noise fans and air ducts) to distribute the temperature evenly inside the studio, and the microcomputer intelligent PID thermostat precisely controls the temperature within the set range to achieve drying, baking and heat treatment functions.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, workshops
Steps
1. Turn on the power supply and turn on the device switch
2. Set the required temperature through the microcomputer intelligent PID digital display thermostat
3. Adjust the height and quantity of shelves in the studio as needed
4. Put in the sample and close the box door
5. Monitor the status of the items in the box through the observation window
6. Turn off the power after use
Notice
• It is not recommended to use it uninterrupted for a long time
• Temperature uniformity requirements and high water content samples are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
• Suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops
