Overview

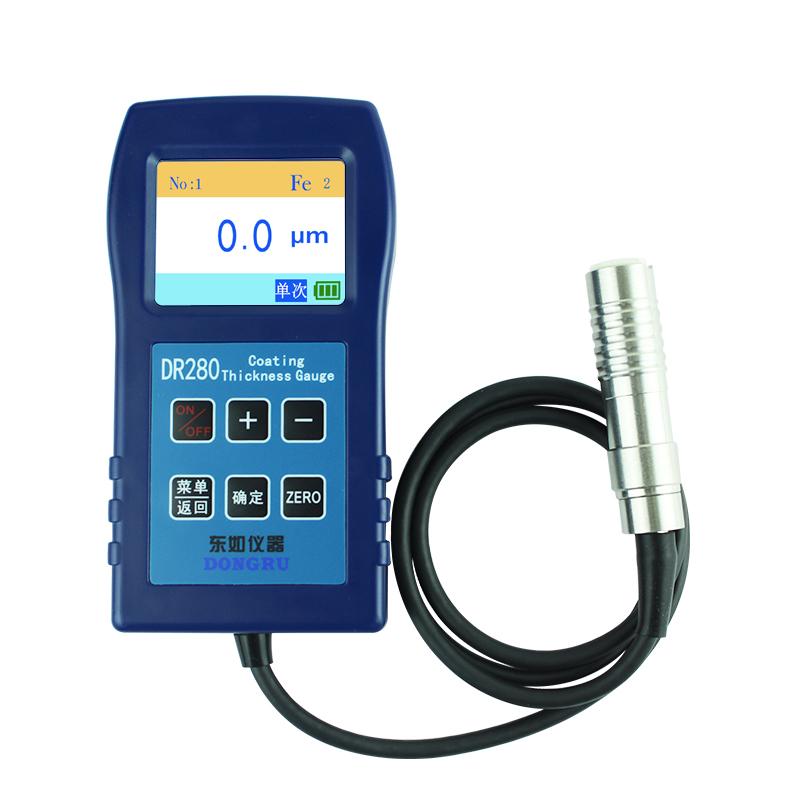

The DONGRU DR280 paint film Coating thickness gauge is a split dual-function precision instrument that connects the host and the Probe through a cable to measure the nonmagnetic Coating thickness on the metal substrate and the nonconductive Coating thickness on the Non-metallic substrate. The instrument uses high-quality internal parts, reliable and stable measurement, and directly displays the data through the display screen. It is suitable for the measurement of the paint layer on the surface of all metal substrates. It can quickly measure the thickness nondestructive, and the measurement is accurate.
Features
1. Simple operation, Test speed, Sensitivity, Measurement accuracy

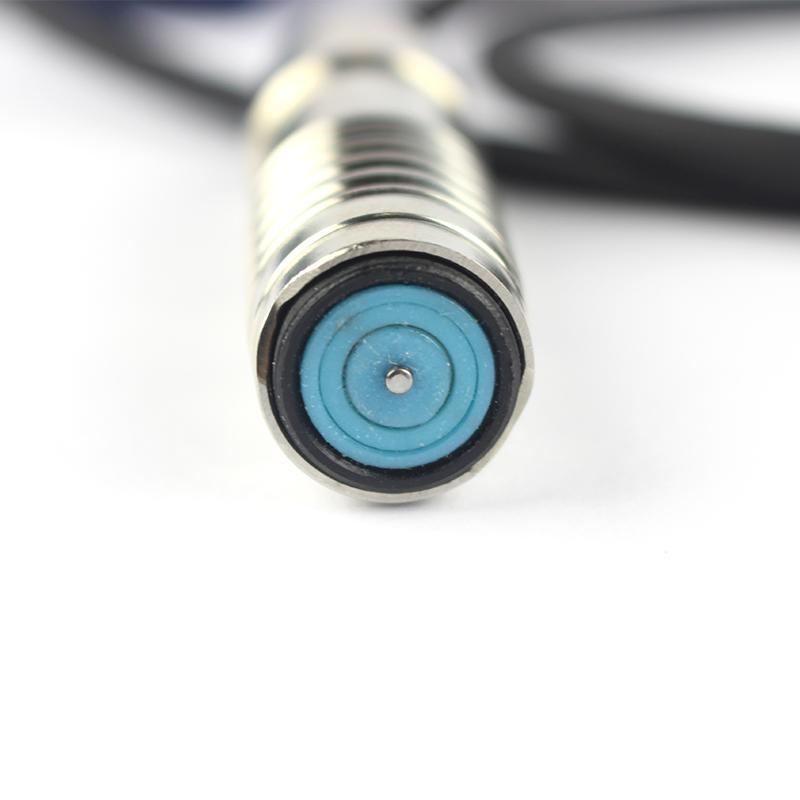

2. Adopt alloy Probe, durable, wear-resistant and pressure-resistant, accurate
3. Measurement modes: continuous measurement and single measurement
4. With four statistical functions: MAX Maximum (MAX), MIN Minimum (MIN), Average (MEA), measurement number (No)
5. Large-capacity storage, which can be divided into 10 groups of 200 each, capable of storing a total of 2,000 data
6. Store data, view and delete function
7. Calibration methods: zero point calibrating, two point calibrating, multi point calibrating
8. Upper and lower limit alarm function (can be set in single Measurement mode)
9. The operation process is marked with a beep sound (in single Measurement mode)
10. Automatic identification of ferrous and non-ferrous substrates
11. Metric conversion μm/Mil
12. Sunshine mode (used under strong light)
13. Chinese and English bilingual version
14.2.3 inch large color screen large font display
15. Manual/automatic shutdown function
16. Bluetooth synchronous data transmission function (customized)
Principle
DONGRU DR280 paint film Coating thickness gauge adopts magnetic Induction + eddy Current Measurement principle, and uses different Measuring methods according to different metal substrates. For magnetic metal substrates (such as steel, iron), use magnetic thickness measurement method nondestructive measurement nonmagnetic coating thickness; for nonmagnetic metal substrates (such as aluminum, copper, stainless steel), use eddy current thickness measurement method nondestructive measurement nonconductive coating thickness.
Applications
Painting industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields
Steps
1. Connect Host and Probe
2. Measurement mode (continuous measurement or single measurement)
3. Automatic recognition or manual setting according to the substrate type
4. Perform calibrating (zero point calibrating, two point calibrating or multi point calibrating)

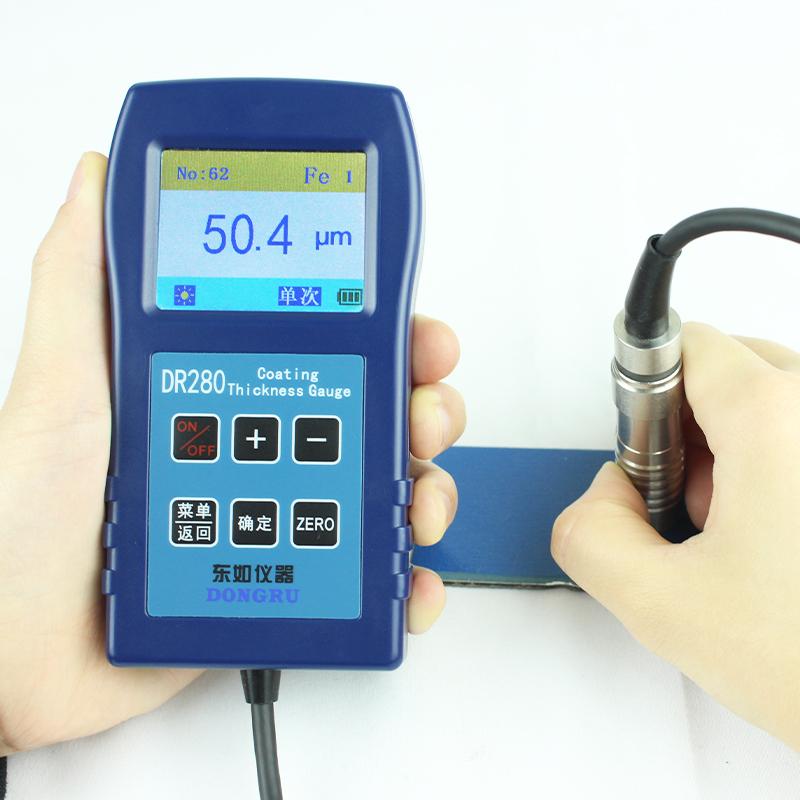

5. Probe placed on the measurement surface
6. Read the measurement data on the display
7. You can choose to store data or view statistical functions
8. Manual or automatic shutdown after use
Notice
• The instrument is a precision instrument and needs to be handled with care to avoid violent vibration
• Probe in full contact with the measurement surface during measurement
• Operating temperature (0~ 60 ℃) and Humidity (20~ 90% RH)
• Minimum radius of curvature measurement: convex 5mm, concave 25mm
• The thinnest substrate thickness is 0.4mm.
• Minimum measurement surface diameter is φ 16mm
• Periodically calibrated to ensure Measurement accuracy
• Please remove the battery when not in use for a long time
• Avoid use in a strong magnetic field environment
