Overview

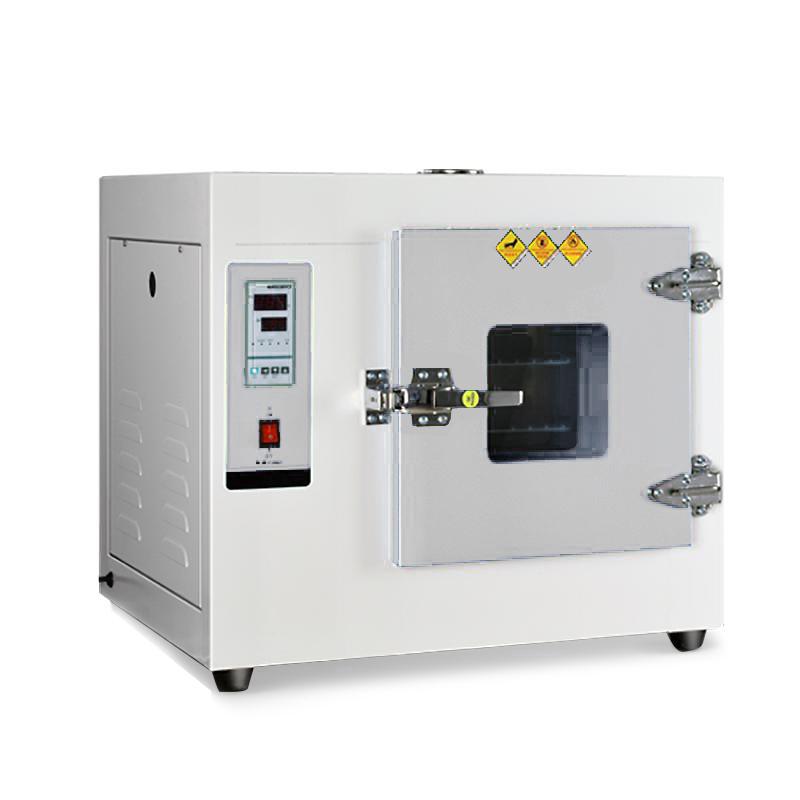

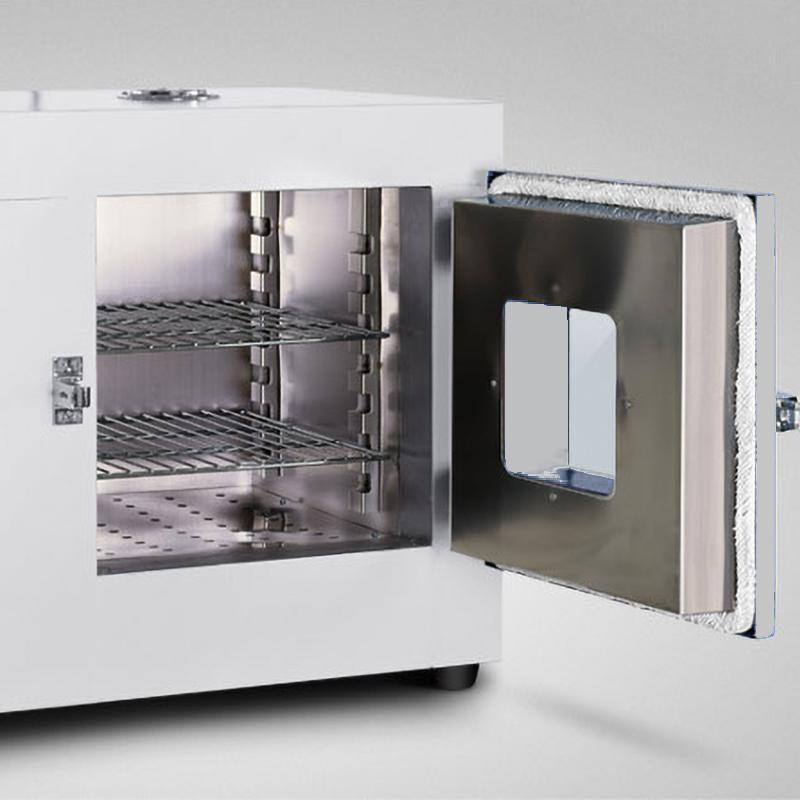

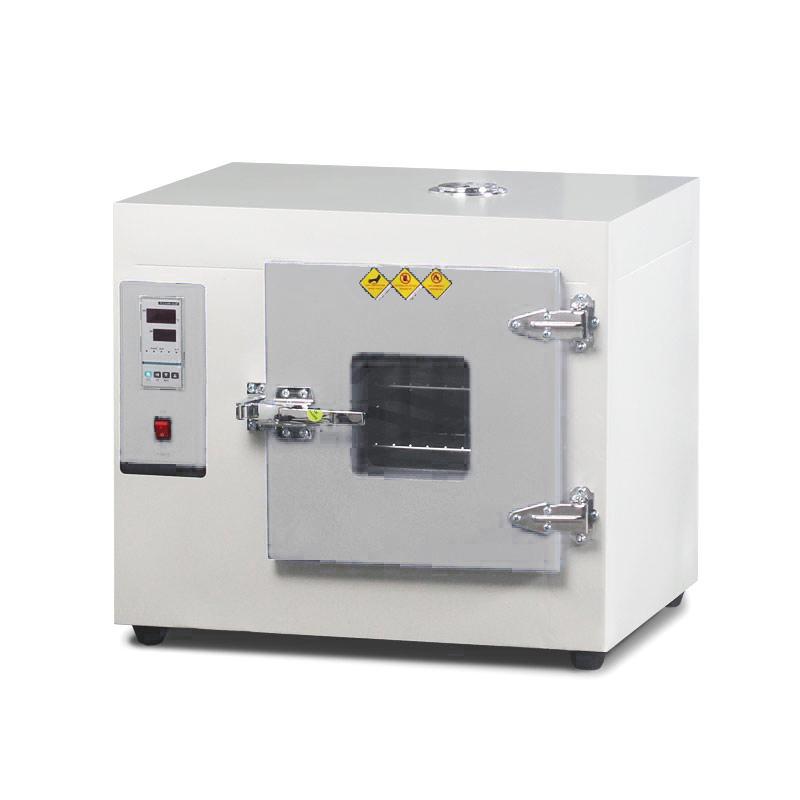

Kenton 101-0AS digital display electric air blowing dryer is a drying device with microcomputer intelligent PID digital display thermostat. Inner chamber dimensions are 350 × 350 × 350mm, Temperature range is RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Fluctuation +/- 1%. The shell is painted with metallic paint, the liner is made of stainless steel, and it is equipped with a hot air circulation system and a double-decked tempered Glass observation window.
Features
1. The thermostat can be selected from Dial or microcomputer smart PID digital display two types
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4. The liner is divided into two types: mirror stainless steel and galvanized steel
5. The height and number of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
Principle
The drying oven generates heat through electric heating elements, combined with the hot air circulation system composed of low-noise fans and air ducts, so that the temperature inside the studio is evenly distributed. The microcomputer intelligent PID thermostat precisely controls the temperature within the set range to realize heat treatment functions such as drying and baking.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Power on and set the desired temperature
2. Place the sample on an adjustable shelf in the studio
3. Close the box door and monitor the interior through the observation window
4. Start the equipment to start heating and blast circulation
5. Turn off the power after reaching the set time and take out the sample.
Notice
• It is not recommended to use it uninterrupted for a long time
• Temperature uniformity requirements and high water content samples are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
• Suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops
