Overview

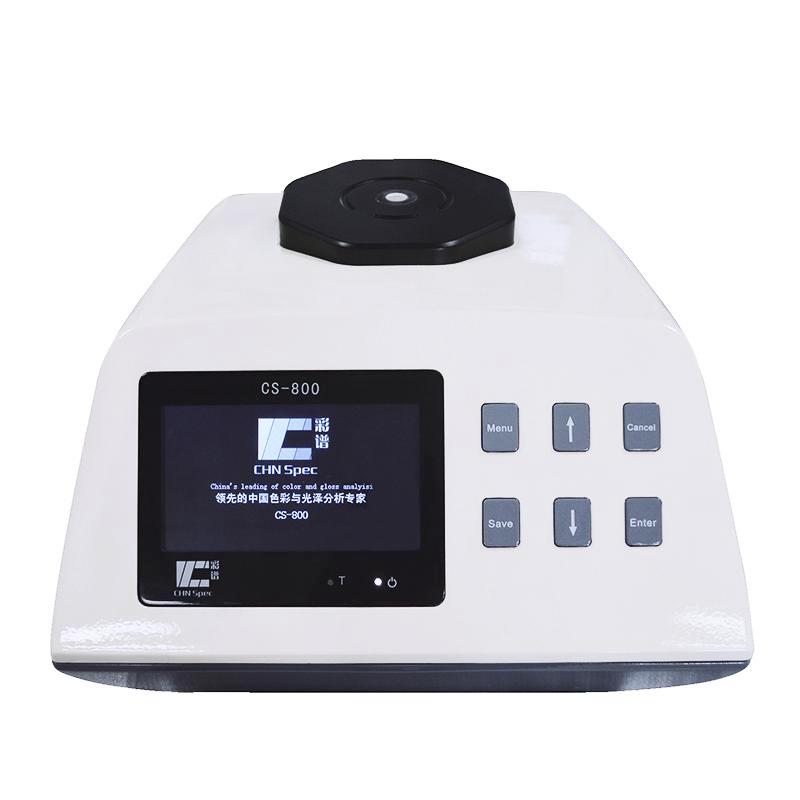

CHNSPEC CS-800CG Benchtop 45/0 Colorimeter is a precision Color measuring instrument with 45 ° annular illumination and 0 ° viewing angle structure. It is compatible with 60 ° gloss measurement. The test port is designed upward for easy measurement of various samples such as solids, particles, powders, pastes, etc. The standard Color management software supports data management and historical data comparison.
Features
Adopt 45/0 structure (45 ° ring illumination, 0 ° viewing angle), eliminate direction dependence, improve accuracy and repeability
2. Compatible with 60 ° gloss measurement, built-in High Accuracy Gloss Sensor
3. Test port facing up design, support solid, particle, powder, paste sample measurement
4. Comply with CIE, ISO, ASTM, DIN Color measurement standards
5. Color management software is standard to support data management and test report generation
6. Measurement verification of each instrument, Traceability to the National Institute of Measurement
7. Equipped with large capacity lithium battery, high resolution full color screen, USB/Bluetooth connection and micro printer
Principle
The instrument adopts 45/0 Optical inspection structure, irradiates the sample through a 45 ° ring illumination system, receives reflected light at a 0 ° observation angle, and conducts spectroscopic measurement with a high Sensitivity Silicon Photodiode Sensor. Built-in Gloss Sensor for simultaneous measurement of 60 ° gloss realizes simultaneous detection of Color and Gloss.
Applications
Color measurement of solid, granular, powder, paste objects such as plates, fabrics, tablets, Masterbatches, pigments, coffee, ketchup, etc
Standards
CIE-15-2004、ASTM-D523、ASTM-D2244、ASTM D2457
Steps
1. Place the sample on the test port (solid directly, granules/powders/pastes in the Cuvette)
2. Select measurement parameters through the instrument interface
3. Start the measurement program
4. View and save measurement data
5. Data management and report generation can be carried out through software
Notice
• Operating Ambient Temperature 0-45 ° C, relative humidity 80% or less (at 35 ° C)
• Avoid water condensation
• Ensure sample surface is clean before measurement
• Regularly calibrate the instrument
• Clean measurement caliber in time after use
