Overview

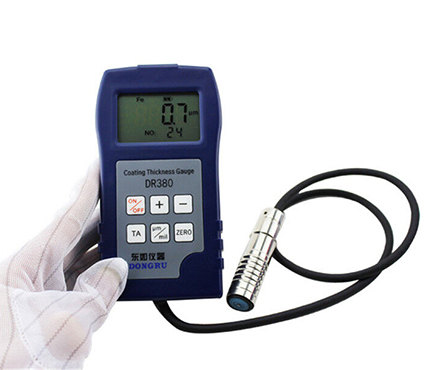

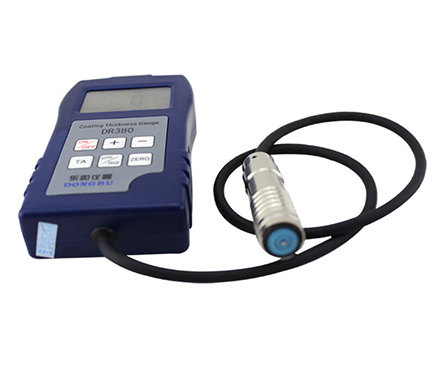

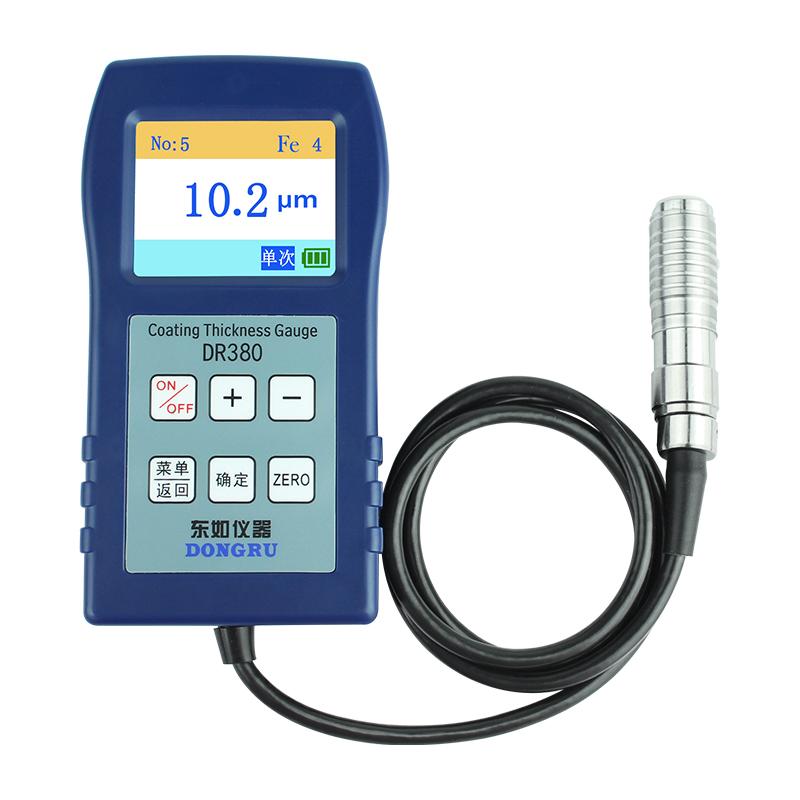

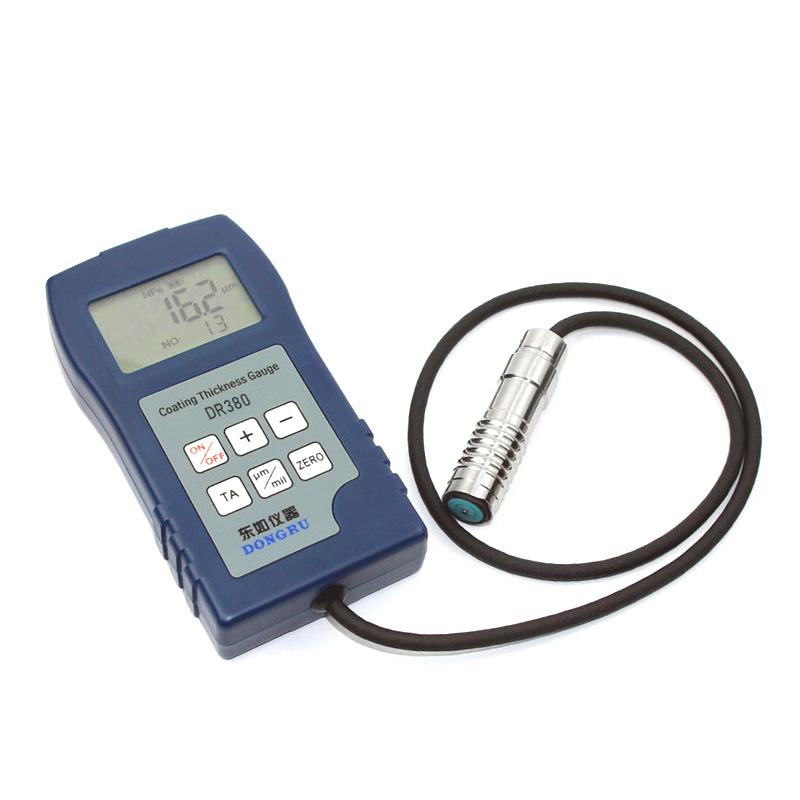

DONGRU DR380 Portable film thickness gauge is a magnetic eddy current dual-use Coating thickness gauge with fast measurement, high Sensitivity Probe, LCD screen, Data storage function and other characteristics. The instrument has a Measurement range of 0~ 1250 microns, an accuracy of +/- (1% -3%) H + 1.5μm. It adopts imported high-quality metal Probe, high Sensitivity, and supports continuous measurement and single measurement.
Features
1. Simple operation, Test speed, Sensitivity, Measurement accuracy
2. Using alloy Probe, durable and accurate
3. Imported 32-bit High Accuracy Processing Chip and high-speed data processing technology, temperature compensation technology
4. Measurement modes: continuous measurement and single measurement
5. With four statistical functions: MAX Maximum (MAX), MIN Minimum (MIN), Average (MEA), measurement number (No)
6. Large-capacity storage, which can be divided into 10 groups of 200 each, capable of storing a total of 2,000 data
7. Store data, view and delete function
8. Calibration methods: zero point calibrating, two point calibrating, multi point calibrating
9. Upper and lower limit alarm function (can be set in single Measurement mode)
10. The operation process is marked with a beep sound (in single Measurement mode)
11. Automatic identification of ferrous and non-ferrous substrates
12. Metric conversion μm/Mil
13. Sunshine mode (used under strong light)
14. Chinese and English bilingual version
15.2.3 inch large color screen large font display
16. Manual/automatic shutdown function
17. Bluetooth synchronous data transmission function (customized)
Principle
DR380 is a dual-use Portable film thickness gauge for measurement of different metal substrates. Using magnetic thickness measurement method, it can nondestructive measurement of the thickness of nonmagnetic coatings on magnetic metal substrates (such as steel, iron) (such as galvanized, chromium, imprisoned, enamel, rubber, powder, paints, Electrophoresis, enamel, anti-corrosion layer, Coating, etc.). At the same time, the eddy current thickness measurement method can be used for nondestructive measurement of the thickness of nonconductive coatings on nonmagnetic metal substrates (such as aluminum, copper, stainless steel) (such as paints, powders, plastics, rubber, enamel, enamel, Electrophoresis, anti-corrosion layer, spray layer, etc.).
Applications
Magnetic metal substrate nonmagnetic coating measurement, nonmagnetic metal substrate nonconductive coating measurement
Steps
1. Measurement mode: continuous measurement or single measurement
2. Calibrate: choose zero point calibrate, two point calibrate or multi point calibrate
3. Automatically identify the substrate material: iron-based or non-iron-based
4. Start measurement: Probe placed on the surface of the test object
5. View results: LCD display thickness value
6. Data storage: can be divided into 10 groups, each group of 200 data
7. Statistical function: MAX Maximum, MIN Minimum, Average and measurement times can be viewed
8. Unit conversion: Switch between μm or Mil as needed
9. Shutdown: manual or automatic shutdown
Notice
• Use in relative humidity 20~ 90% RH and no strong magnetic field environment
• Operating temperature range 0~ 50 ℃
• Minimum measurement surface is φ 16mm
• Minimum radius of curvature: convex 5mm, concave 25mm
• The thinnest substrate is 0.3mm.

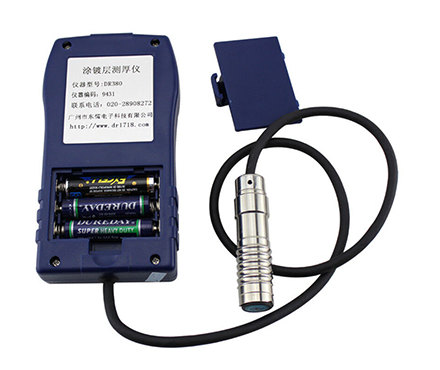

• Powered by three (7) alkaline batteries
• Measurement mode can set the upper and lower limit alarm function
• Measurement mode, the operation process is marked by a beep
