Overview

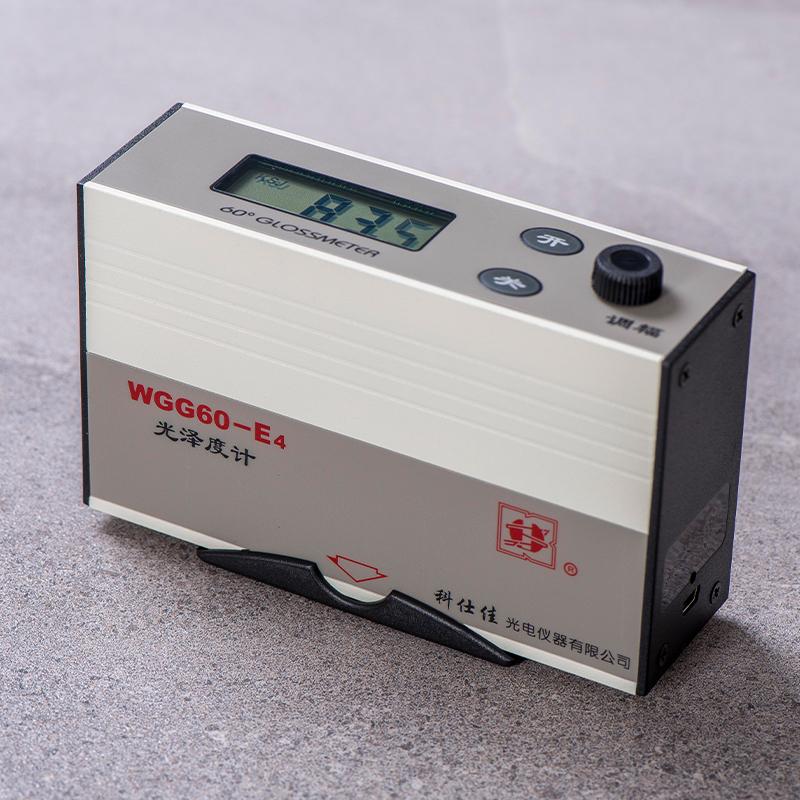

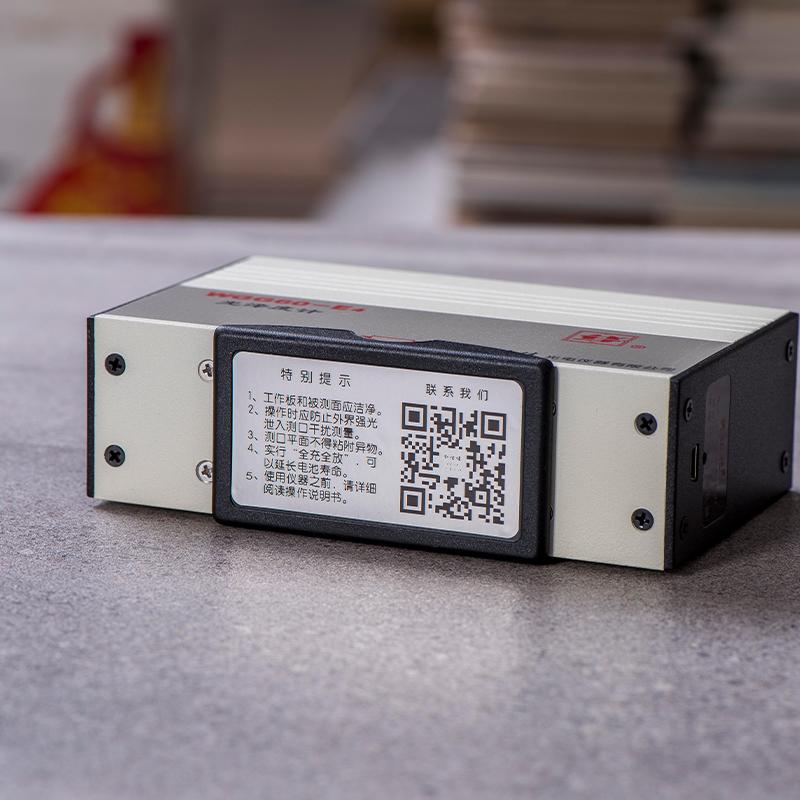

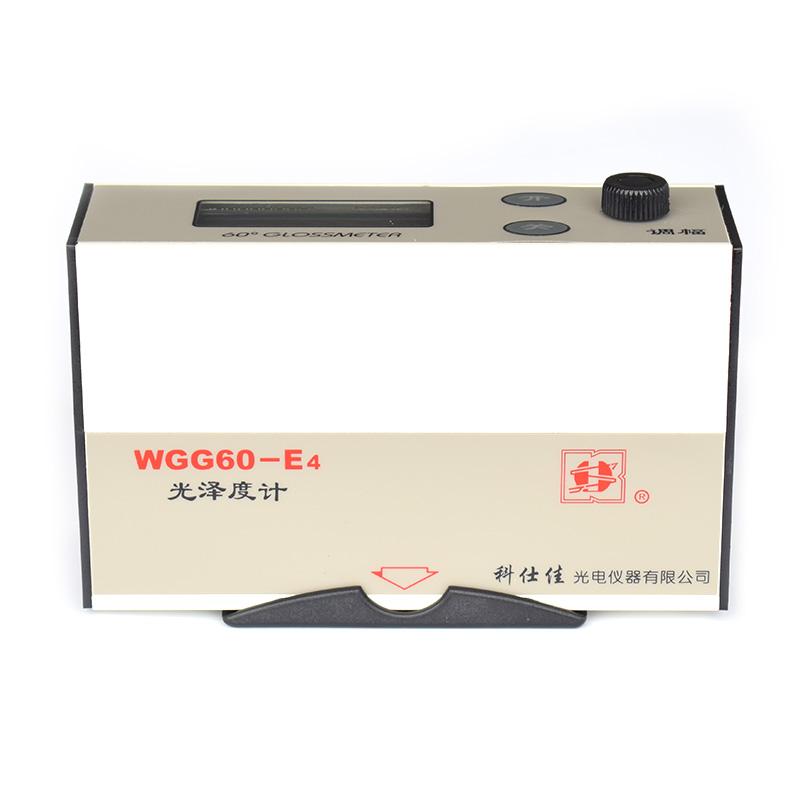

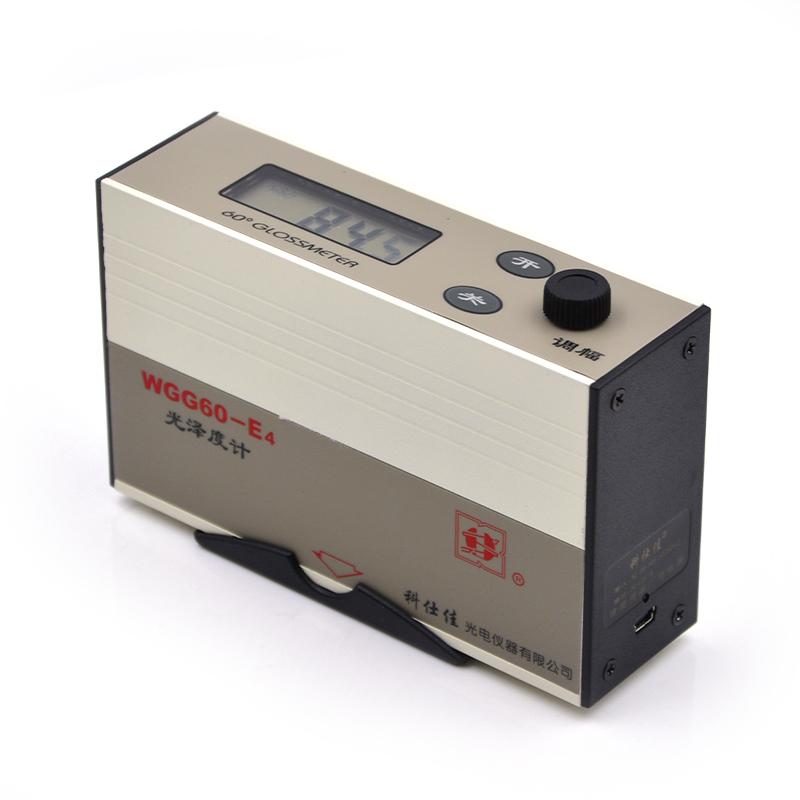

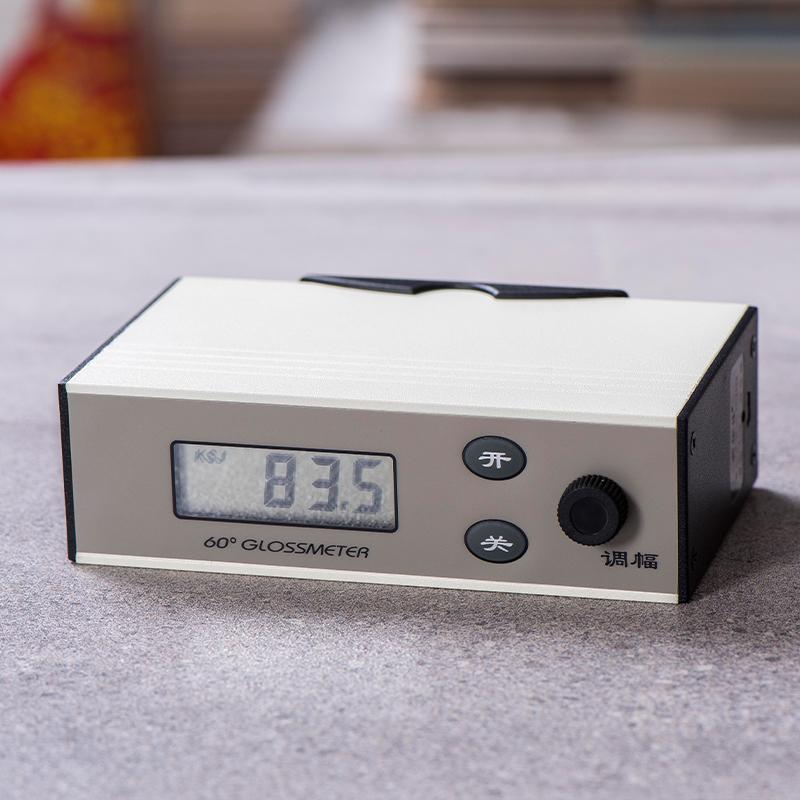

The KSJ WGG60-E4 Gloss Meter is a palm-sized, portable instrument with a built-in rechargeable battery pack. It can be used for more than 24 hours on a single charge.
Features
1. Palm size, easy to carry
2. Built-in rechargeable battery pack, long battery life
3. Measurement Angles 60 °, Measurement range 0~ 199.5GU
4. Measuring Area 18 * 36mm, Indication Error +/- 2GU
5. Graduation 0.5GU, reading range 0~ 199.9GU
6. Zero Error 0.5GU, Stability 1GU
7. Dimension 130 * 40 * 80mm, weight 430g
8. Operating Time Continuous Use Time > 48h
Principle
The Gloss Meter performs Gloss measurement on the surface of the material through 60 ° Measurement Angles, with a Measuring Area of 18 * 36mm. Optical inspection system detects the reflected light intensity of the surface and converts it into Glossiness value display.
Applications
Paints, Paints, Coatings, inks, Building Decoration Materials, Marble, Granite, Vitrified Polished Tiles, Ceramic Tiles, Plastics, Paper, Bamboo, Various Other Non-metallic and Metallic Materials Surface Gloss measurement
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Steps
1. Power on and prepare the instrument
2. Align the measurement port to the surface to be measured
3. Perform gloss measurements
4. Read the displayed Glossiness value
5. Shut down after use
Notice
• Ensure the measurement surface is clean and drying
• Avoid use in a strong light environment

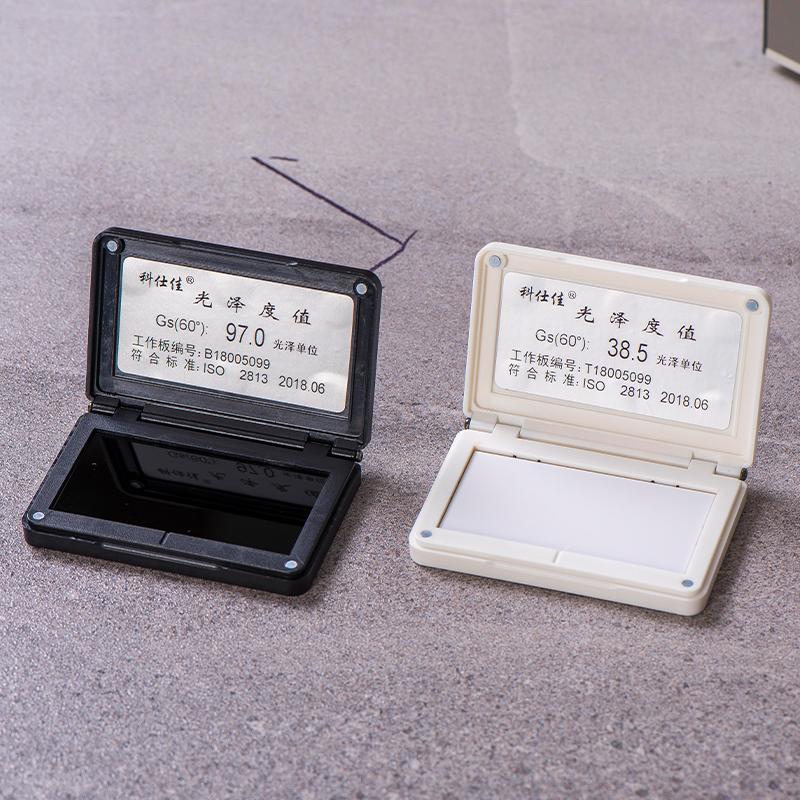

• Regularly calibrate instruments to ensure Measurement accuracy
• Use the matching charger when charging, Charging time 14~ 16 hours
• Avoid severe impact or vibration of the instrument
