Overview

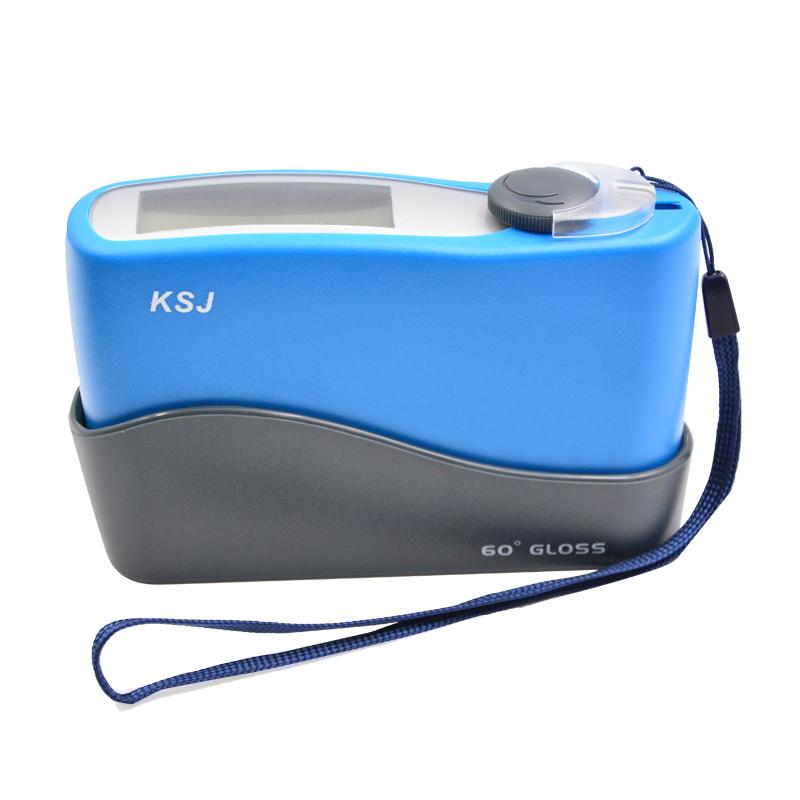

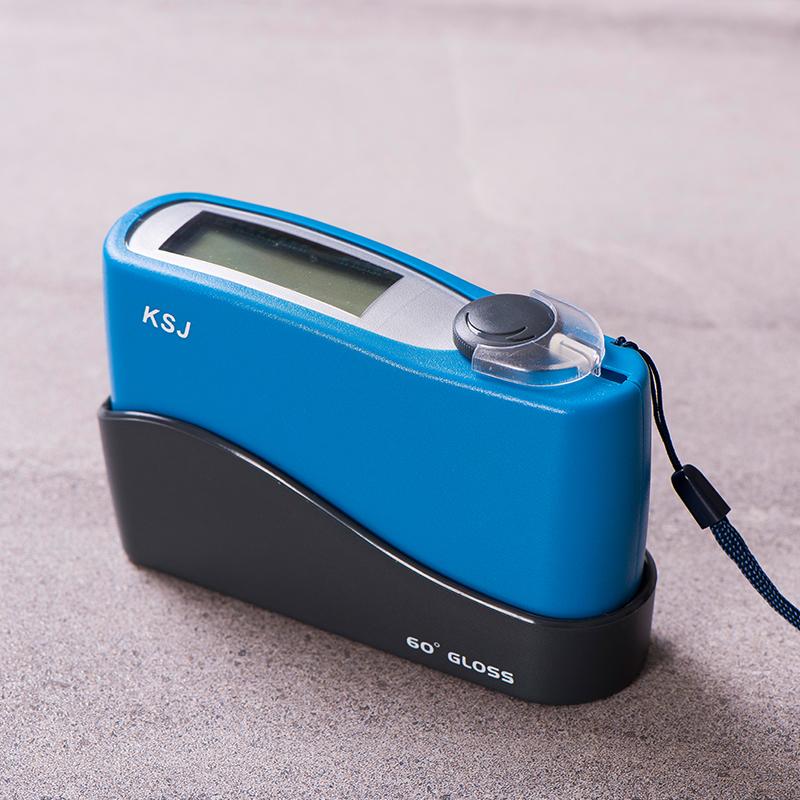

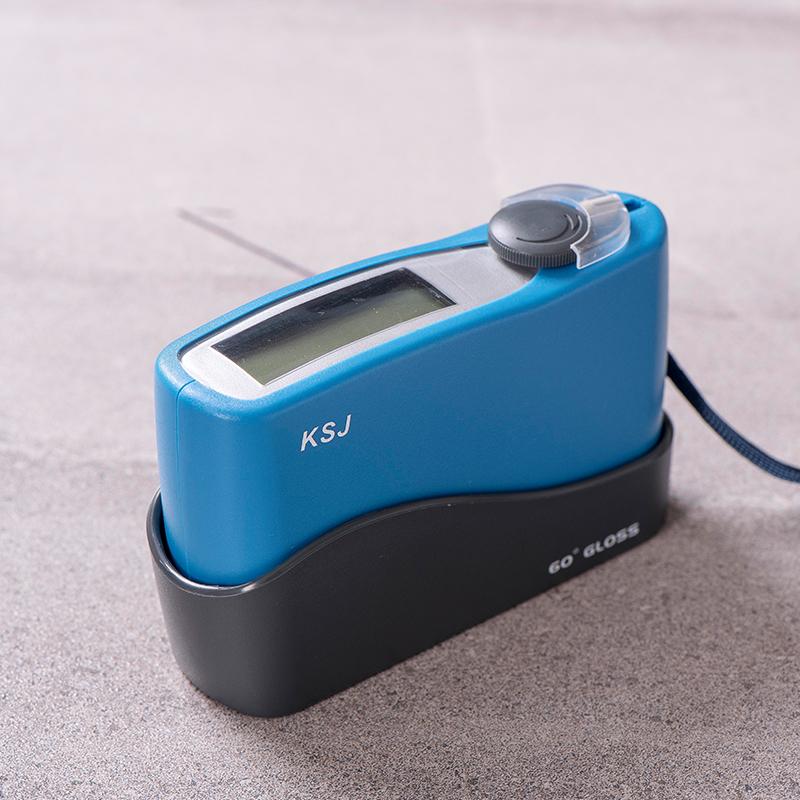

The KSJ MG6-SM Gloss Meter is a Portable Gloss measuring instrument with an integrated design that is ready to use and easy to carry. Compact in size, beautiful in appearance, stable in performance, and easy to use, it is suitable for Gloss measurement of various metal and Non-metallic materials and their coated surfaces.
Features
1. A single AA alkaline battery or rechargeable battery is equally easy to use, low energy consumption, a single AA alkaline battery can last for more than 58 hours.
2. The whole set of instruments is designed in one piece, ready to use, easy to carry.
3. Special adjustment button protective cover, operation is more assured.
4. Anti-scratch coating treatment of the measuring port to prevent scratching the tested object.
5. Small size, Appearance beautiful, stable performance, easy to use.
Principle
Gloss Meter evaluates Glossiness by measuring the intensity of specular reflected light on the surface of the material, using 60 ° Measurement Angles, the light spot size is 10 * 20mm, and the Measurement range covers 0~ 999GU to ensure accurate reflection of the Gloss characteristics of the measured surface.
Applications
Gloss measurement, mirror polishing, coating of various metal and Non-metallic materials and their coated surfaces
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Steps

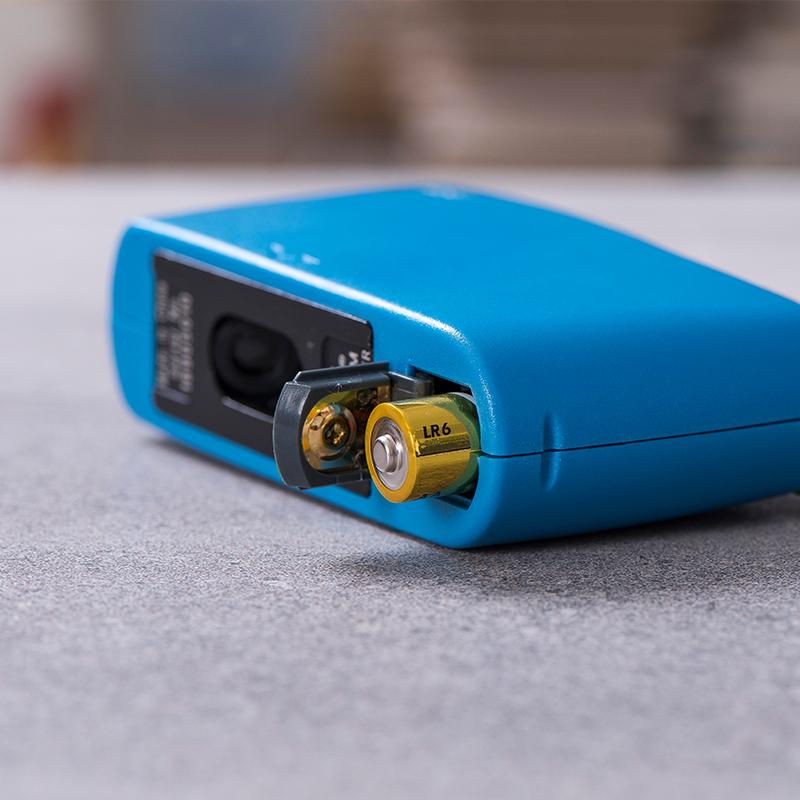

1. Load a single AA alkaline or rechargeable battery.
2. Turn on the instrument power supply.
3. Align the measurement port with the surface of the measured object for measurement.
4. Read the Glossiness value on the display.
Notice
Make sure the battery is fully charged before use to ensure Measurement accuracy and Stability.
• Pay attention to the adjustment button protective cover when operating to avoid accidental touch.
• The measurement port adopts anti-scratch coating, but it still needs to be handled with care to prevent damage to the surface of the test object.
• When the instrument is not in use, it is recommended to shut down to save power.
• Regularly check instrument performance to ensure compliance with metrology standards.
