Overview
The KSJ MG6-FS Microporous Gloss Meter is a Portable Gloss measuring instrument with a complete set of instrument design, ready to use and easy to carry. The instrument is small in size, beautiful in appearance, stable in performance, and easy to use. It is suitable for Gloss measurement of facet surfaces and small curvature curved surfaces on various materials and objects.
Features
1. Single AA alkaline batteries or rechargeable batteries are equally easy to use.
2. Low energy consumption: A single No. 5 alkaline battery can last for more than 58 hours.
3. The whole set of instruments is designed in one piece, ready to use, easy to carry.
4. Special adjustment button protective cover, operation is more assured.

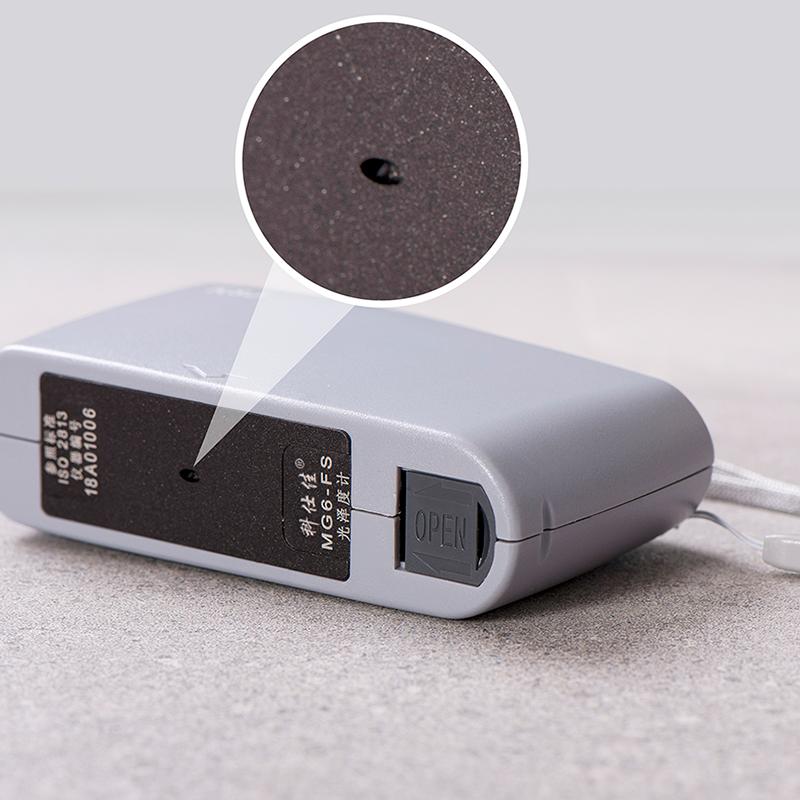

5. Anti-scratch coating treatment of the measuring port to prevent scratching the tested object.
6. Small size, Appearance beautiful, stable performance, easy to use.
Principle
The instrument emits beams of light through 60 ° Measurement Angles, Measuring Area is 1.5 * 3mm, measurement port size is 2 * 4mm, gloss measurement on the material surface, Measurement range 0~ 199.9GU, Graduation 0.1GU.
Applications
Gloss measurement on the surface of paints, paints, coatings, inks and other coating materials, Gloss measurement on the surface of Stone, ceramic tiles, profiles and other building decoration materials, Gloss measurement on the surface of paper, bamboo, wood, plastic, film and other surfaces, Gloss measurement on the surface of other materials
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Steps
1. Install a single AA alkaline battery or rechargeable battery.
2. It can be used after booting.
Notice
• Use a single AA alkaline battery or rechargeable battery.
• Pay attention to the anti-scratch coating of the measuring port during measurement to prevent scratching the tested object.
• The adjustment button has a protective cover, please do not forcibly remove it during operation.
