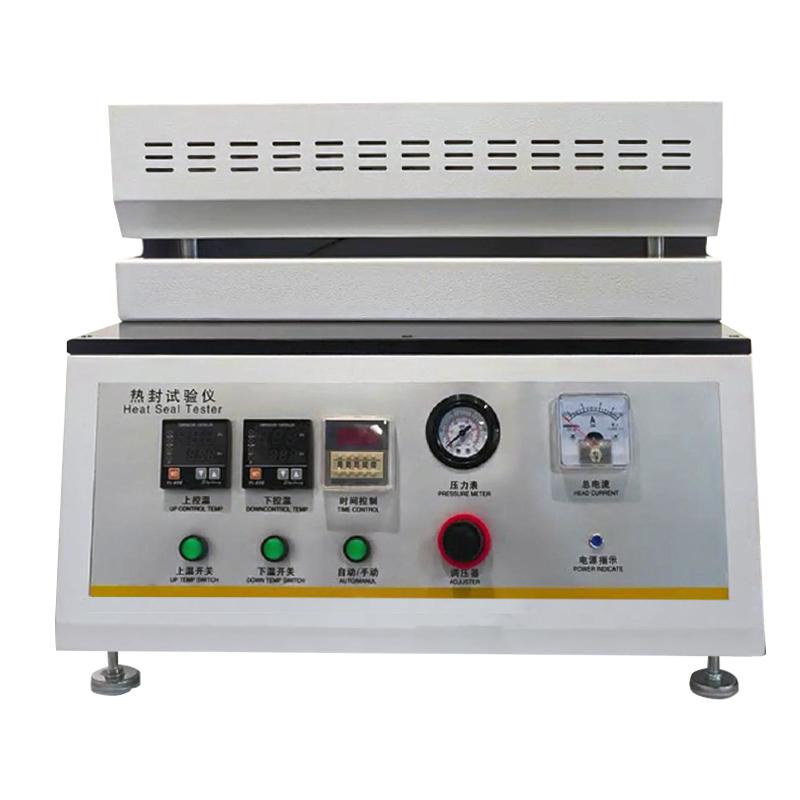

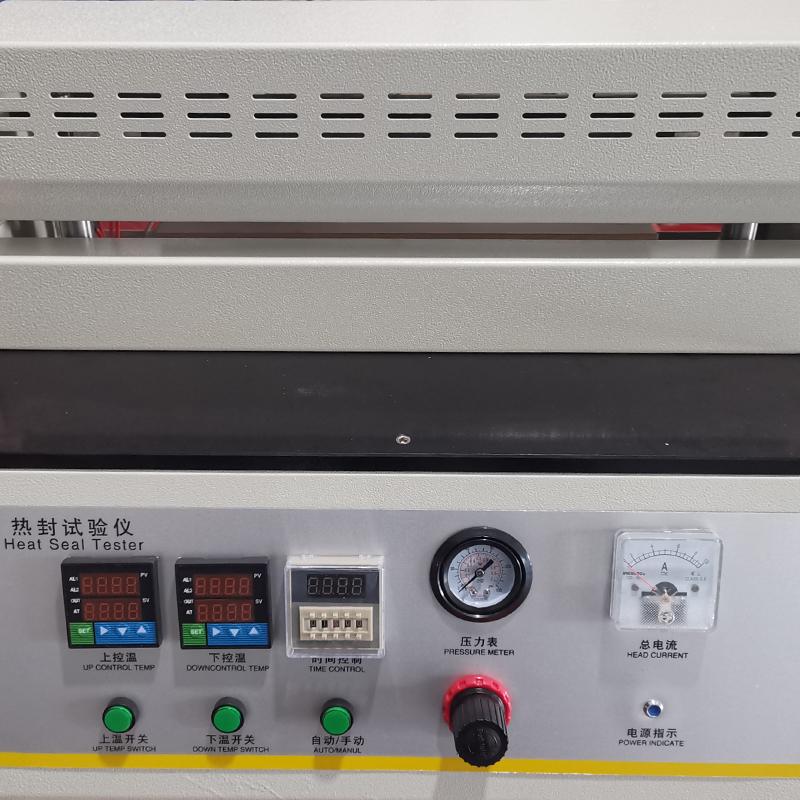

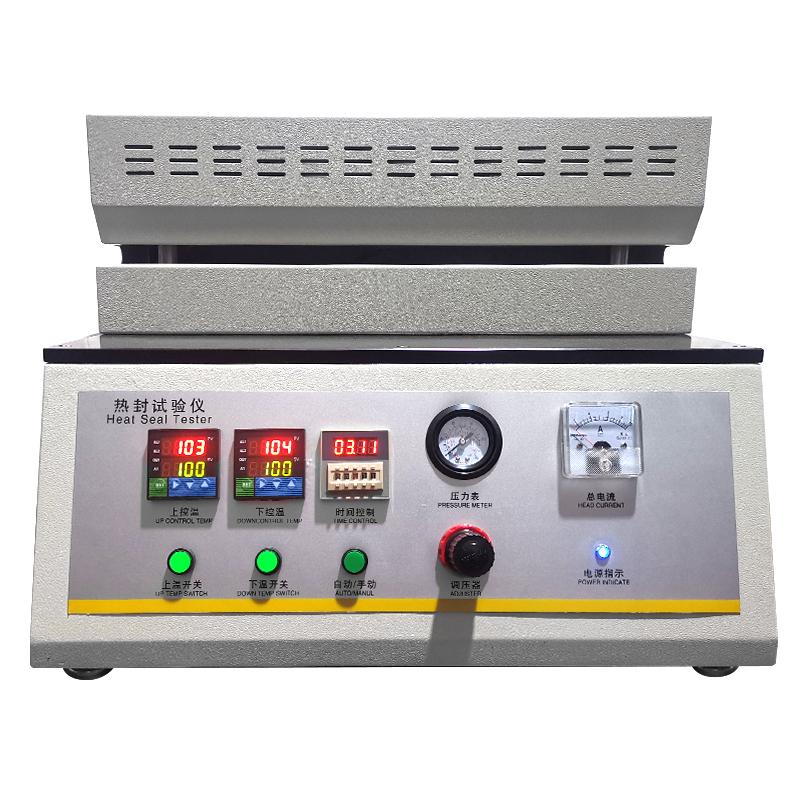

Overview
Plastic film substrate, Soft Encasement composite film, Spreader paper and other heat sealing composite film heat sealing temperature, heat sealing time, heat sealing pressure and other parameters. Through standardized design and standardized operation, accurate heat sealing test indicators can be obtained.
Features
1. Digital P.I.D. temperature control, automatic timing
2. Manual and foot pedal two test start modes
3. Independent temperature control of upper and lower heat heads
4. Aluminum potting average temperature heating tube
5. Quick-pull plug-in heating tube power connector
6. Anti-burn safety design
Principle
Plastic film substrate, Soft Encasement film, Spreader paper and other heat sealing films were tested for heat sealing performance by controlling the heat sealing temperature, heat sealing time and heat sealing pressure.
Standards
QB/T 2358(ZBY 28004)、ASTM F2029、YBB 00122003
Steps
1. Select manual or pedal start mode
2. Set the heat seal temperature, heat seal time and heat seal pressure parameters
3. Place the sample between the heat heads
Step 4 Start the heat sealing process
5. Remove the sample after the automatic timing is completed
Notice
• Pay attention to anti-burn safety design
• Power frequency AC 220V 50Hz
• Heat sealing pressure must not exceed 0.7MPa
• Check the connection status of the heating pipe power connector before use
