Overview

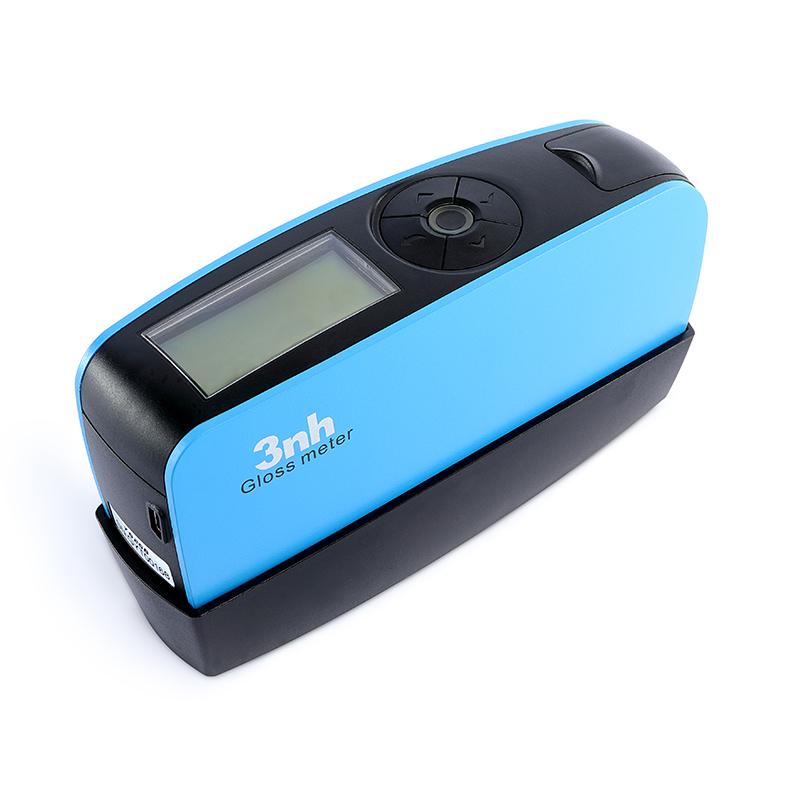

YG268 Three-angle High Accuracy Glossiness Meter is a gloss measurement instrument designed and manufactured with reference to international standard ISO2813 and Chinese national standard GB/T9754. It has the function of automatic inspection and correction of standard boards and is equipped with high-end quality management software to meet the requirements of JJG696 first-level work Glossiness Meter.
Features
1. Aesthetic surface design is closely integrated with ergonomics

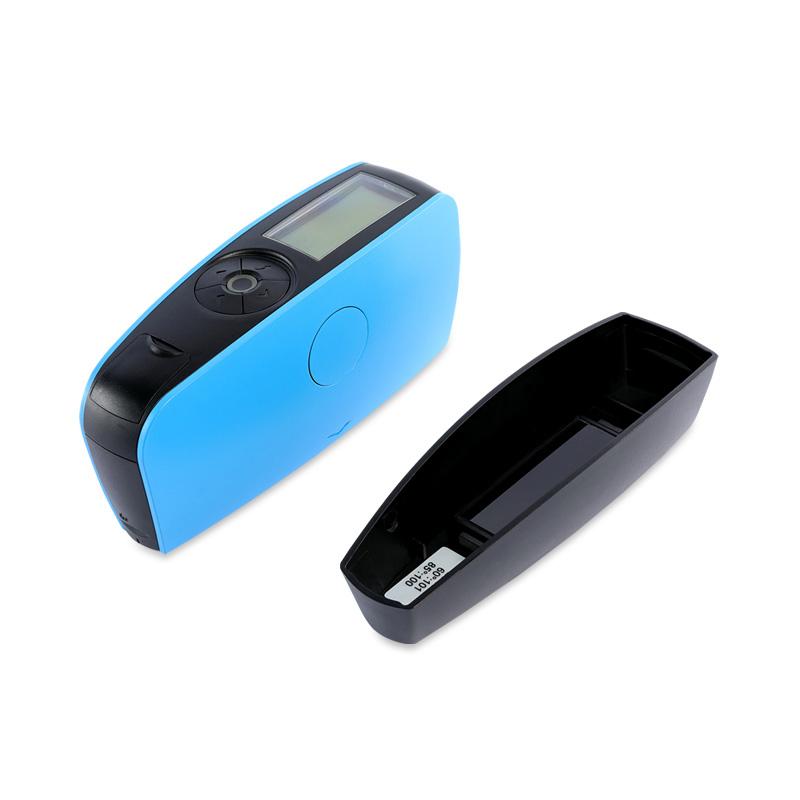

2. With the function of automatically checking and correcting the standard board
3. Meet JJG696 level 1 glossmeter requirements
4. Large storage space, can store 35000 measurement data
5. With automatic shutdown function, 30 to 120 seconds can be freely selected
6. Comply with standards ISO2813, ASTMD523, GB/T9754
7. Equipped with quality management software, can print Quality control report, realize more function expansion
8. Multiple Operating Modes, Multiple Function Settings, Can Meet Different Needs of Customers
Principle

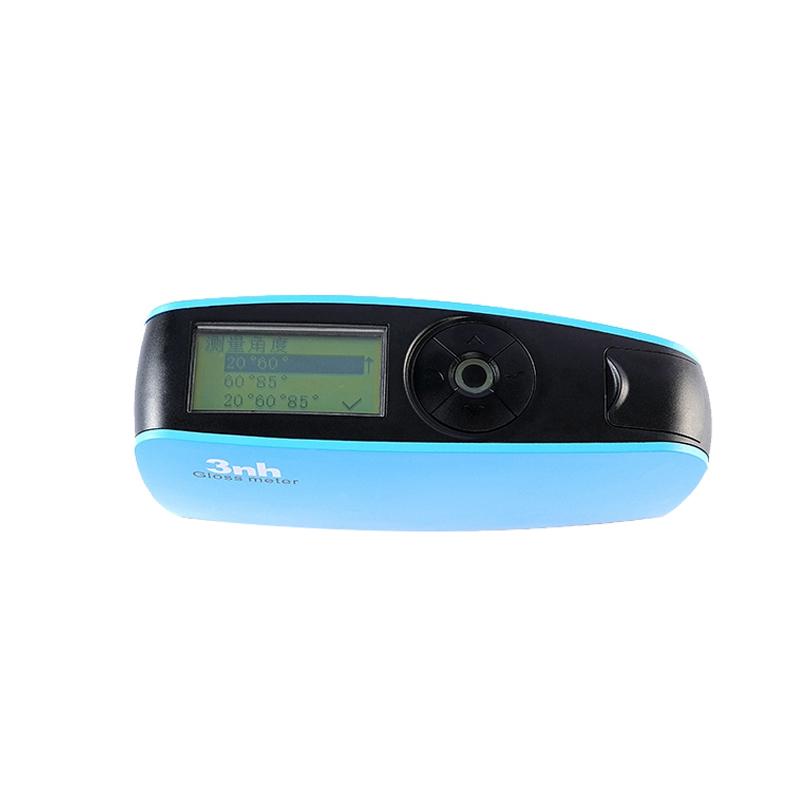

The YG268 Glossiness Meter performs gloss measurement on the sample surface through three Measurement Angles of 20 °/60 °/85 °. The Measuring Area size is 9 * 10mm (20 °), 9 * 15mm (60 °) and 5 * 38mm (85 °), the measurement range covers 0~ 2000GU, and the Optical inspection measurement principle is used to achieve High Accuracy gloss detection.
Applications
Paints inks, paints, paper printing, plastic electronics, furniture, Pottery and porcelain, Eletroplating, Hardware, Marble
Standards
ISO2813, ASTMD523, GB/T9754, JJG696 Glossiness Meter
Steps
1. Automatic inspection and calibrating or manual calibrating
2. Select measurement mode: basic mode, statistical mode, continuous mode or quality control mode

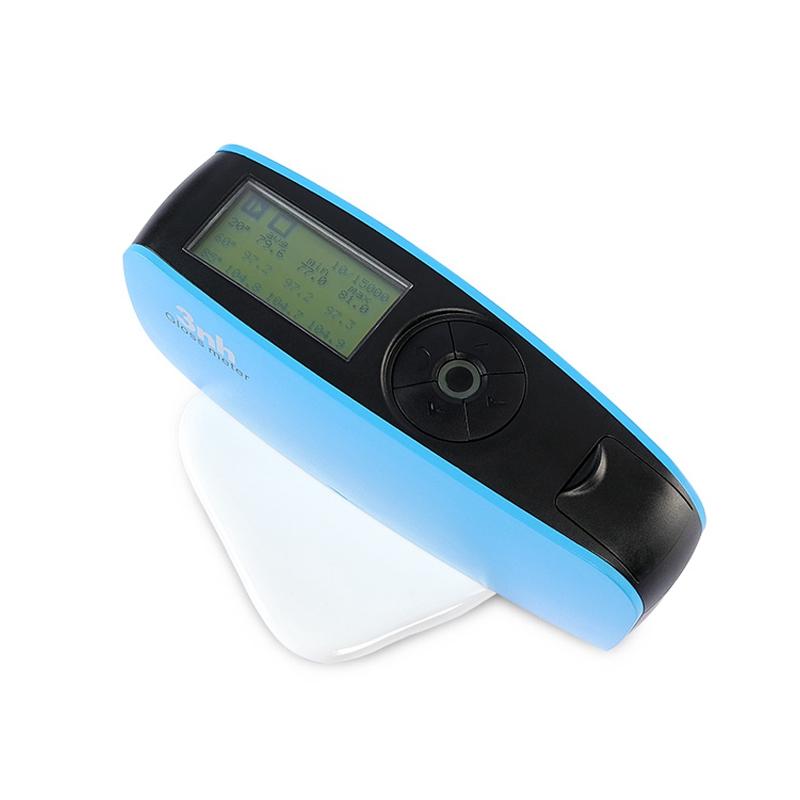

3. Align the instrument measurement head to the surface of the sample to be tested
4. Perform measurement, the measurement time is about 0.5 seconds
5. View measurement results and store data
6. Connect to the computer using USB or Bluetooth, and perform data analytics through GQC6 quality management software
Notice
• operation temperature range is 0~ 40 ℃, storage temperature is -20~ 50 ℃
• relative humidity should be less than 85% RH, no condensation
• Powered by 1 AA alkaline battery or NiMH rechargeable battery or USB port
• Automatic shutdown time can be freely selected within the range of 30 to 120 seconds
• The data storage capacity is 35,000 pieces, and different storage spaces are allocated in different modes
